30 SCU200 INSITE ENERGY MANAGEMENT SYSTEM

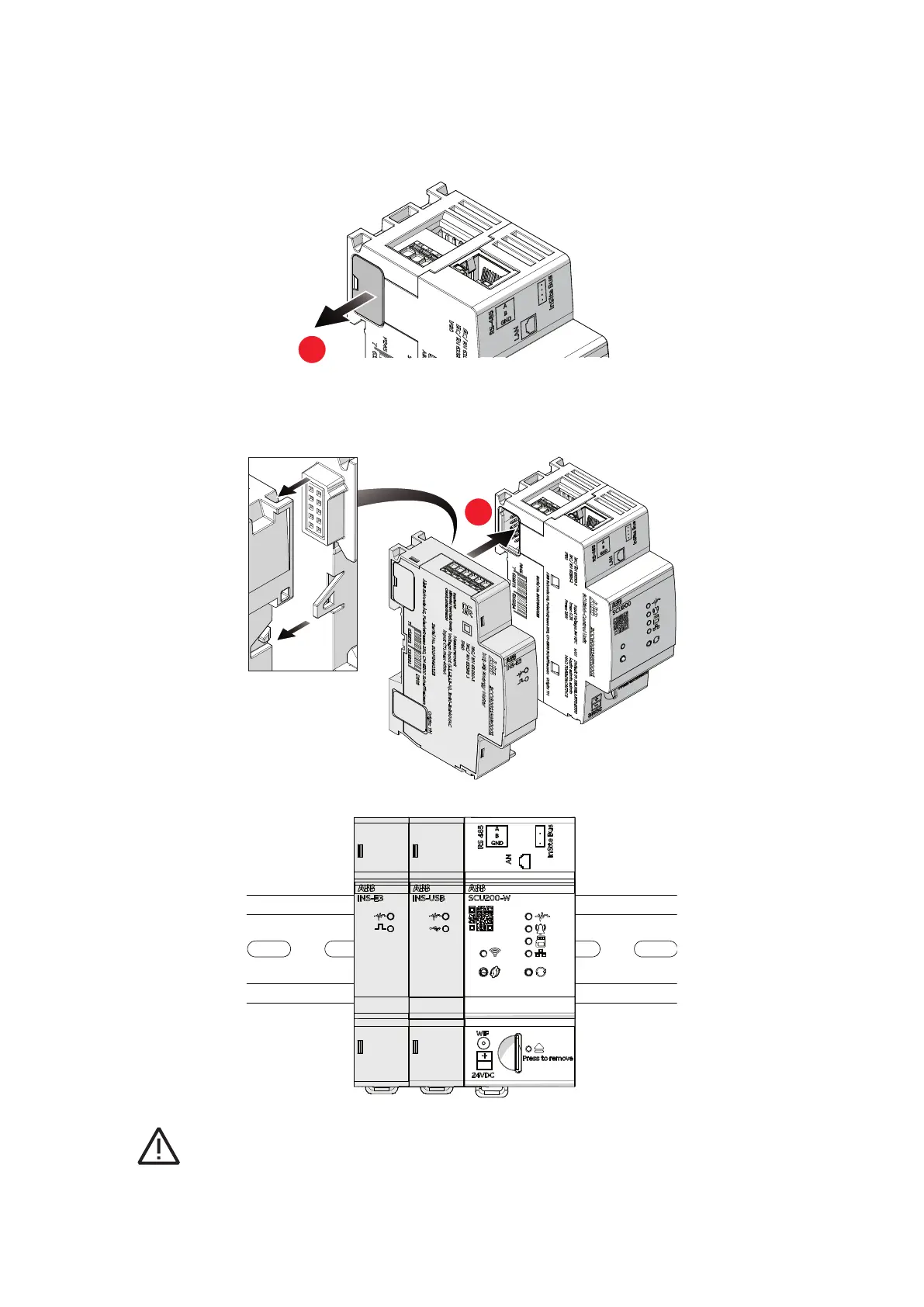

• Connection to InSite expansion modules
To connect expansion modules, remove the flap covering the input connectors of SCU200
and insert the connector plug placed on the right side of the InSite expansion module. Put attention to
the correct interlocking between modules.
Attention: In case one or more expansion modules have to be added to SCU200 / SCU200-W plug them all
first before assemblying on DIN-Rail bar.
The connection of modules and assembly on DIN RAIL is done in the same way. It is suggested to connect
the modules before mounting them on DIN RAIL.
