E-OCD II Debugger User’s Manual Debugger Software (for Microsoft Windows)
55
Double-clicking on the Mnemonic area of a line allows you to modify the assembly code. Once you
modify the code, click Modify.

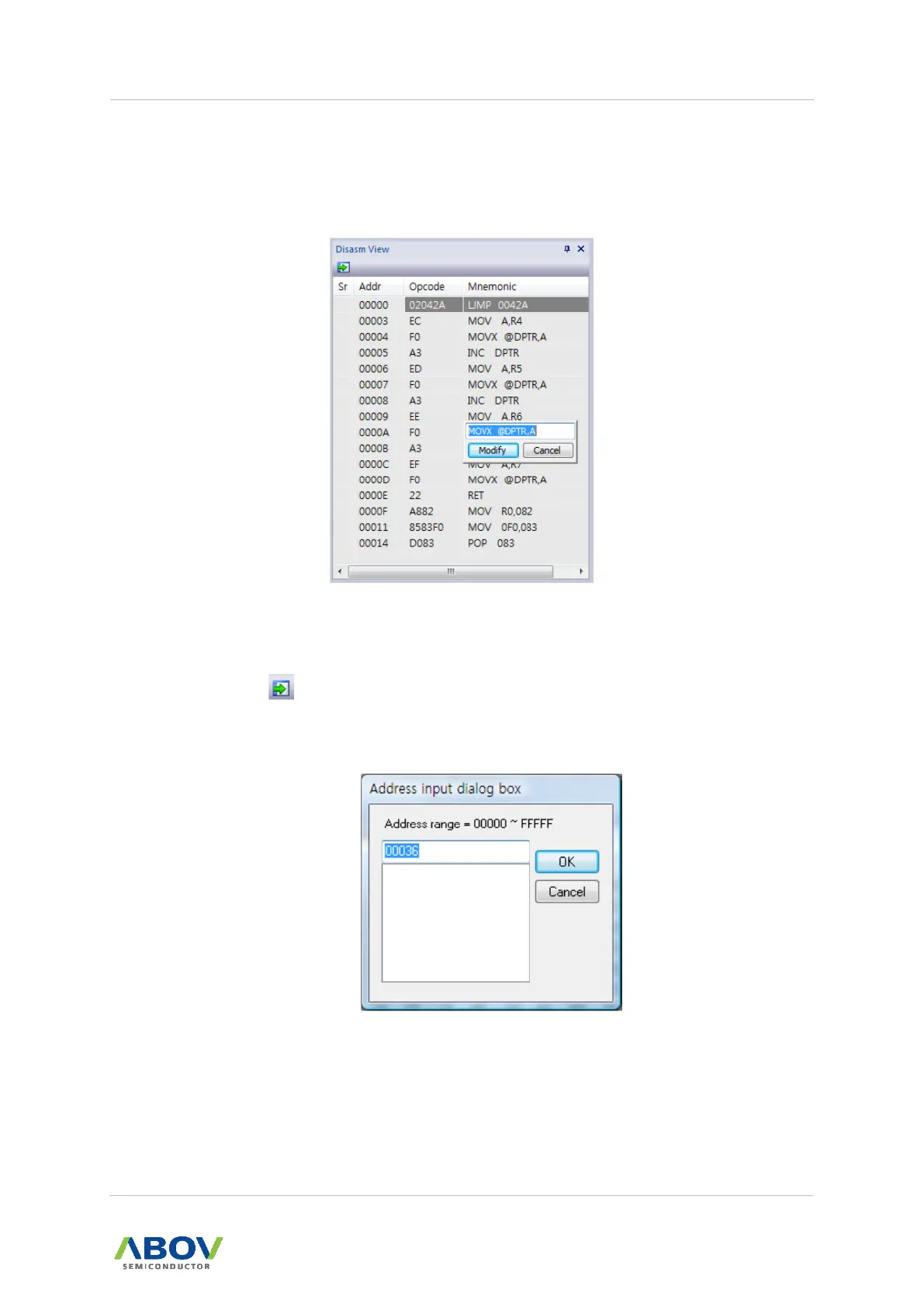

Figure 3-59 Modifying the Assembly Code
1) Move button ( )
: Move the display address and caret position by typing. Address range is 0x00000 through
0xFFFFF (1 MB).
Figure 3-60 Address Input Dialog
