Abov E-OCD II - Adding Flash Control to Project

E-OCD II Debugger User’s Manual Keil Plug‐in
79
4.2.2 Add Flash Control to Your Project
Set your project options as shown in the following dialog box. Now, you can erase, read, or write the
code to your target MCU.
If you are not using code banking, use ‘ABOV E-OCD II Dongle.

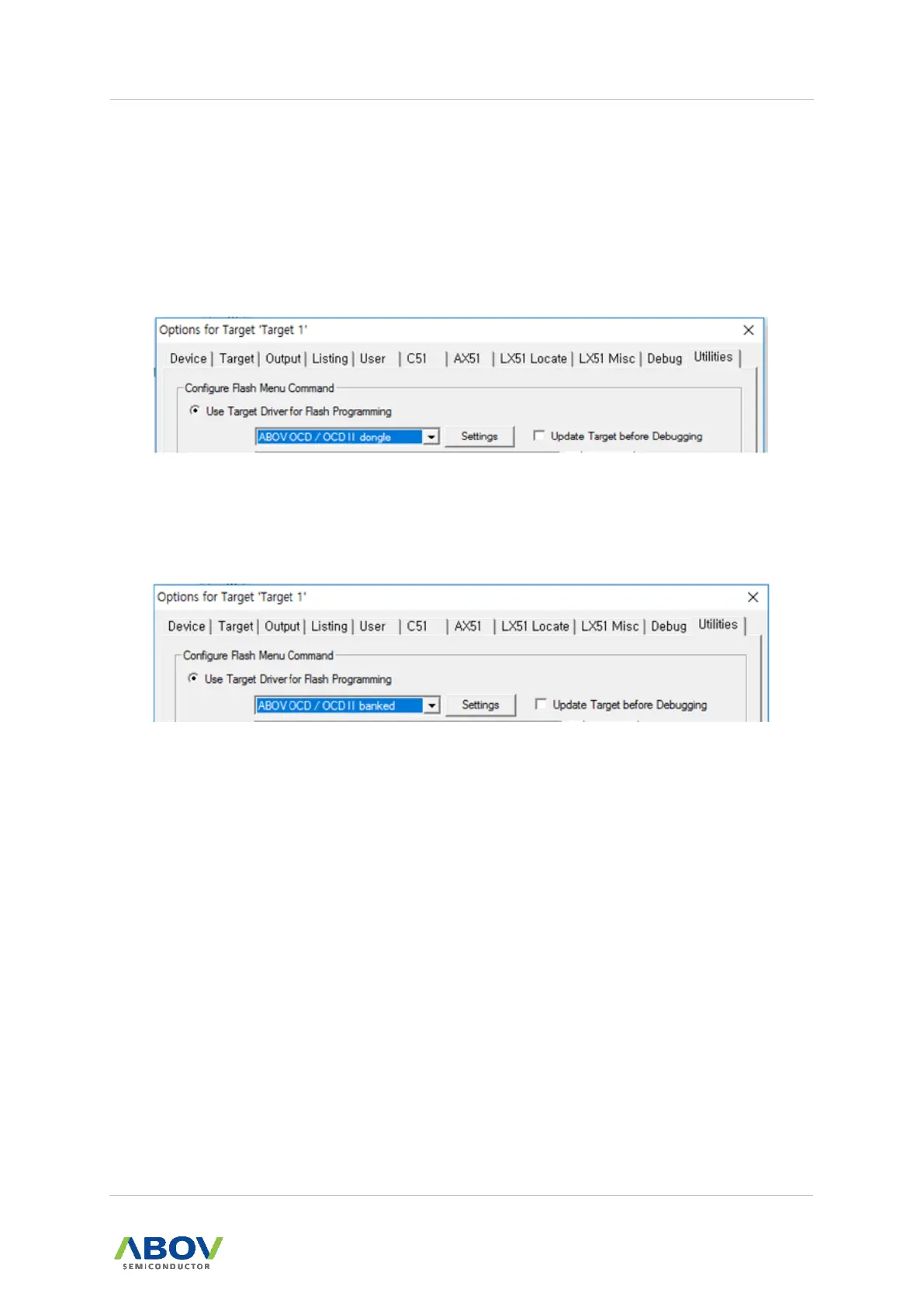

Figure 4-2 ABOV E-OCD II Dongle
If you are using code banking, use ‘ABOV E-OCD II banked.
Figure 4-3 ABOV E-OCD II Banked
