Debugger Software (for Microsoft Windows) E-OCD II Debugger User’s Manual
42
3.3.24 Power Out (3.3V or 5.0V)
E-OCD II has two types of voltage output : 3.3V, 5.0V
User can select the power output voltage with a switch on the side of the E-OCD II
When Pressing the power icon in the PC program – as shown below picture, The E-OCD II can be
selected voltage switch out is on and the voltage selected by switch is output.

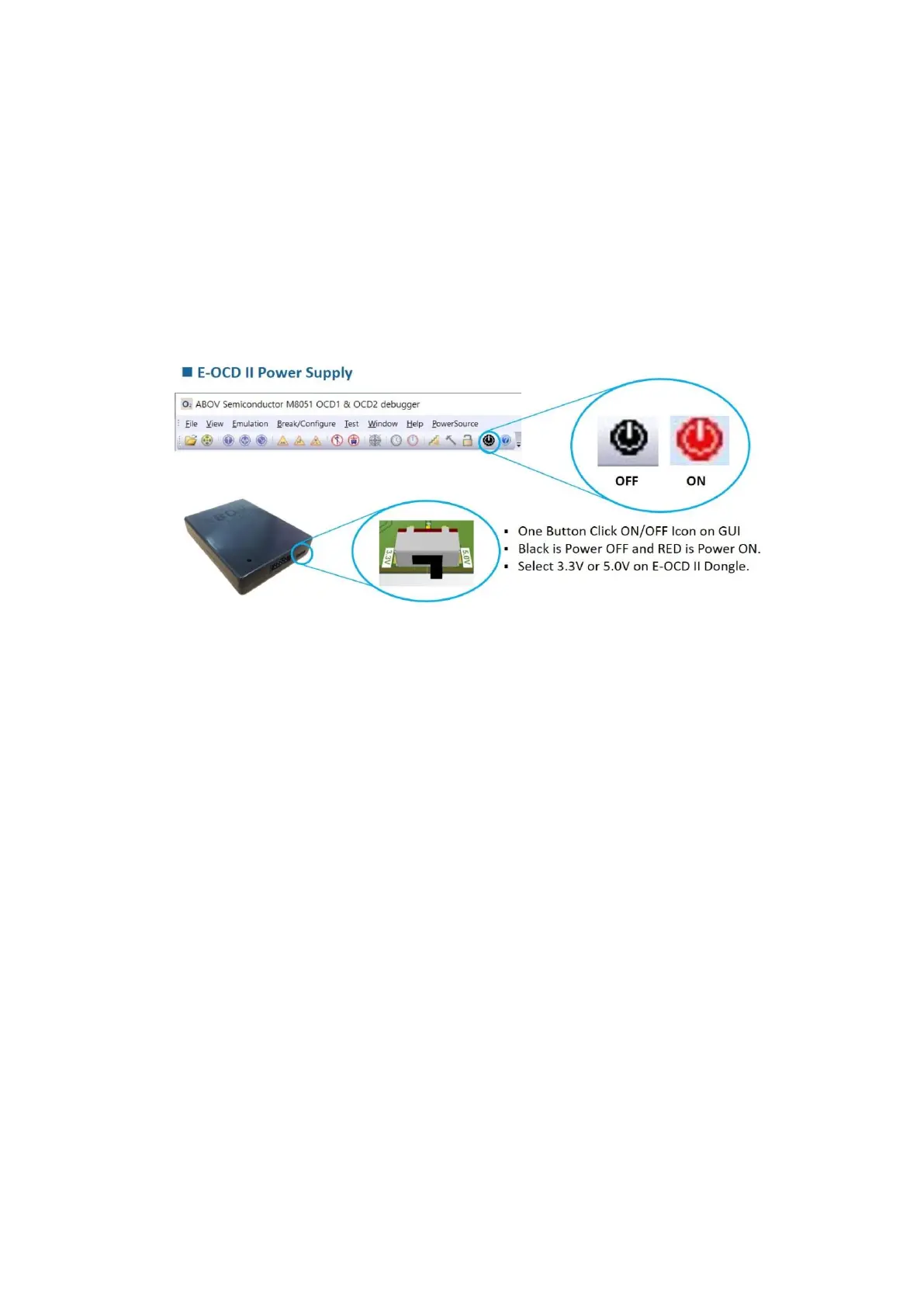

Figure 3-34 E-OCD Power Supply
1) The ‘power icon’ is black off when the E-OCD II is first connected to the PC
2) When the ‘power icon’ is selected the icon color is changed and the power voltage is output.
The output voltage can be changed from E-OCD II switch (3.3V or 5.0V)
3) The dialog window for the warning about current
4) Device is recognized successfully if it has a good connection with target board.
Precautions for E-OCD II debugger
1) E-OCD II has two power outputs. 3.3V and 5.0V
2) The power voltage is selected with the side switch.
3) When pressing the power icon in the PC program, the power is on.
4) The power output current can only be up to 100mA, but may be lower than that, depending
on the circumstances.
