Abov E-OCD II User Manual

Debugger Software (for Microsoft Windows) E-OCD II Debugger User’s Manual
72

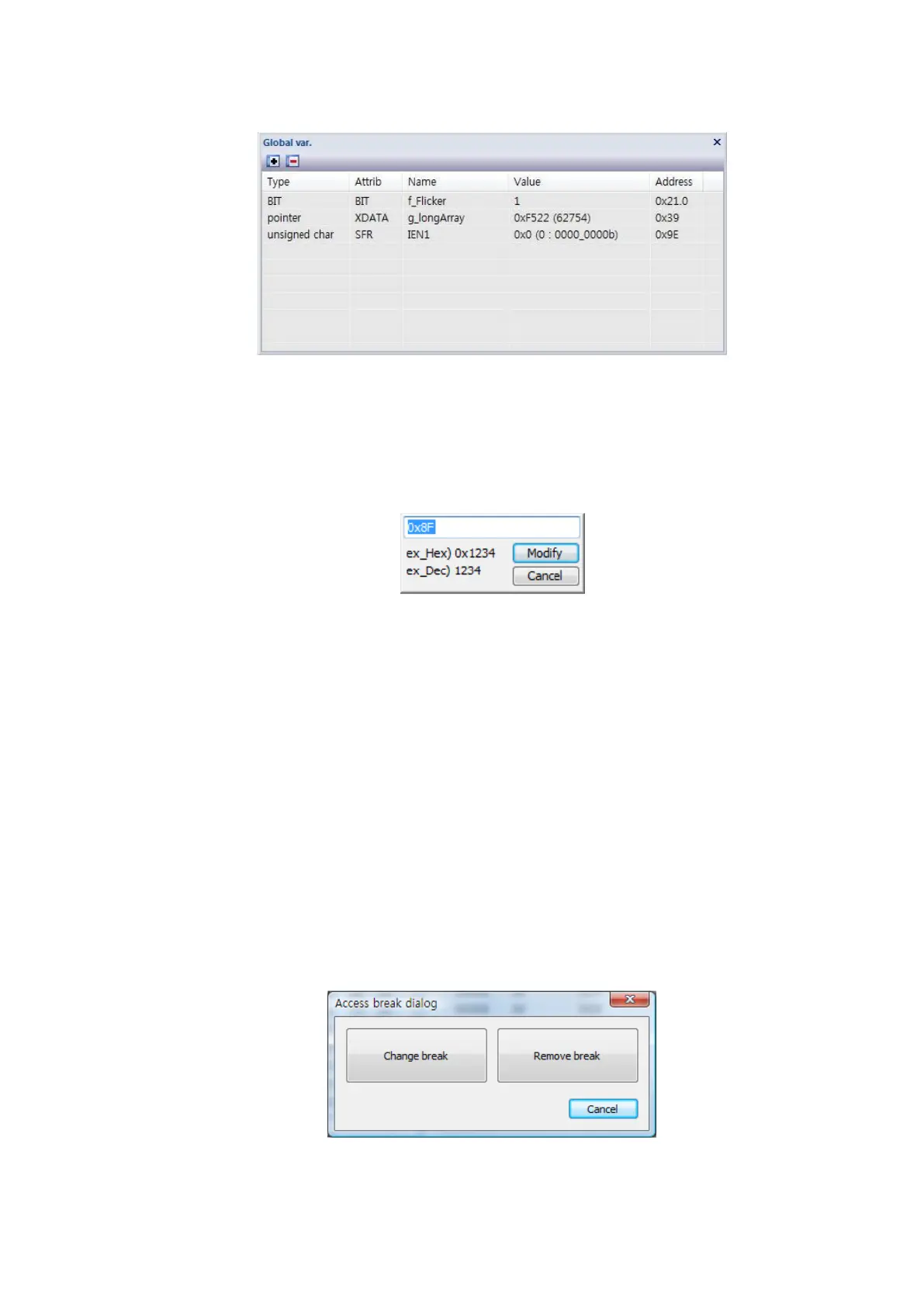

Figure 3-83 Global Variable View
4) Edit
: Double-click on the data area that you wish to edit, and the following dialog box will open.
Figure 3-84 Edit Dialog
Available data formats include:
 Binary: Bit variable only. The input value is 0 or 1.
 Decimal: Decimal number (ex: 12345)
 Hexadecimal: Hexadecimal number (ex: 0x1234)
5) Set break
: This function is available only to OCD II devices. Double-click on data in the window to set
or remove a data break. Double-clicking on an already set data break will pop up the dialog
box shown below.
Once a data break is set, its address field is colored in blue. Refer to the Set data break
section for details.
Figure 3-85 Access Break Dialog
