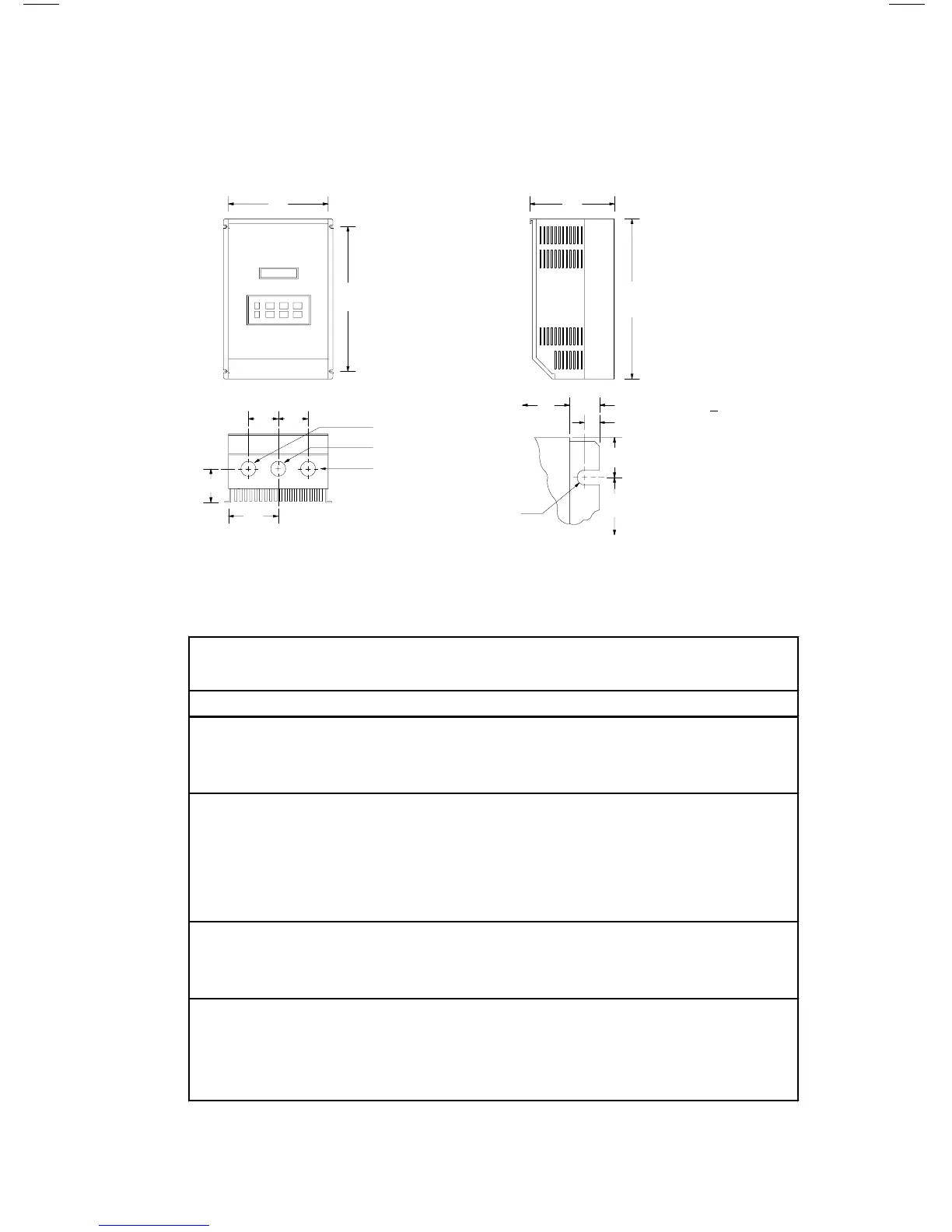

4.0 MC1000 DIMENSIONS
4.1 CHASSIS AND TYPE 1 ENCLOSED
INPUT
HP VOLTAGE MODEL H W D N P Q R S
0.25 240 / 120 M1103S 7.50 4.70 3.33 2.35 1.60 1.37 5.50 0.88
0.5 240 / 120 M1105S 7.50 6.12 3.63 3.77 1.80 1.37 5.50 0.88
240 M1205S 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
240 / 200 M1205 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
1 240 / 120 M1110S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 M1210S 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
240 / 200 M1210 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
480 / 400 M1410 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
590 M1510 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
1.5 240 / 120 M1115S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 M1215S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 / 200 M1215 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
2 240 M1220S 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
240 / 200 M1220 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
480 / 400 M1420 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
590 M1520 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
D
H
V
1.00"
R
T
Mounting Tab Detail
Dia. Slot
R
W
P
N
QQ
S Dia.
S Dia.
Conduit Holes:
0.88" Dia.
W
U
IF W
< 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W = 10.26"
T = 0.28"
U = 0.34"
V = 0.24"
