AC Tech MC1000 series User Manual

7
INPUT
HP VOLT AGE MODEL H W D N P Q R S
5 240 / 200 M1250 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
480 / 400 M1450 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
590 M1550 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
7.5 240 / 200 M1275 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
480 / 400 M1475 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
590 M1575 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
10 240 / 200 M12100 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
480 / 400 M14100 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
590 M15100 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
15 240 / 200 M12150 15.75 10.26 8.35 5.13 5.75 2.00 13.75 1.38
480 / 400 M14150 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
590 M15150 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
20 240 / 200 M12200* 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
480 / 400 M14200 15.75 10.26 8.35 5.13 5.75 2.00 13.75 1.38
590 M15200 15.75 10.26 8.35 5.13 5.75 2.00 13.75 1.38
25 480 / 400 M14250* 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
590 M15250* 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
30 480 / 400 M14300* 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
590 M15300* 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
* MODELS AVAILABLE IN NEMA 12 ONLY.

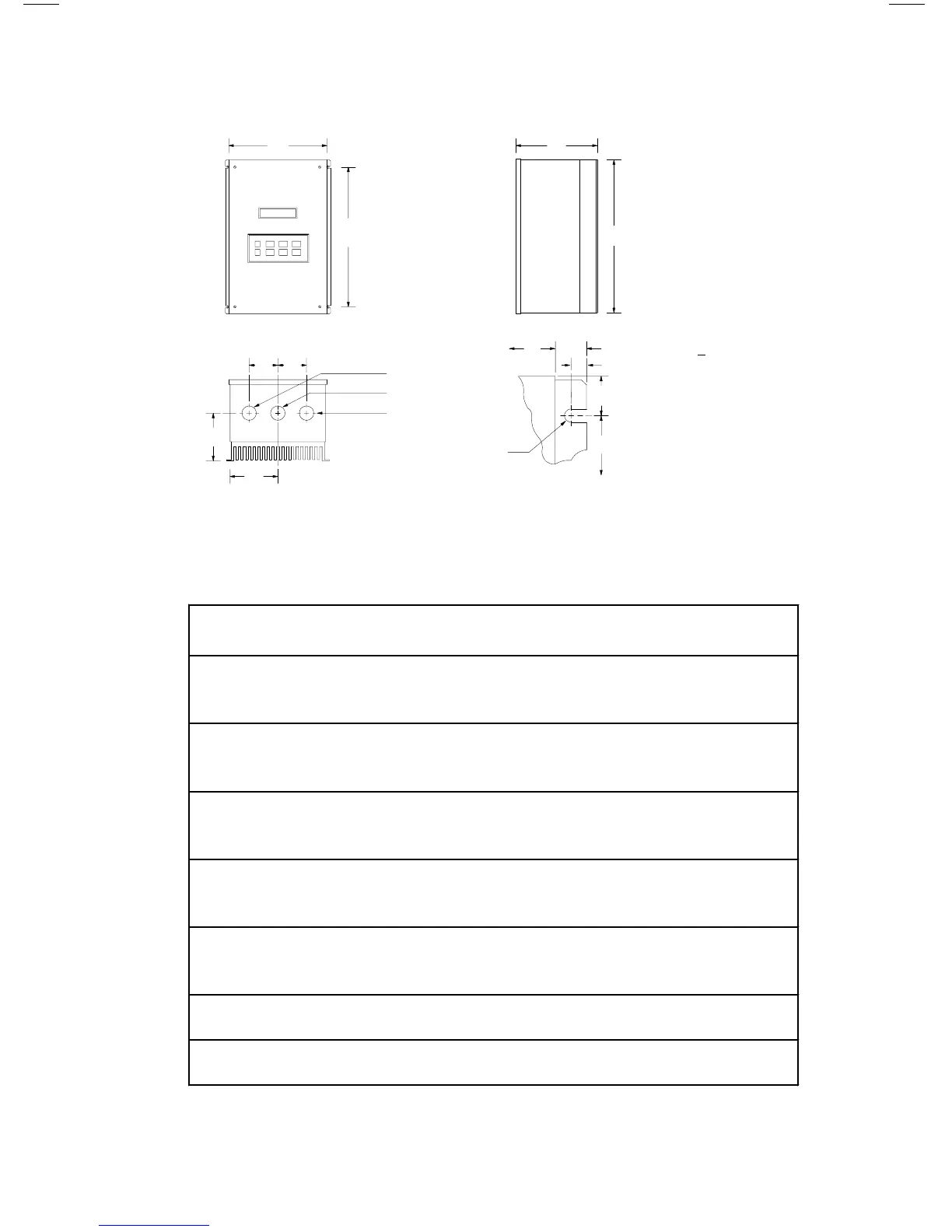

DIMENSIONS - TYPE 4, 4X, AND 12 ENCLOSED (continued)
1.00"
W
H
R
T
D
Mounting Tab Detail
V
Dia. Slot
Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
N
P
QQ
R
W
U
IF W
< 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W = 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
