Chapter 1, Accu-Chek Smart Pix System overview
1-4
Accu-Chek Smart Pix user's manual
1.2 Overview of the Accu-Chek Smart Pix system
The system consists of the following components, which are
described in brief below.
1

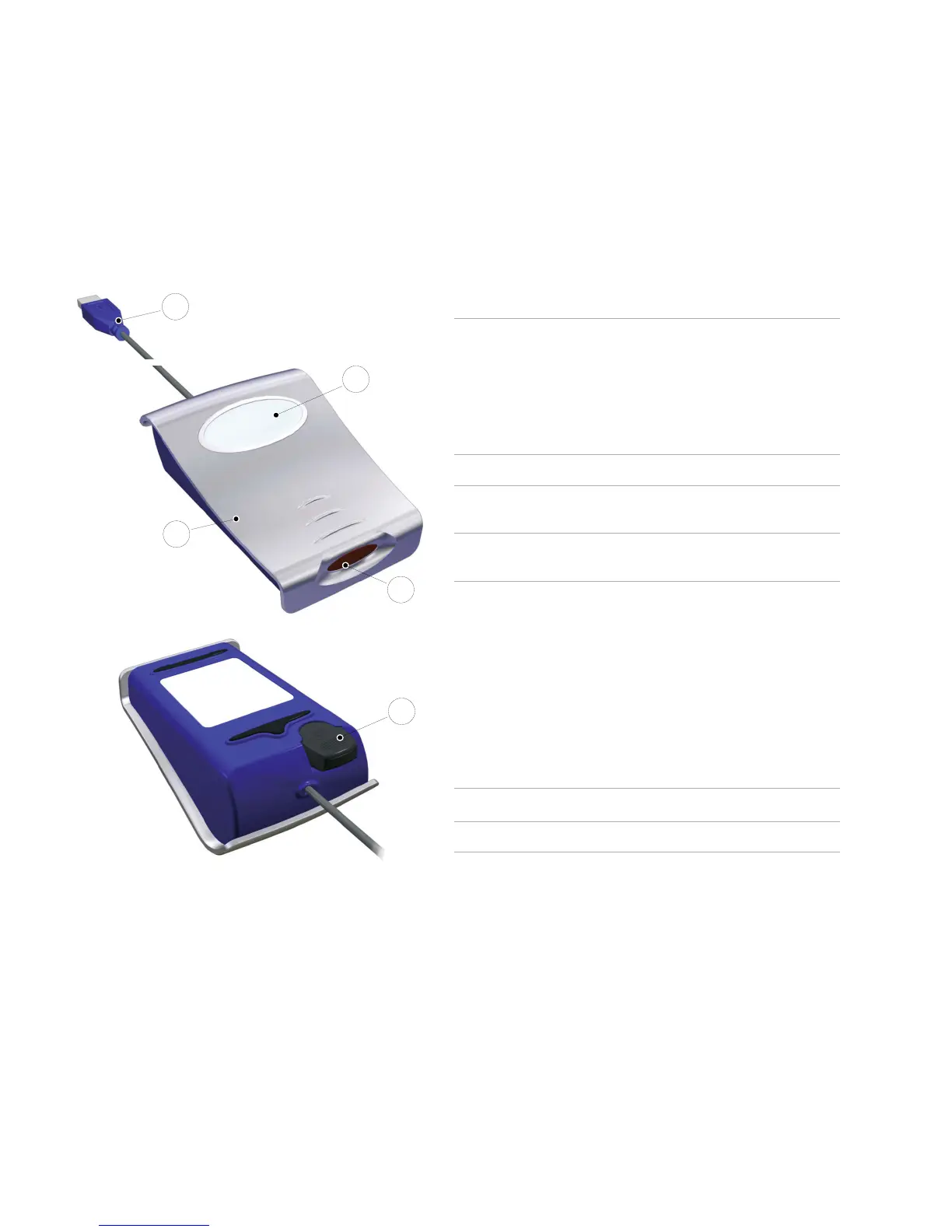

Accu-Chek Smart Pix Device: The central component
of the system. This device is the interface to various
Accu-Chek meters and insulin pumps, and it
contains the electronics as well as the programs to
process the data and results which are read in. The
analyses created are temporarily stored in the device
and can be viewed with an Internet browser.
2
USB connector for hooking up to the computer.
3
Status indicator, showing operating status.
(see page 1-5).
4
Infrared window for communication with
Accu-Chek meters and insulin pumps.
5
On the back of the device, there is a holder for an
Accu-Chek IR Key. This accessory can be safely
stored here to save space when it is not required. The
Accu-Chek IR Key allows infrared data transfer with
Accu-Chek meters which do not have a built-in
infrared port (Accu-Chek Sensor and Accu-Chek
Comfort). In the devices indicated, it is used for data
transfer in place of the code chip.
The Accu-Chek IR Key is available as an accessory
(REF 0 3307778190) if you have not already received
it from your dealer or Roche Diagnostics.
Not illustrated:
6
User’s manual (this document)
