2 Overview of System Components
The VerifyNow System consists of an instrument, disposable assay devices, sample
collection tubes, and quality control materials. This section provides a brief overview
of each component of the system, beginning with the instrument.
2.1 Instrument
The VerifyNow instrument provides the platform for an automated assay. It receives
an assay device and sample collection tube inserted into the assay device port.
Then, it automatically draws the blood sample into the assay device and proceeds
with the analysis of the sample. An operator specifies an automated activity and
retrieves test results using the display screen, keypad, and icon keys (Figure 2-1).

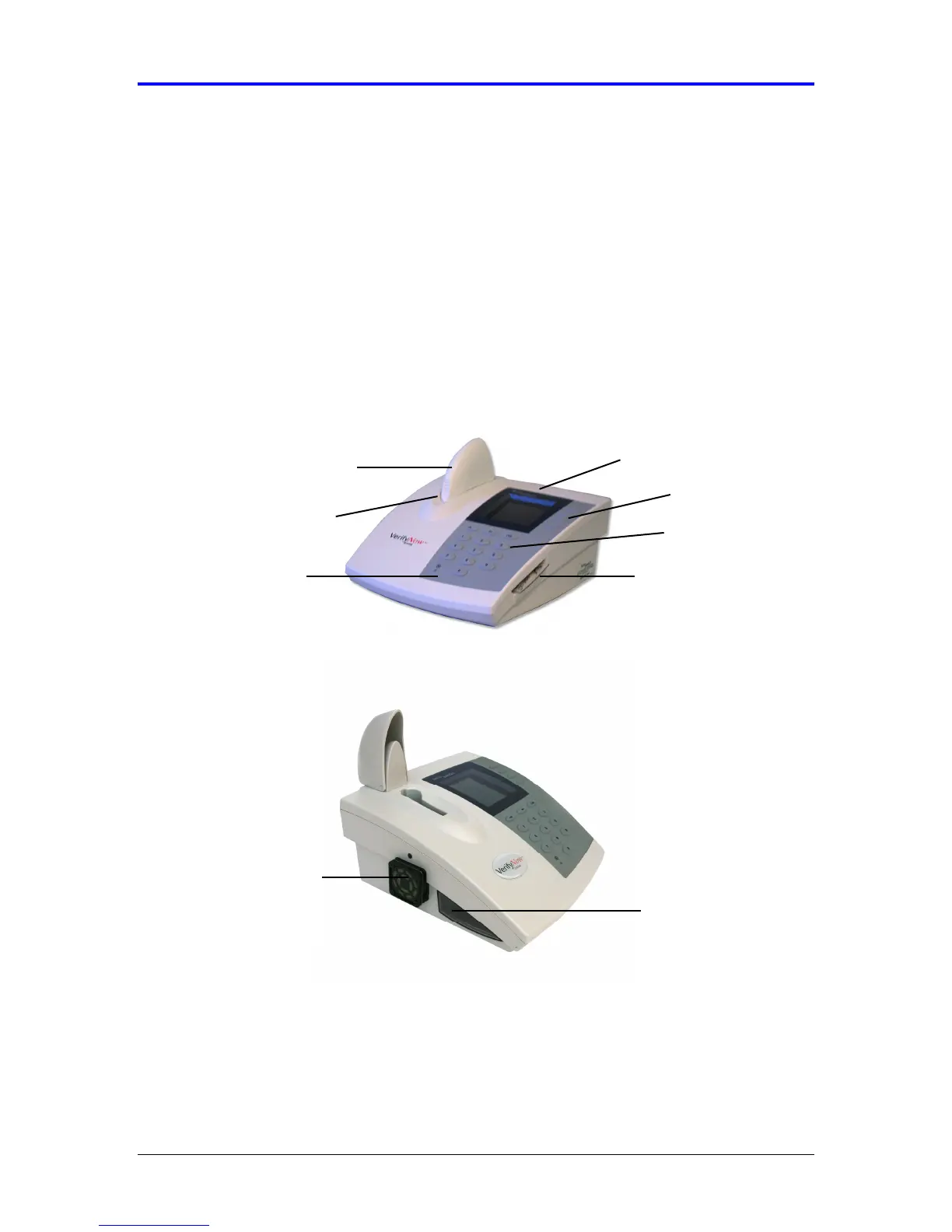

Figure 2-1 Instrument
Display Screen
Icon Keys
Keypad
Power Indicator
Assay Device Port
Cover
EQC Device
Storage Bay
Fan
Barcode Scanner
To Next Page
