Machine Maintenance 3-25

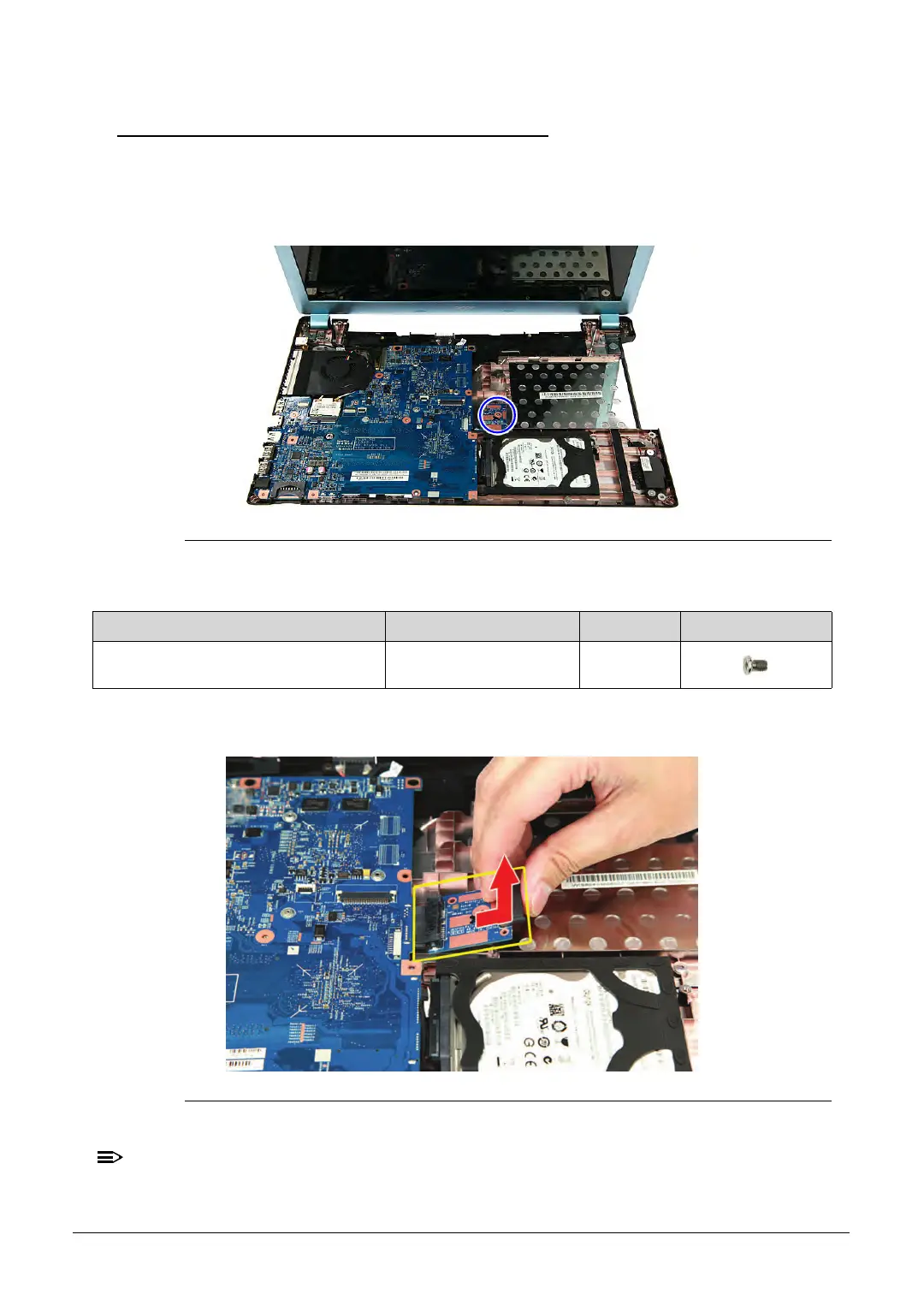

Removing the SATA Board 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-18.
2. Remove the screw securing the SATA board to the mainboard.
Figure 3-27. SATA Board Screw
3. Detach the SATA board from the mainboard.
Figure 3-28. SATA Board
A circuit board that is > 10cm
2
has been highlighted with a yellow rectangle in
Figure 3-28. Follow the local regulations for disposing this type of circuit board.
Table 3-27. Screw
Step Screw Quantity Screw Type
SATA Board Disassembly M2 × L3 1
