Machine Maintenance 3-11
Removing the DIMM Modules 0
1. Perform the “Removing the DIMM Cover” procedure described on page 3-10.
2. Push out the latches on both sides of the DIMM slot (1) until the module tilts upward, then
detach the DIMM module from the slot (2).

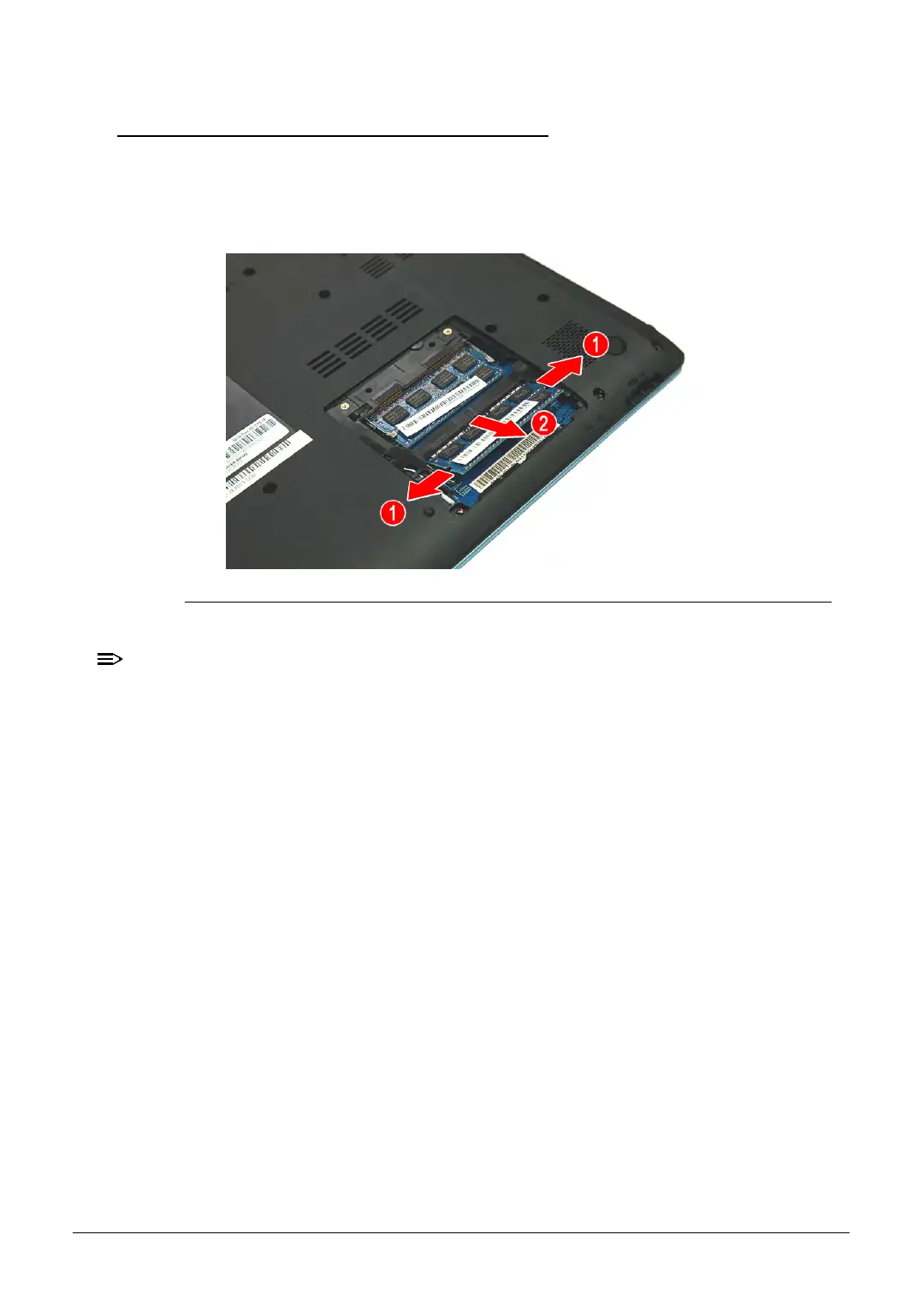

Figure 3-6. DIMM Modules
A circuit board that is > 10cm
2
has been highlighted with a yellow rectangle in
Figure 3-6. Follow the local regulations for disposing this type of circuit board.
3. Repeat Step 2 to remove the remaining DIMM module.
