Machine Maintenance 3-21
Removing the Touchpad Board 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-18.
2. Release the connector latch from the touchpad board (1), then disconnect the touchpad
cable (2).

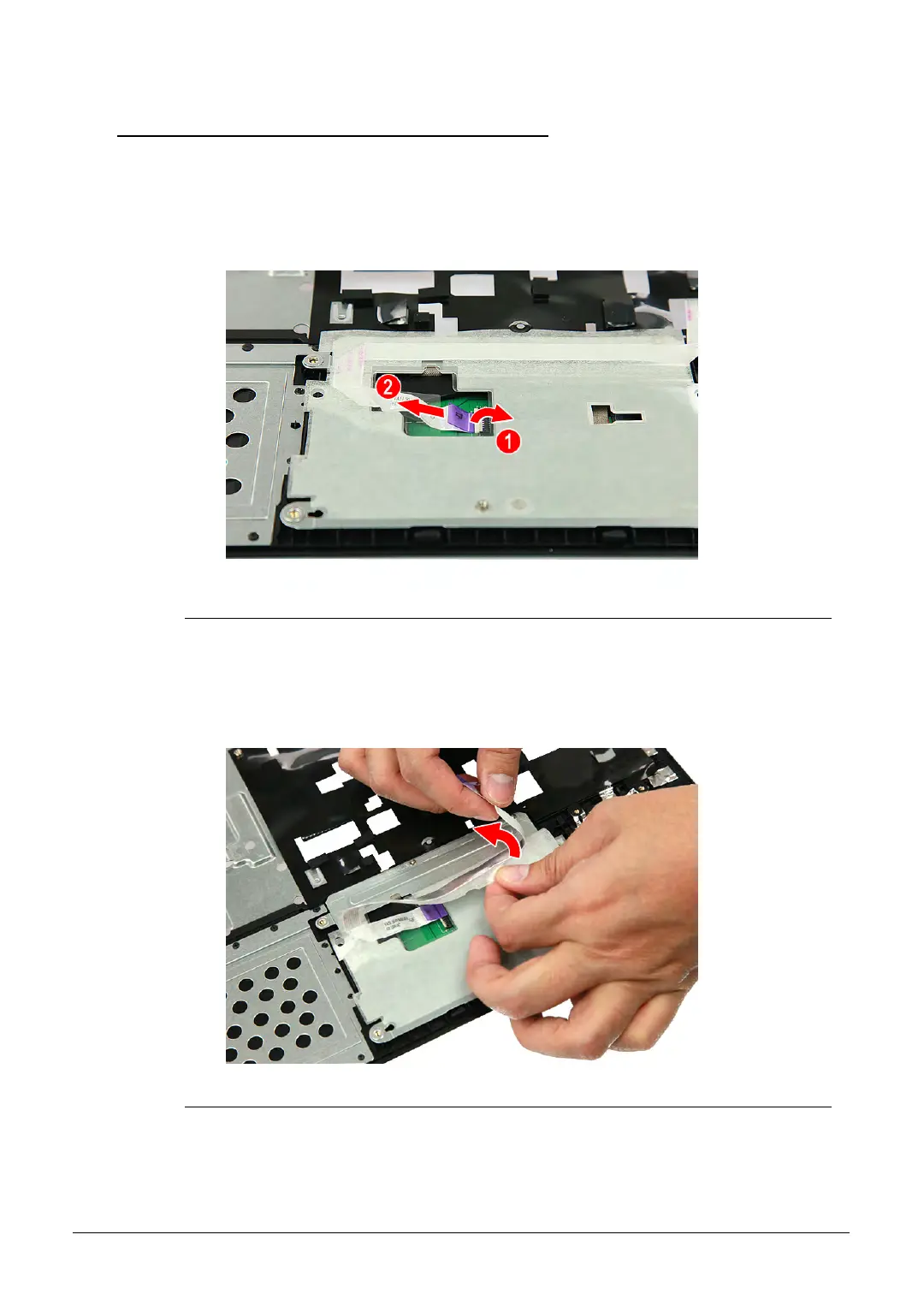

Figure 3-20. Touchpad Cable
3. Release the touchpad cable from the adhesive tape securing it, then detach the touchpad
cable from the touchpad board.
Figure 3-21. Touchpad Adhesive Tape
