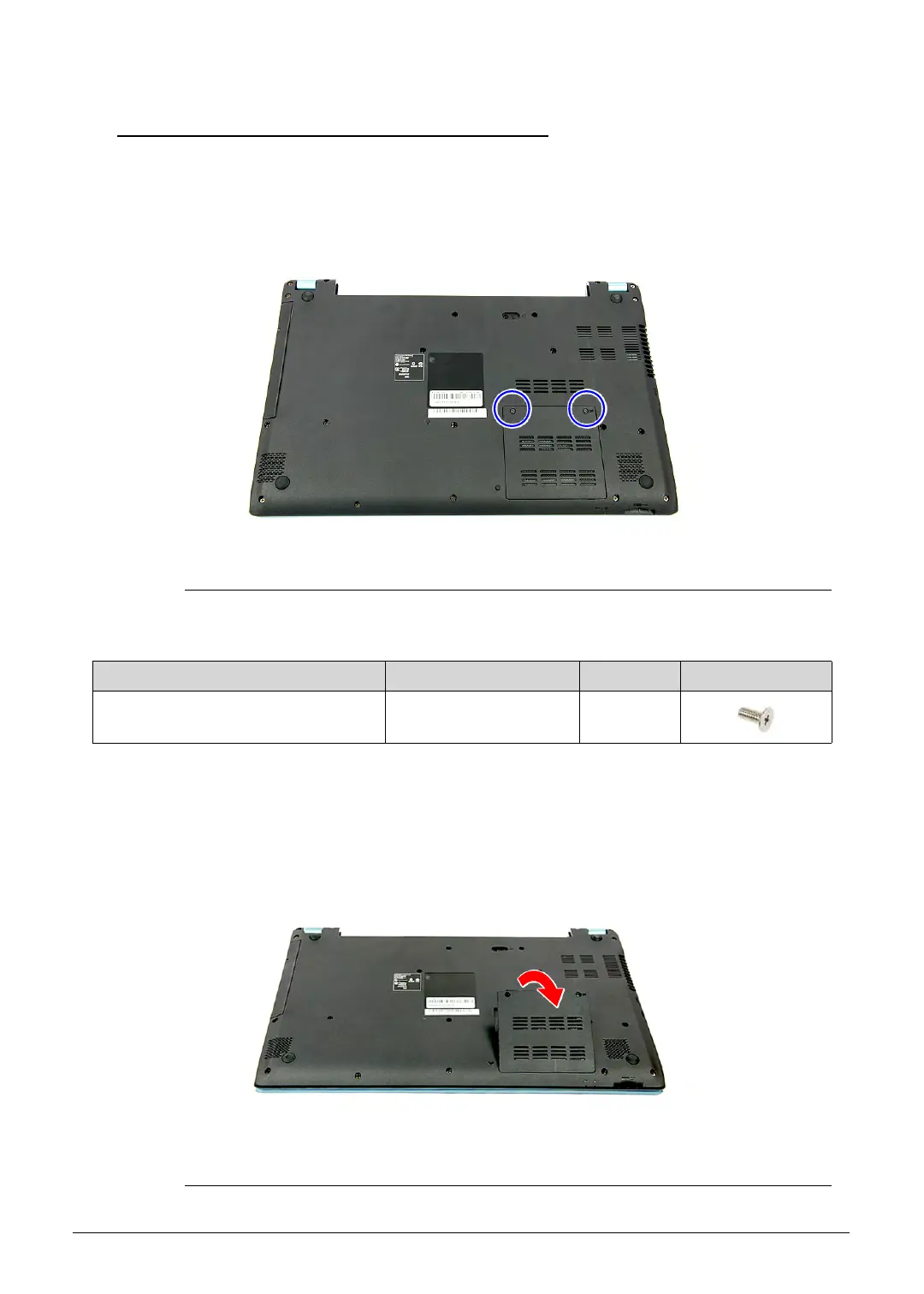

3-10 Machine Maintenance
Removing the DIMM Cover 0
1. Perform the “Removing the Battery Pack” procedure described on page 3-9.
2. Remove the two screws securing the DIMM cover to the lower case assembly.
Figure 3-4. DIMM Cover Screws
3. Insert a non-marring plastic scribe on the base door’s notch to release the DIMM cover,
and then detach the cover from the computer.
Figure 3-5. DIMM Cover
Table 3-4. Screws
Step Screw Quantity Screw Type
DIMM Cover Disassembly M2.5 × L5 2
