Machine Maintenance 3-13
4. Use a non-marring plastic flat-blade screwdriver to push the latches on the top side of the
keyboard.

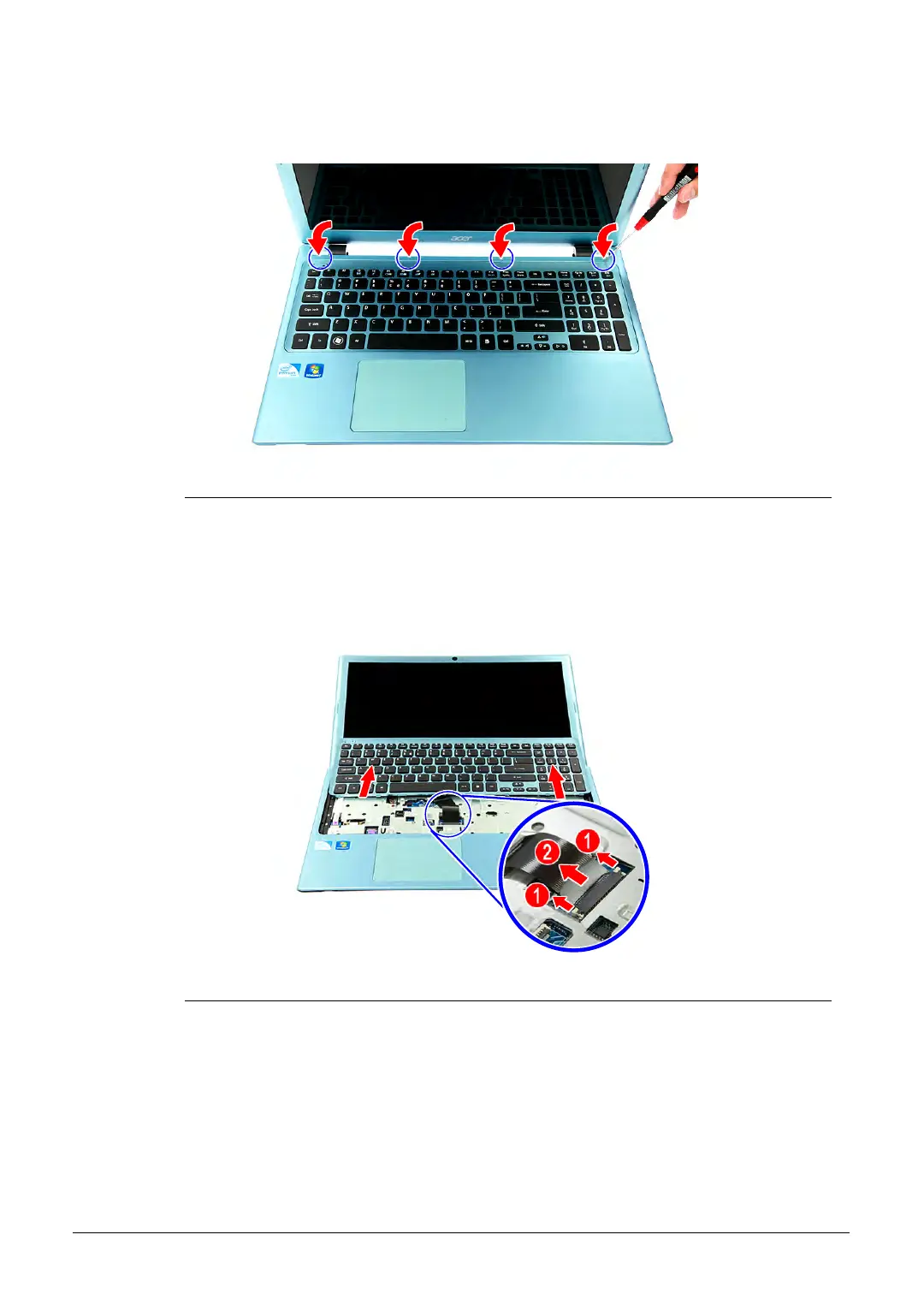

Figure 3-8. Keyboard Latches
5. Gently lift the keyboard out of its socket and slide it toward the LCD panel. Release the
connector latch (1), disconnect the cable from the mainboard (2), then detach the
keyboard from the computer.
Figure 3-9. Keyboard
