2-7
H6500

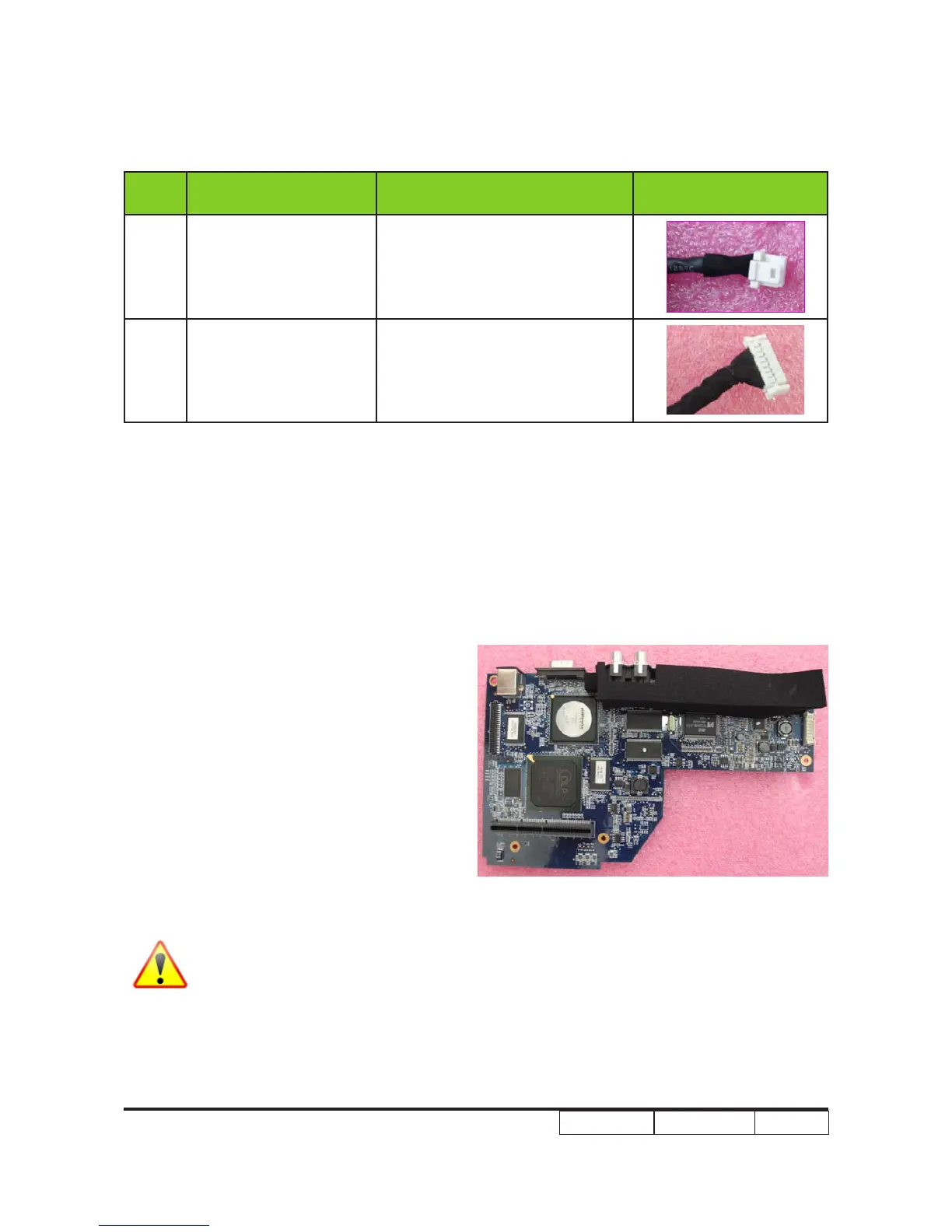

Item
Male Connector
on Main Board
The key feature Figure
E Lamp Driver (J14)
White connector and Black wire
tube (5 pin)
F LVPS (J1)
White connector and Black wire
tube (16 pin)
7. Disassemble Main board module.
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.
Main board module
