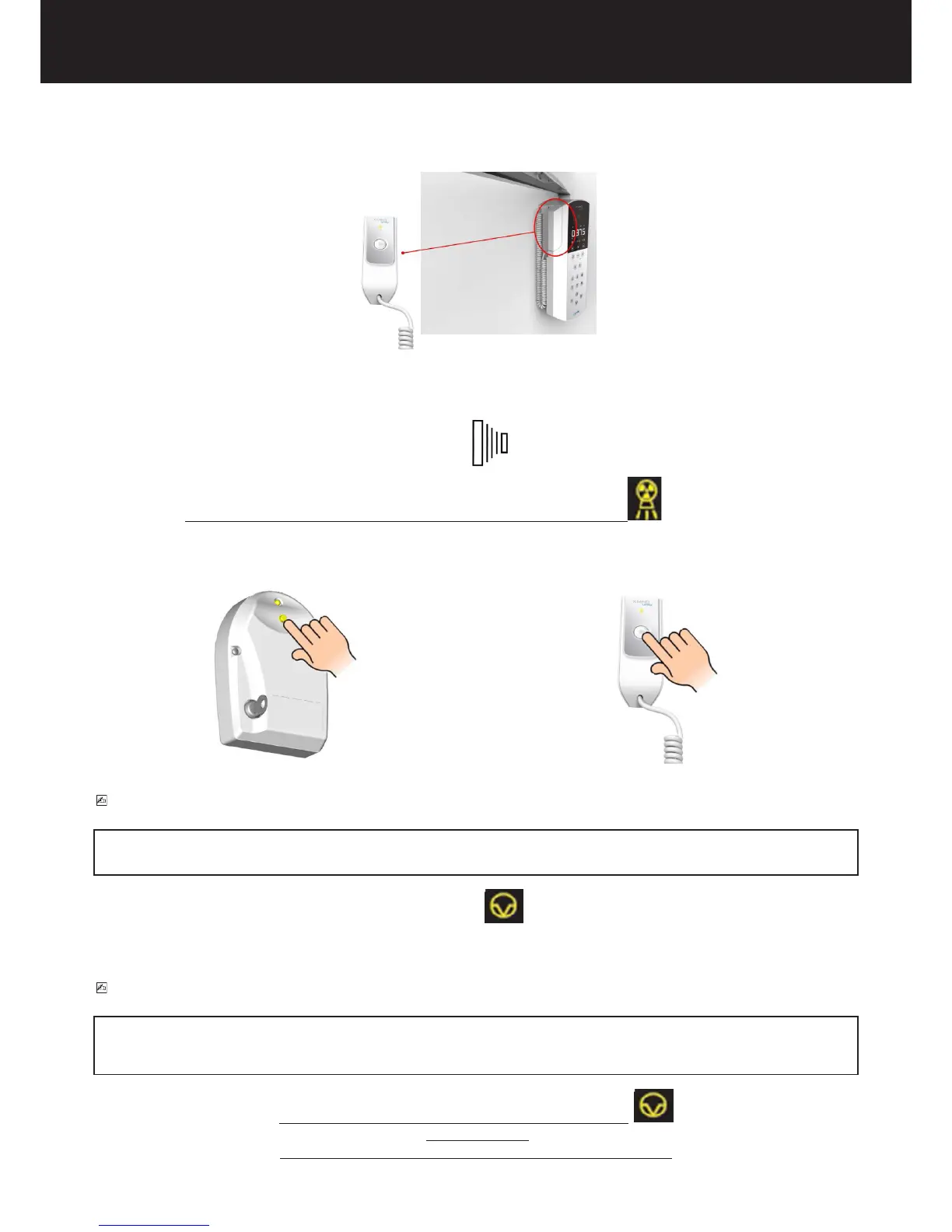

1. Remove the exposure switch from the timer and move away from the tube head maintaining a safety distance of at least 2 meters (6
ft) to be able to constantly check the x-ray exposure.
2. Advise the patient to remain still
3. On the exposure switch (local or remote if installed) press the key(the X-RAY button is positioned on the top of the exposure
4. switch) and keep it pressed until the acoustic signal (beep) stops and the yellow led turns off
Local Exposure Switch Remote Exposure Switch
PLEASE NOTE
If the “X-RAY” button is released before the end of the selected exposure time, the exposure is immediately interrupted and an error mes-
sage appears on the display.
1. At the end of the exposure the yellow led momentarily illuminates indicating the PAUSE state.
2. The display indicates the actual exposure time
3. All the timer functions are inhibited until the PAUSE led extinguishes
PLEASE NOTE
The pause time is necessary to allow the x-ray tube to cool down.
This time is calculated by the microprocessor, depending on the exposure time, with a ratio of 1:30 (30 seconds of pause time are required
for 1s of exposure)
A NEW EXPOSURE WILL BE POSSIBLE AFTER THE YELLOW LED
HAS TURNED OFF
REPEAT THE OPERATIVE SEQUENCE ABOVE TO MAKE NEW EXPOSURE
