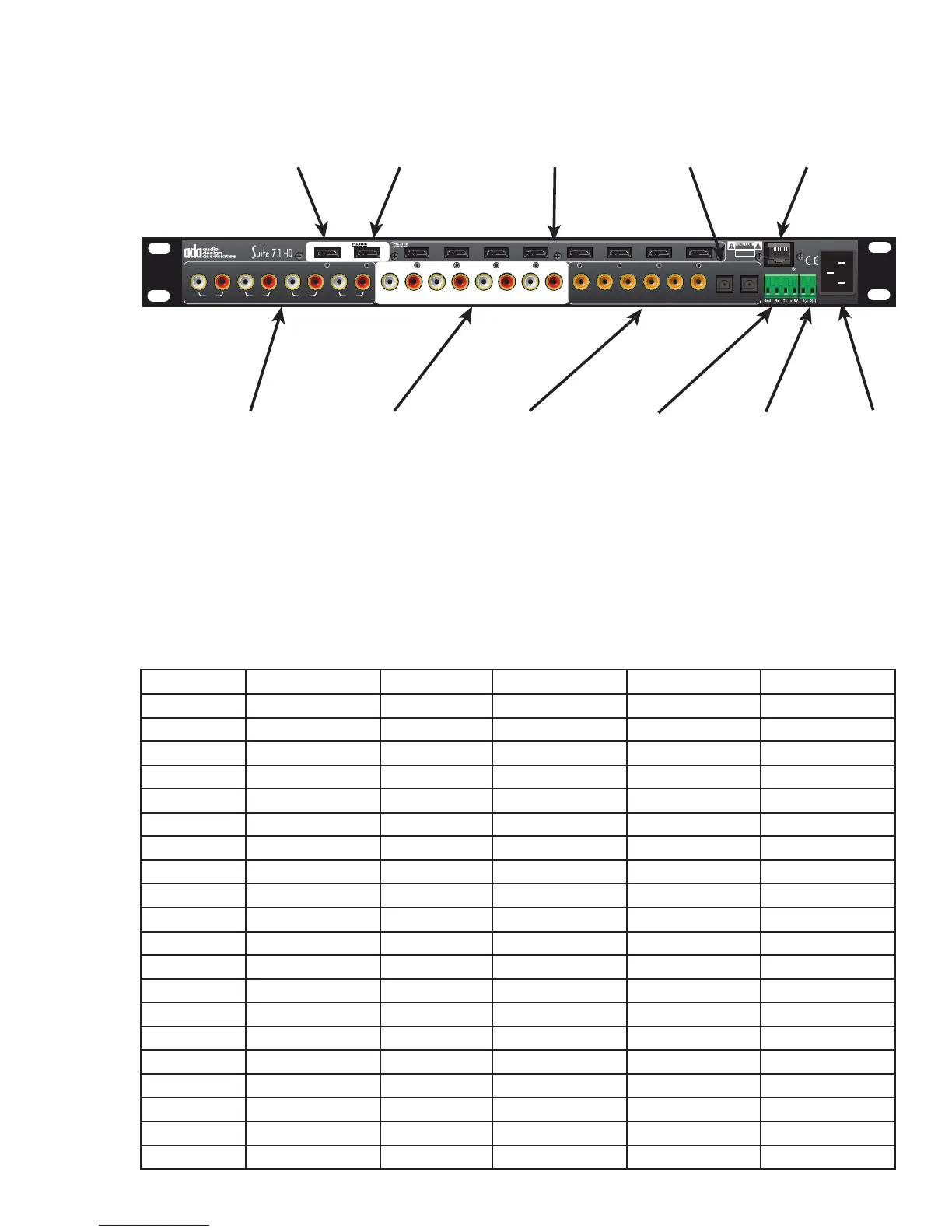

Rear Panel Connections
ANALOG AUDIO INPUTS
1
L R
2 3 4
L R
L R L R
7.1 CHANNEL OUTPUTS
L R
LS RS
LBS RBS C SUB
1
2
3 4 5 6
7
8
Inputs
Outputs
AB
ADA BUS
12VDC
AC 50/60Hz
90-260VAC~
ATTENTION!
MADE IN U.S.A.
OPTICAL DIGITAL
INPUTS
1
2
DIGITAL INPUTS
1
2
3
4
5
6
LAN 10/100
HDMI
Audio/Video
Input (8)
HDMI
Main
Video Output
HDMI
Slave (Mirror)
Video Output
Digital Audio
TOS-Link
Input (2)
Ethernet
10/100T
Jack
Analog Audio
Stereo
Input (4)
Main Eight
Channel Audio
Output (7.1)
ADA Bus
Data Port
Low
Voltage
Triggers (2)
EIC AC
Power
Input
Digital Audio
Coax
Input (6)
Out of the Box Input Conguration
The “Out of the Box” input conguration is easy to follow and offers connection of as many as 20
components without adjustment of the Suite 7.1 HD’s input congurations (providing that the sources
have the appropriate outputs). Below is a chart showing the Suite 7.1 HD’s 20 “input labels” and the
assignment of the HDMI (audio & video signal) and audio jacks on the rear panel of the unit. Also
shown here are the default surround sound modes for the respective inputs when playing 5.1 or 2
channel material.
INPUT # INPUT LABEL VIDEO INPUT AUDIO INPUT DEFAULT 5.1 DEFAULT 2.0
1 BLURAY 1 HDMI 1 HDIMI DISCRETE+EX/ES PLII MOVIE
2 SATELLITE 2 HDMI 2 HDMI DISCRETE+EX/ES PLII MOVIE
3 CABLE/TV 3 HDMI 3 HDMI DISCRETE+EX/ES PLII MOVIE
4 HD DVR/PVR 4 HDMI 4 HDMI DISCRETE+EX/ES PLII MOVIE
5 VIDEO LIB 5 HDMI 5 HDMI DISCRETE+EX/ES PLII MOVIE
6 VIDEO GAME 6 HDMI 6 HDMI THX GAMES PLII GAME
7 HD VCR 7 HDIM 7 HDMI DISCRETE+EX/ES PLII MOVIE
8 HD CAMERA 8 HDMI 8 HDMI DISCRETE+EX/ES PLII MOVIE
9 IPOD DOCK 9 OFF ANALOG 1 THX MUSIC QUAD BYPASS
10 RADIO 10 OFF ANALOG 2 THX MUSIC QUAD BYPASS
11 MULTIROOM 11 OFF ANALOG 3 THX MUSIC QUAD BYPASS
12 PHONO 12 OFF ANALOG 4 THX MUSIC QUAD BYPASS
13 CD PLAYER 13 OFF OPTICAL 1 THX MUSIC QUAD BYPASS
14 COMPUTER 14 OFF OPTICAL 2 THX MUSIC QUAD BYPASS
15 MUSIC LIB 15 OFF DIGITAL 1 THX MUSIC QUAD BYPASS
16 DVD AUDIO 16 OFF DIGITAL 2 THX MUSIC QUAD BYPASS
17 SACD 17 OFF DIGITAL 3 THX MUSIC QUAD BYPASS
18 DAT 18 OFF DIGITAL 4 THX MUSIC QUAD BYPASS
19 LASER AC3 19 OFF DIGITAL 5 DISCRETE+EX/ES PLII MOVIE
20 LASER DTS 20 OFF DIGITAL 6 DISCRETE+EX/ES PLII MOVIE
