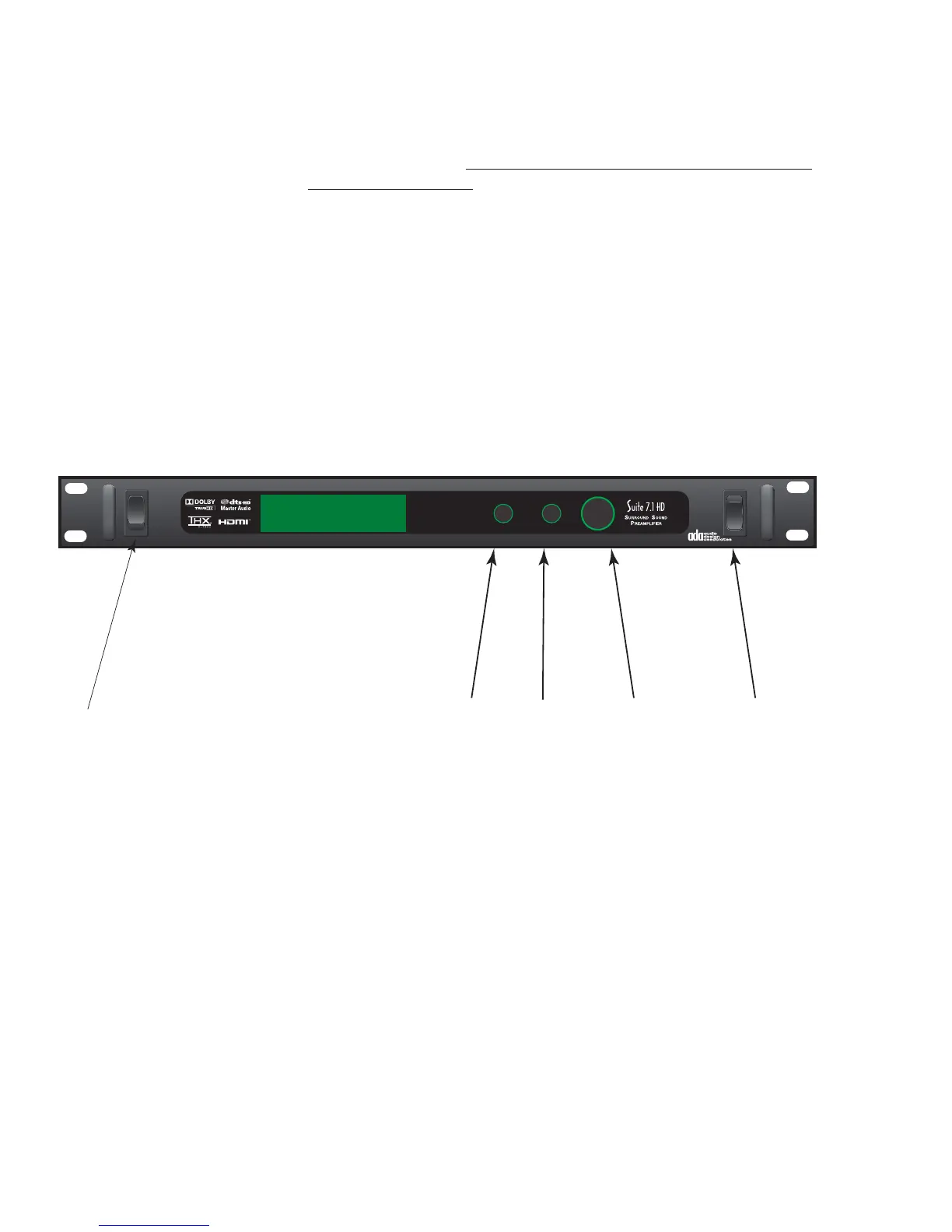

Introduction - Front Panel Controls & Displays
Overview
The Suite 7.1 HD is factory
set for optimum operation.
This section details the
front panel features of
the Suite 7.1 HD. All
component functions can
be operated through the
three control knobs located
on the units front panel.
The front panel displays
are also explained in this
section.
Welcome
The Suite 7.1 HD is the world’s most advanced audio video surround
sound preamplier. It is also congured “Out Of The Box” for
optimum operation. While it is designed to be easy to setup and
operate, ADA strongly recommends spending some time familiarizing
yourself with the units many functions and features. For those who
wish to customize their home theater system, the Suite 7.1 HD is
also equipped to be congured to operate ideally in any environment
and with many varying source components. While the connection of
components and accessories are discussed in the following sections,
this area will explain the front panel features and basic operation
commands of the Suite 7.1 HD’s front panel. The text found in italic
type in this manual’s margins will act as a quick reference when
reviewing these materials.
Features
The Suite 7.1 HD acts as both an input selector and surround sound decoder. It is capable of decod-
ing Dolby TrueHD, DTS HD Master Audio, Multi-Channel PCM from sources that connected using
an HDMI cable as well as Dolby Pro Logic, Dolby Digital (AC-3), and DTS encoded formats and also
provide Lucaslm THX Ultra 2 enhancements and lters. While the Suite 7.1 HD can automatically
detect between Dolby Digital, DTS, Dolby Pro Logic, and Dolby Digital/Dolby Pro Logic (both decod-
ing formats are used when playing two-channel encoded DVD discs {typically older movies available
on DVD that are not mixed in six channels}), the option to engage either full THX enhancements or
only THX Re-EQ must be manually set on the Suite 7.1 HD. The Suite 7.1 HD also provides several
additional modes ideal for music playback. There are additional settings that permit the Suite 7.1 HD
to also operate in home theaters where a full eight channel speaker array may only be partially imple-
mented (i.e. no back surround and/or no center channel). Furthermore, the Suite 7.1 HD also permits
each channel to be set to its own volume level with respect to all other channels as well as have its
own delay setting. These features and more are discussed in the upcoming sections.
