Maximum & Turn-On Volume Settings
TRx BRx VRx
TONE RECALL1 TN BL VL EQ
BAL RECALL1 SETUP
VOL RECALL1 LOUDNESS M]
VRx VOL -24.O
VOLUME STORE 1
VOLUME RECALL 1
VOLUME MAX +1O.Odb [P M]
VRx VOL -24.O
VOLUME STORE 1
VOLUME RECALL 1
VOLUME MAX +1O.Odb [P M]
VRx VOLUME STR3
VOLUME STORE 3
VOLUME RECALL 1
VOLUME MAX +1O.Odb [P M]
The Suite 7.1 HD features a comprehensive vol-
ume control stage that in addition to letting you
access a volume point numerically, also lets you
set a maximum volume level, four volume presets,
and select one of the four volume presets as your
turn-on volume level.

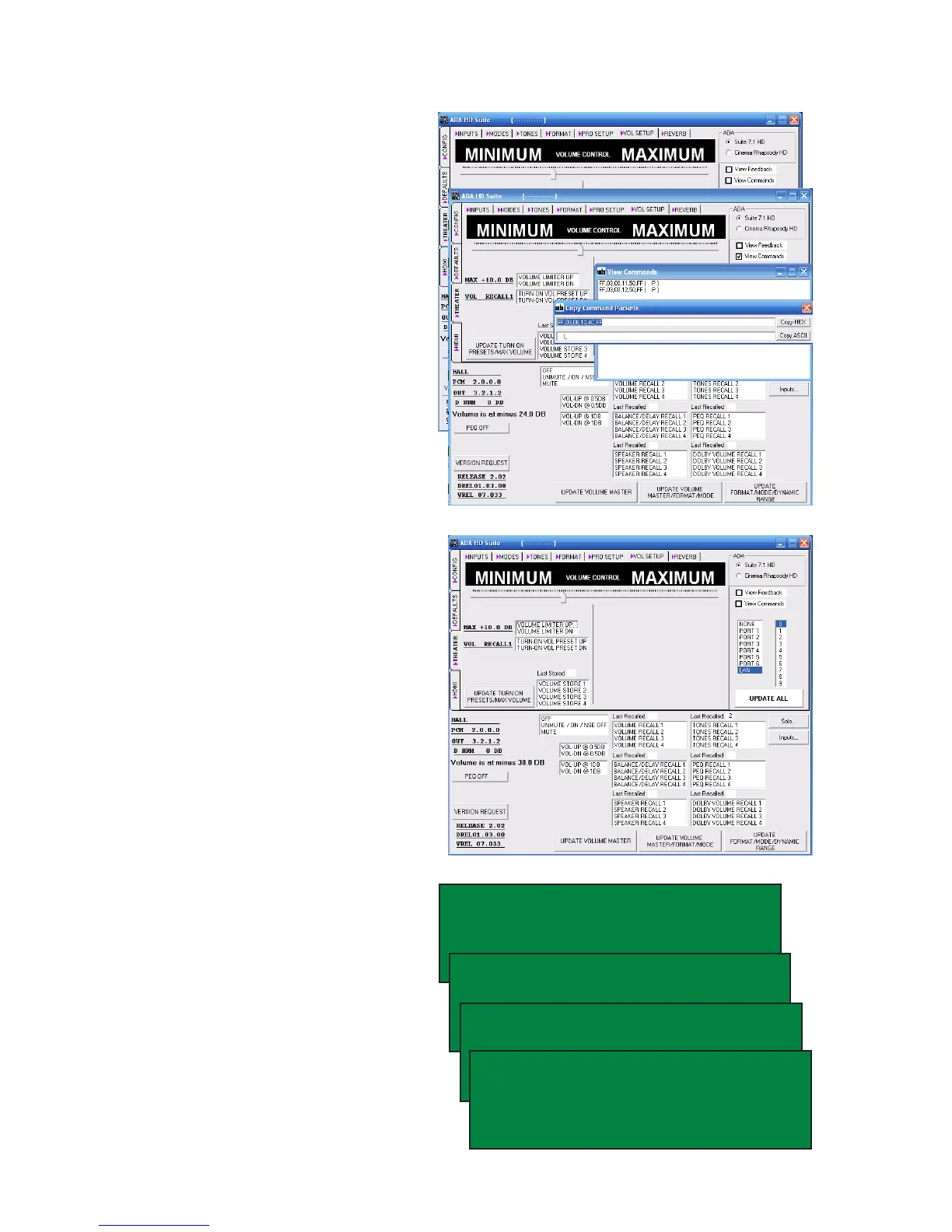

On the PC Program tab labeled VOL SETUP, the
slider permits you to jump to a specic volume
point.
Volume Numeric Direct - This feature is available
on the ADA PC program and lets you jump to a
specic volume point. In the PC program, a virtual
slider accomplishes this. Essentially, when you
release the slider the volume command is sent.
To view this code in HEX, you simply check the
View Commands box and if you wish to copy the
HEX command into a program, merely double-
click on the command itself.
Storing Volume Presets - This tab also enables
you to store the current volume as one of the four
Volume Presets. When on a volume you wish to
store, press the corresponding VOLUME STORE
# button. These four presets can be recalled at
turn on or when an input is selected.
Turn On Volume Preset - You can select one of
the four volume presets as your Turn On Preset
or have the system turn on the last volume setting
by Selecting the Last Used option.
From the front panel of the Suite 7.1 HD while
in the Setup Mode navigate to the VL using the
Mode knob and press the knob.
To select a navigate between features, turn the
Mode knob.
To store a volume preset, rst make certain that
you are at the volume level you wish to store by
turning the Volume knob. Then with the cursor
on the letter V of VOLUME STORE #, turn the
Input knob to select the volume preset number.
Then press the Input knob to store that preset.
The same steps can be used to Recall a volume
preset.
To set the Maximum Volume Level, select that
feature and then turn the Input knob to adjust.
