Reverb Mode Settings
TRx BRx VRx
TONE RECALL1 TN BL VL EQ
BAL RECALL1 SETUP
VOL RECALL1 LOUDNESS M]
LABELS/AV PL EH [P M]
SPEAKERS BASS ADABUS
LEVELS HDMI THX TURN ON
DELAYS SOLO TEST REVERB
REVERB:CINEMA [P M]
DAMP 4KHz RCL DEFAULT
SIZE 7O% MIX 4O%
LF CUT 2OHz REVT 3.Os
REVERB:CINEMA [P M]
DAMP 4KHz RCL DEFAULT
SIZE 7O% MIX 4O%
LF CUT 2OHz REVT 3.Os
REVERB:CLUB [P M]
DAMP 4KHz RCL DEFAULT
SIZE 7O% MIX 4O%
LF CUT 2OHz REVT 3.Os
REVERB:HALL [P M]
DAMP 3KHz RCL DEFAULT
SIZE 8O% MIX 35%
LF CUT 2OHz REVT 4.Os
The Suite 7.1 HD features several modes that
incorporate Reverb. Uniquely, ADA permits you
to fully adjust these modes including features that
permit you to determine the Size of the affect,
the Mix percentage, the Low Frequency Cut, the
Reverb Time and the Damping frequency.
These features can be individually set for each
of the six Reverb modes. Once set, the features
are preserved.
Adjustments are made in real time so that as you
change these settings you can hear the affects of
your adjustments providing that mode is selected
at the time.
ADA has set factory Defaults which can be re-
called at any time. Note that Recalling these
Defaults only recalls the ADA Factory Defaults
for the selected Reverb Mode and will not affect
the other Reverb Modes.

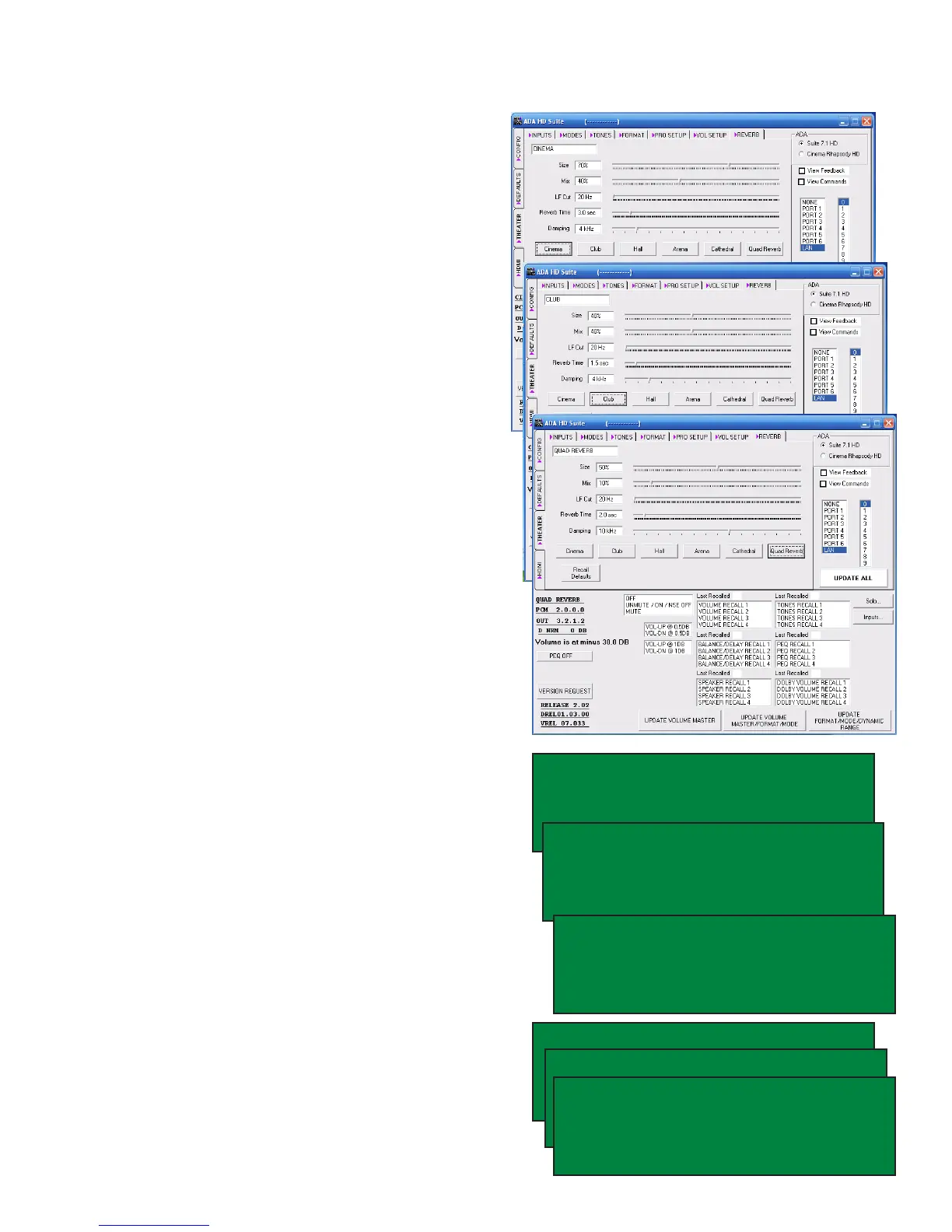

To adjust the settings from the PC Program, select
the side Theater tab and then the top Reverb tab.
Then select the reverb mode you wish to adjust.
From the front of the Suite 7.1 HD, while in the
Setup Mode, turn the Mode knob to navigate the
cursor to the S in SETUP and then press the
Mode knob. You are now on the page that reads
LABELS A/V in the upper left-hand corner of the
page. Turn the Mode knob so that the cursor is
under the R in REVERB and then press the Mode
knob. You are now on the Reverb screen.
The cursor will be ashing on the R in REVERB:
while showing the Reverb mode. Turning the
Input knob will scroll through the six Reverb
modes. When you are on the desired Reverb
mode, turn the Mode knob to cycle through its
features. While on a feature, turn the Input knob
to adjust the setting.
If you want to reset a Reverb mode to the ADA
Factory default, turn the Mode knob such that the
cursor is ashing on the letter R in RCL and then
press the Mode knob. The current Reverb mode
is now reset to the factory setting. Other Reverb
modes remain unchanged. To exit, navigate to
either the letter P (previous screen or the letter
M (main screen) using the Mode knob and then
press the Mode knob.
