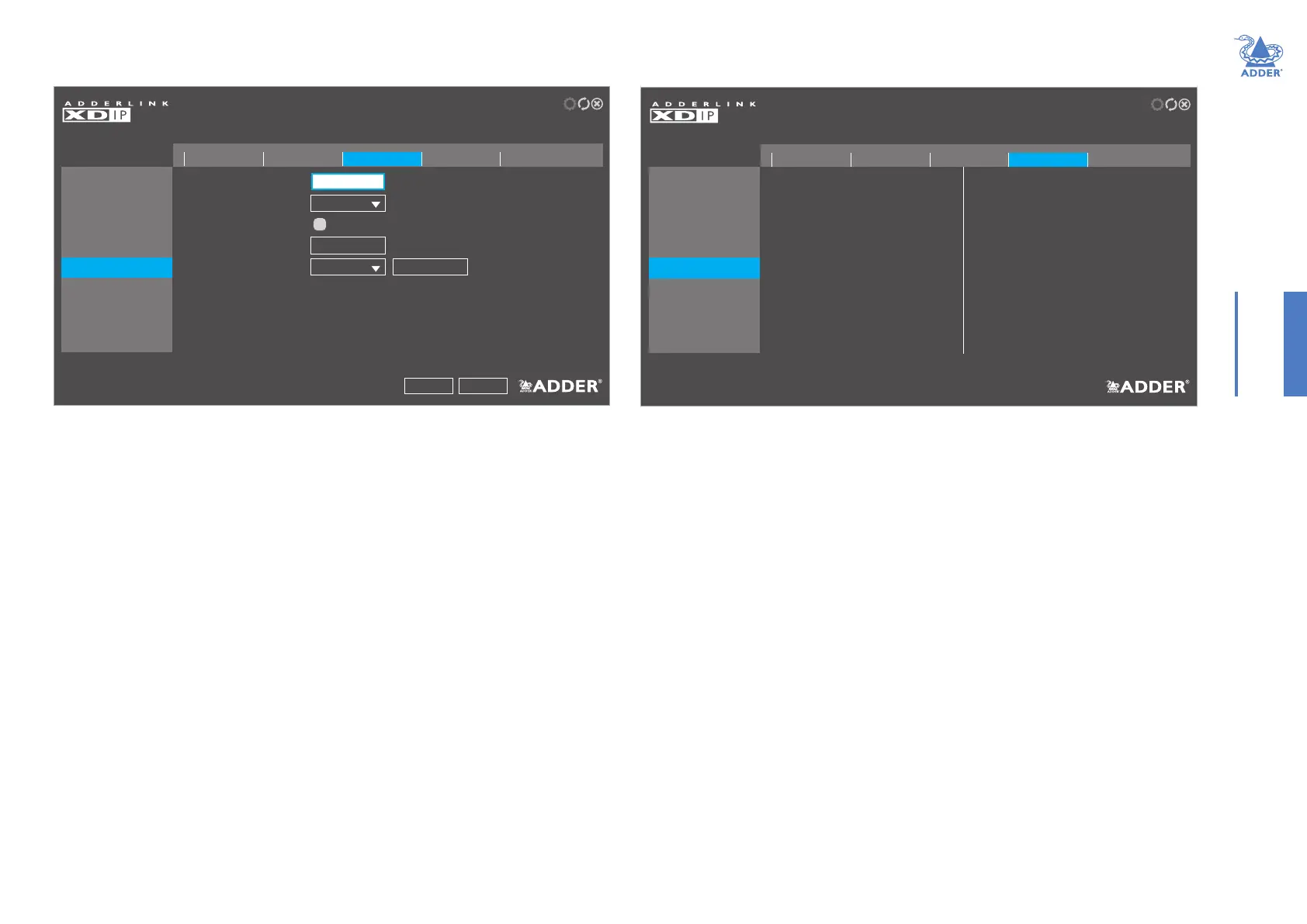

ADMIN - Diagnostic Tools Settings
Receiver 1
Remote Logging Address
Severity Level
Enable Remote Logging
Capture Log to USB
Remote Support
RECEIVER
Change the settings for this node’s diagnostic tools.
Network InfoNetwork Test Diagnostics Statistics
Apply
Cancel
0.0.0.0
5
Trigger
22 Enable
General
OSD Settings
Setup Channels
Manage Ports
Advanced
Software Upgrade
ADMIN - Statistics
Receiver 1
FrameWidth (px) Encoding
Video Performance Audio Performance
Frame Height (px) Bits per Sample
Frames per Second Samples per Second
Bit Rate (Mbps) Bit Rate (Mbps)
Underflows
Overflows
Video Errors
Audio Errors
Packet loss
Packet loss
Dropped Images
Discontinuities
Decode Errors
1920 Linear
1080 16
60 48000
43.380 1.615661
0
0
0
0
0
0
0
RECEIVER
Review this node’s video and audio information.
Network InfoNetwork Test Diagnostics Statistics
General
OSD Settings
Setup Channels
Manage Ports
Advanced
Software Upgrade
Remote Logging Address
Enter a valid IP address for a syslog server on the local network where status logs
can be sent.
Severity Level
Denes the level of messages that will be logged (according to RFC5424). Level
5 (Notice:normalbutsignicantcondition) is the default setting; XDIP currently
supports levels 1 to 7. Choosing levels 6 (Informational) or 7 (Debug) will cause
larger numbers of lesser events to also be logged, with a potential impact to
overall performance. These levels should only be used if working with the support
team to diagnose a specic issue.
Enable Remote Logging
Tick to send log les to the chosen Remote Logging Address.
Capture Log to USB
Click the Trigger button to save the activity log to a local USB memory stick. The
resulting compressed le can then be sent to Adder support when diagnosing an
issue.
Remote Support
When using the Adder remote server, this option determines which port will be
used. Multiple options are offered in case one or more ports are blocked by your
rewall.
Note:ThisoptionshouldonlybeenabledwhenrequestedbyAdder,forsupportpurposes.
This page provides statistical details regarding the video and audio performance.
Advanced page (continued)

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
