INDICATORS
The transmitter and receiver nodes contain various indicators to provide you with status
information. Both nodes have four red indicators on their front panels.

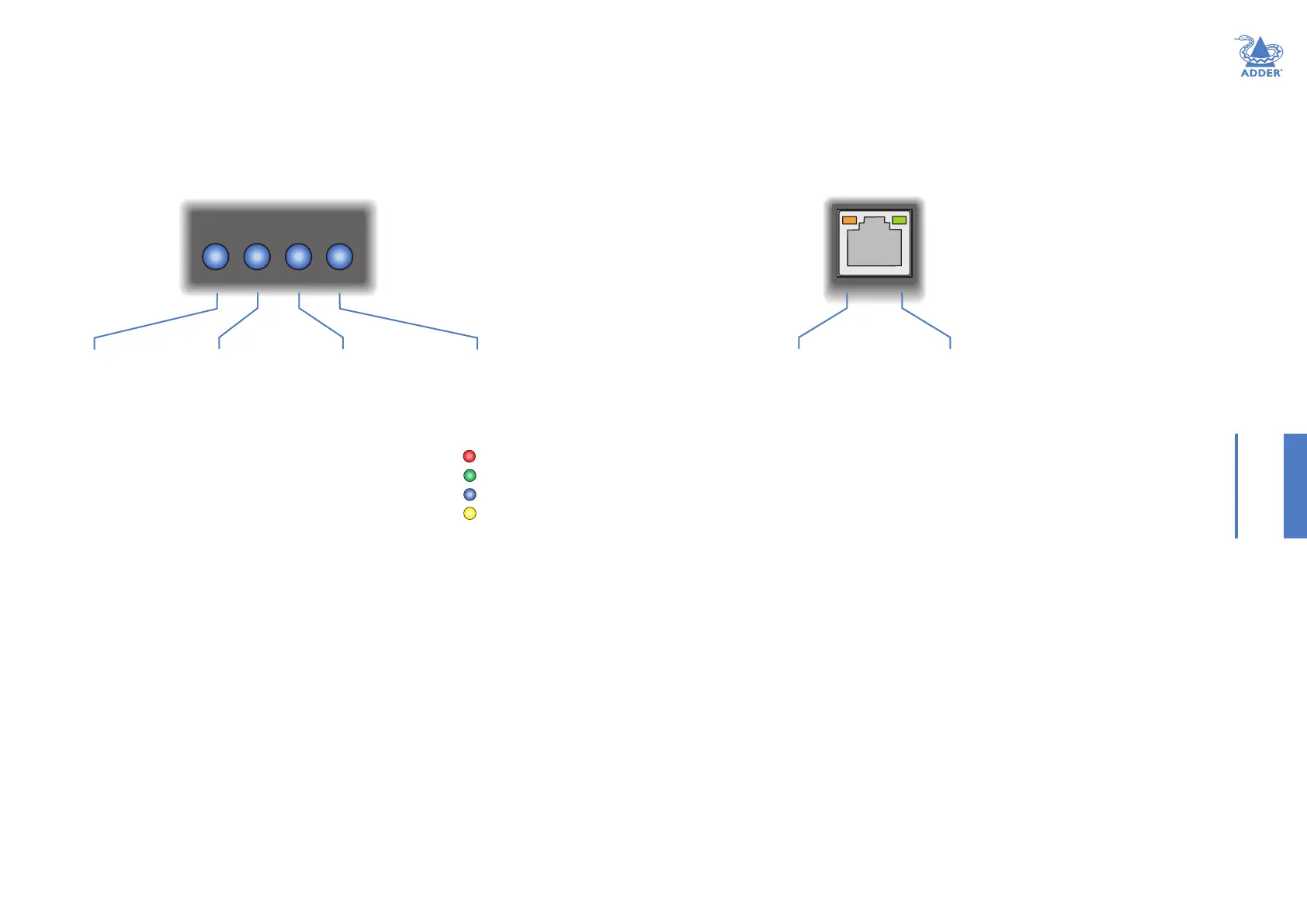

Front panel status indicators
The status indicators on the front panel of every node provide important feedback on
current operation:
Green and amber status indicators
The indicators on the link port of the node’s rear panel provide link status information:
Green
This indicator will be on
whenever there is a valid
link between this node and
another, or to a network
switch.
Amber
This indicator will ash
when data is being
transferred.
PWRUSB VIDLNK
LNK
This indicator will be
on for the receiver
and transmitter
nodes which have
established a link.
VID
Indicates an active
video connection.
USB
Indicates an active
USB connection.
PWR
This indicator will be on
when power is supplied
to the node. Its color
reects the overall
status of the node:
Start of Life
Transmitter
Receiver
Recovery mode:
the node is temporarily
running recovery
software with reduced
functionality.
On transmitter nodes:
These indicators will be on when there’s
a local USB/video connection for the PC,
regardless of whether a receiver node is
connected.
On receiver nodes:
These indicators will be on if there is a
USB/video feed from a PC either at the
connected transmitter node or at the local
feed through port (i.e. channel 0) of the
receiver node.

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
