APPENDIX 3 - LINK CABLE INTERFERENCE PROTECTION
Name Overall Screening Pair Shielding
U/UTP û û
F/UTP
ü
û
U/FTP û
ü
S/FTP
ü ü

or S/STP
or PiMF
U/UTP
F/UTP
U/FTP
S/FTP
S/STP
PiMF
Pair shielding
Overall screening
Outer sheath

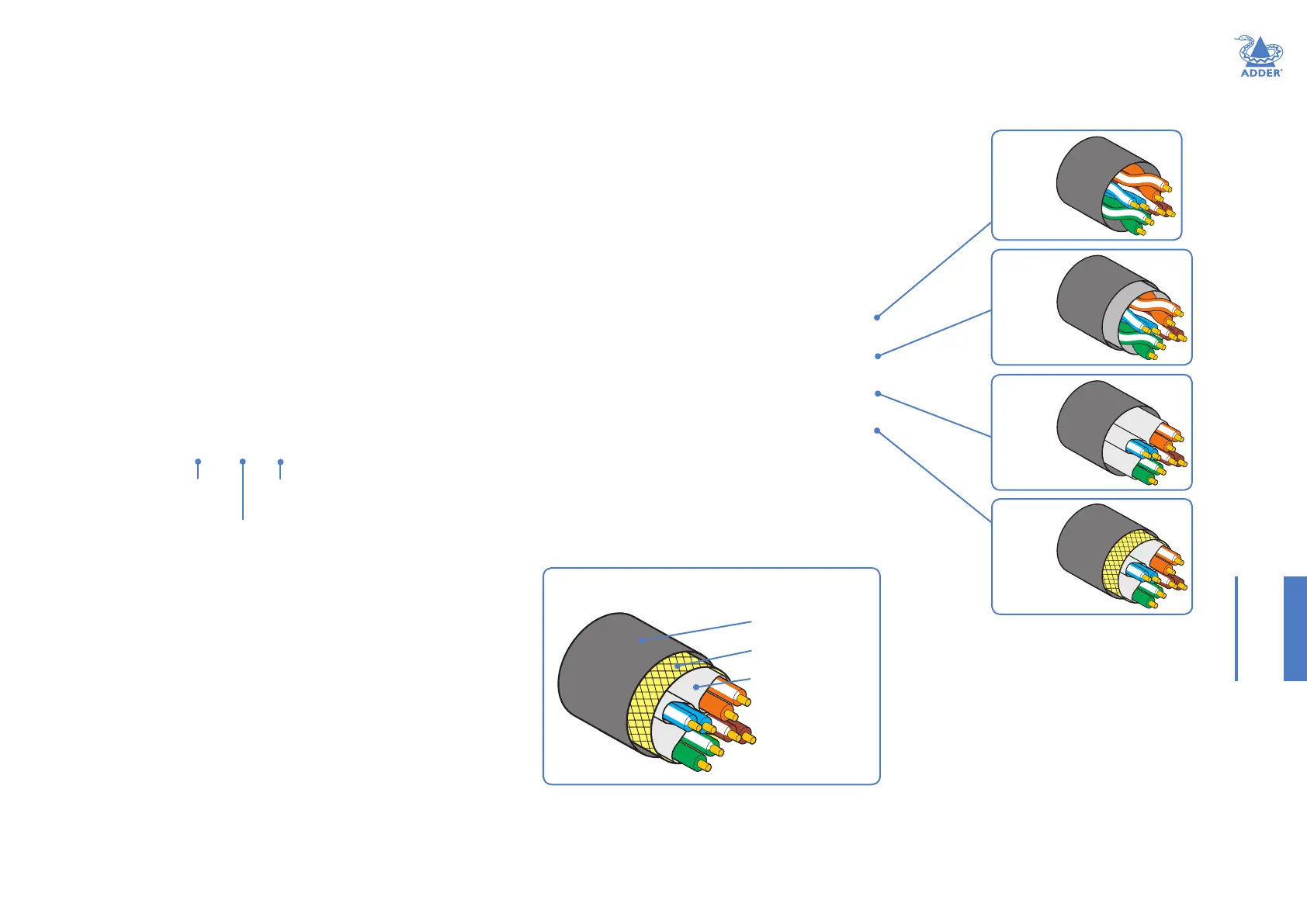

General cable anatomy
Overall
screening
Pair
shielding
Twisted
Pair
While the Category rating (e.g. CAT 5e, CAT 6a, CAT 7, etc.)
determines the electrical performance of a cable, another vital part
of the overall cable specication is its protection from interference.
As cabling distances and data rates increase, so too does the
susceptibility to interference, from both external and internal
sources.
Proximity to other electromagnetic sources are the main external
threat and these can be subdued using overall screening that
surrounds all four of the cable pairs. However, interference is also
possible from neighbouring twisted pairs within the same cable
and this can be just as hazardous to data integrity. Such crosstalk is
countered by shielding each cable pair separately.
Within each Category rating, you can specify different
combinations of external screening and internal shielding to suit
the environment into which the link is being placed.
Interference protection codes
Interference protection is classied in the following manner:
U/UTP
where
U = unshielded
F = foil shielding
S = braided shielding
PiMF = Pairs in Metal Foil

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
