ADDER AdderLink XDIP User Manual

8
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

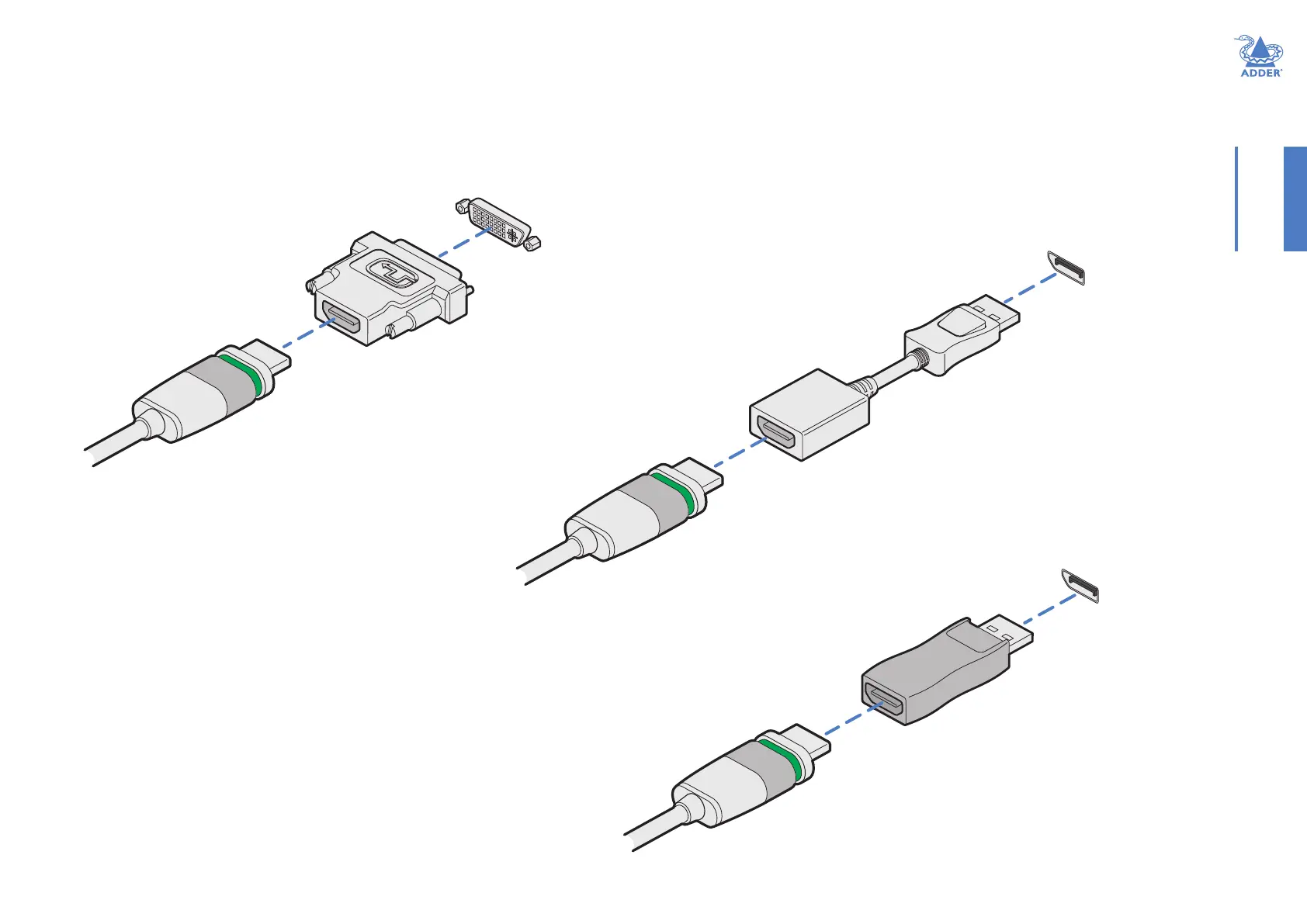

Video format conversion
One of the many advantages offered by the HDMI (High Denition Multimedia Interface)
standard is the ease with which it can be converted into- and out of- numerous other
video formats, including single link DVI-D, DisplayPort and VGA (see next page).
Note: HDMI conversion cables and adapters (apart from the Adder DVA) are not available from
Adder, but are widely sold elsewhere.
To
XDIP
‘CONSOLE’
or ‘COMPUTER’
ports
DVI monitor
or video port
on computer
HDMI to
DVI adapter
HDMI < > DVI
HDMI video
cable
DisplayPort
to HDMI
passive adapter
DisplayPort to HDMI
(passive)
DisplayPort
video port on
computer
To
XDIP
‘COMPUTER’
video port
DisplayPort/HDMI adapters - active or passive?
The choice of whether to use an active or passive adapter depends primarily
upon the signal source.
If your computer outputs Dual-mode DisplayPort (also known as DP++), then
you can use a (cheaper) passive adapter to derive a Single-link HDMI feed.
Conversely, when converting from HDMI to DisplayPort (to use with a
DisplayPort monitor), the adapter will always be active. Note: Adapters are not
bi-directional,specicmodelsarerequiredtogofromDisplayPorttoHDMIand
vice versa.
HDMI to DisplayPort
(active)
DisplayPort
monitor
To
XDIP
‘CONSOLE’
video port
HDMI to
DisplayPort
active adapter

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
