Console connections
Console connections (video monitor and/or USB peripherals) are always made at the receiver node, but can also optionally be made at
the transmitter node, if local control (or monitoring) of the computer is required in addition to remote control.
Notes:
• Video resolutions up to 1920 x 1200 @ 60Hz are supported.
• HDMI audio is not supported; please use the audio in/out ports to transfer audio signals.
To make console connections
1 Insert the supplied HDMI cable between the HDMI video socket (in the CONSOLE section) and the video port on your monitor.
 HDMI offers the great advantage that it is a straightforward task to convert its signals to and from other common video formats
(DisplayPort, DVI and VGA) - See page 8.
2 Connect the USB leads from your mouse and keyboard to the two sockets on the rear panel. The single socket on the front panel is
also available (all three USB ports operate in the same manner).

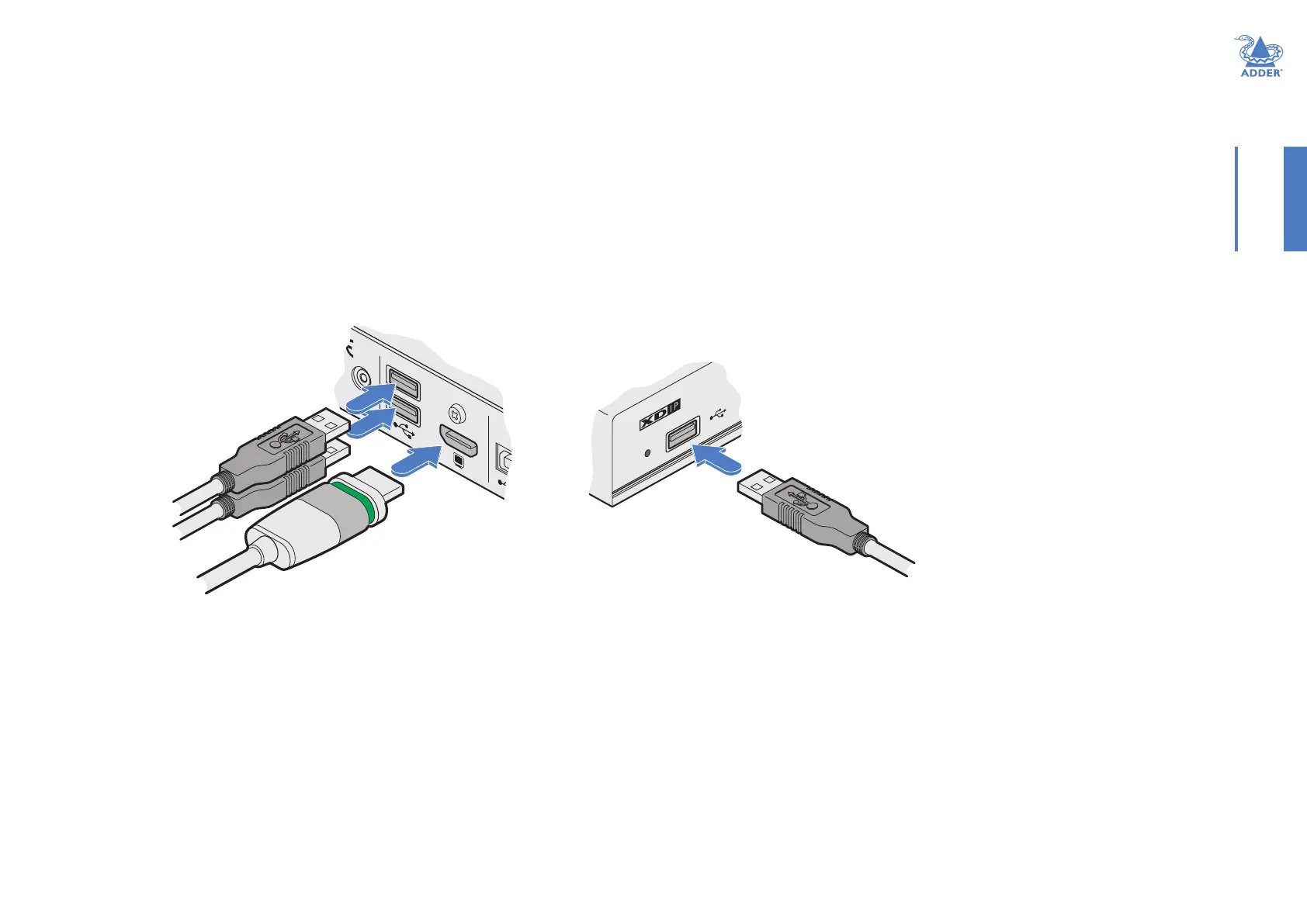

USB
connections
from peripheral
devices
HDMI video
connection to
monitor
COCONSOLE
A D D E R L I N K
USB
connections
from peripheral
device

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
