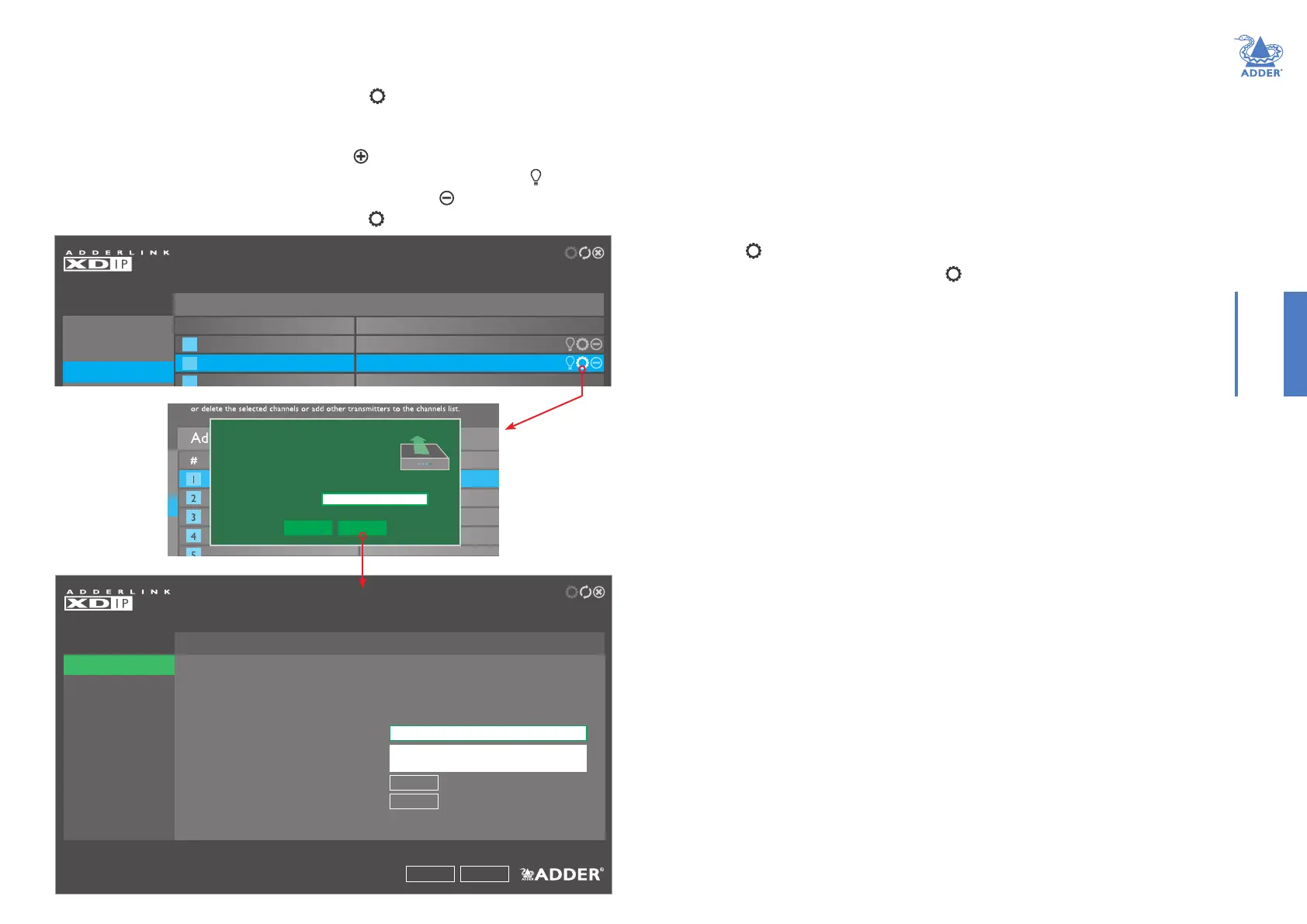

Setup Channels page
Transmitter nodes can be congured via the Setup Channels page, accessible via any receiver. (Enter the
receiver’s OSD: Press CTRL + ALT + C*, click the icon in the top right corner and then choose the
Setup Channels page). Here you can:
• Change the channel order - drag and drop a node entry into the required slot (or use the arrow keys).
• Add a transmitter node to the list - click the icon in the lower right corner.
• Flash the front panel indicators of any transmitter node - click the node’s icon.
• Remove a transmitter node from the list - click the node’s icon.
• Congure a transmitter node - click the node’s icon:
Transmitter node settings
1 From any connected receiver node, enter the receiver’s OSD: Press CTRL + ALT + C*,
then click the icon in the top right corner.
2 Choose the Setup Channels page and click the icon shown next to the name of the
transmitter that you wish to congure.
3 You will be requested to enter the admin password. The transmitter’s General Settings
page will be shown.
Note:AllAdminmenupagesrelateddirectlytotransmittercongurationuseagreenhighlight
to match the color of the PWR indicator of nodes when they are in transmitter mode.
General Settings page
This page provides basic information for this node:
Name and Description
These tags are useful for differentiation purposes when numerous nodes are being used.
Use the Transmitter Name and Transmitter Description elds to change them.
Time and Date
These are shown only if access to an NTP server is available. The current time and date
are frozen within this page and do not automatically update.
Serial Number
Shows the unique hardware identity applied to this node.
MAC Address
Shows the unique network identity applied to this node.
Software Version
Shows the current main version of internal rmware.
Transmitter Name and Transmitter Description
These elds allow you to change the name and description tags for this node.
Admin Password
Allows you to change the administration password (that protects this menu).
Access Password
Allows you to change the access password that restricts receiver access to this
transmitter node.
ADMIN - General Settings
Transmitter 2
Transmitter General Settings
General
Name Description
Uptime Serial Number
MACAddress
Transmitter Name
Transmitter Description
Admin password
Access password
SoftwareVersion
Node Name Description
25 mins 1701A0000001
00:0F:58:02:DF:3A 1.00
Manage Ports
Advanced
Software Upgrade
TRANSMITTER
Review this node’s general information and update its details.
ApplyCancel
Change
Change
Transmitter 2
Description
Time Date10:37:28 (UTC) Wed 12 Jul 2017
OSD Settings
Setup Channels
Manage Ports
Advanced
Software Upgrade
ADMIN - Channel List
Receiver 1
Administer the Selected Channels
General
#
1
Name
Transmitter 1
Description
Description
RECEIVER
Drag and drop the channels or use the return and arrow keys to reorder the list. Identify,configure
or delete the selected channels or add other transmitters to the channels list.
2
Transmitter 2Description
ADMIN - Channel List
Receiver 1
Administer the Selected Channels
#
2
1
3
4
Name
Transmitter 1
Transmitter 2
Description
Description
Description
OSD Settings
Setup Channels
Manage Ports
Advanced
Software Upgrade
RECEIVER
Drag and drop the channels or use the return and arrow keys to reorder the list. Identify, configure
or delete the selected channels or add other transmitters to the channels list.
Admin password
Admin Login
TRANSMITTER
Transmitter 2
Password for Node Configuration
OKCancel
* Note: The standard hotkey combinations can be changed. See page 21.
