ADDER AdderLink XDIP User Manual

29
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Software Upgrade page
To access this page: From a receiver, enter the OSD menu: Press CTRL + ALT + C hotkeys, then
click the icon to show the Admin menu. Choose the Setup Channels page, click the icon
fortherequiredtransmitternodeandthenclicktheSoftwareUpgradeoption.Seepage26.
The items within this page relate to the software settings, restore/reboot and rmware
upgrade option for the chosen transmitter node.

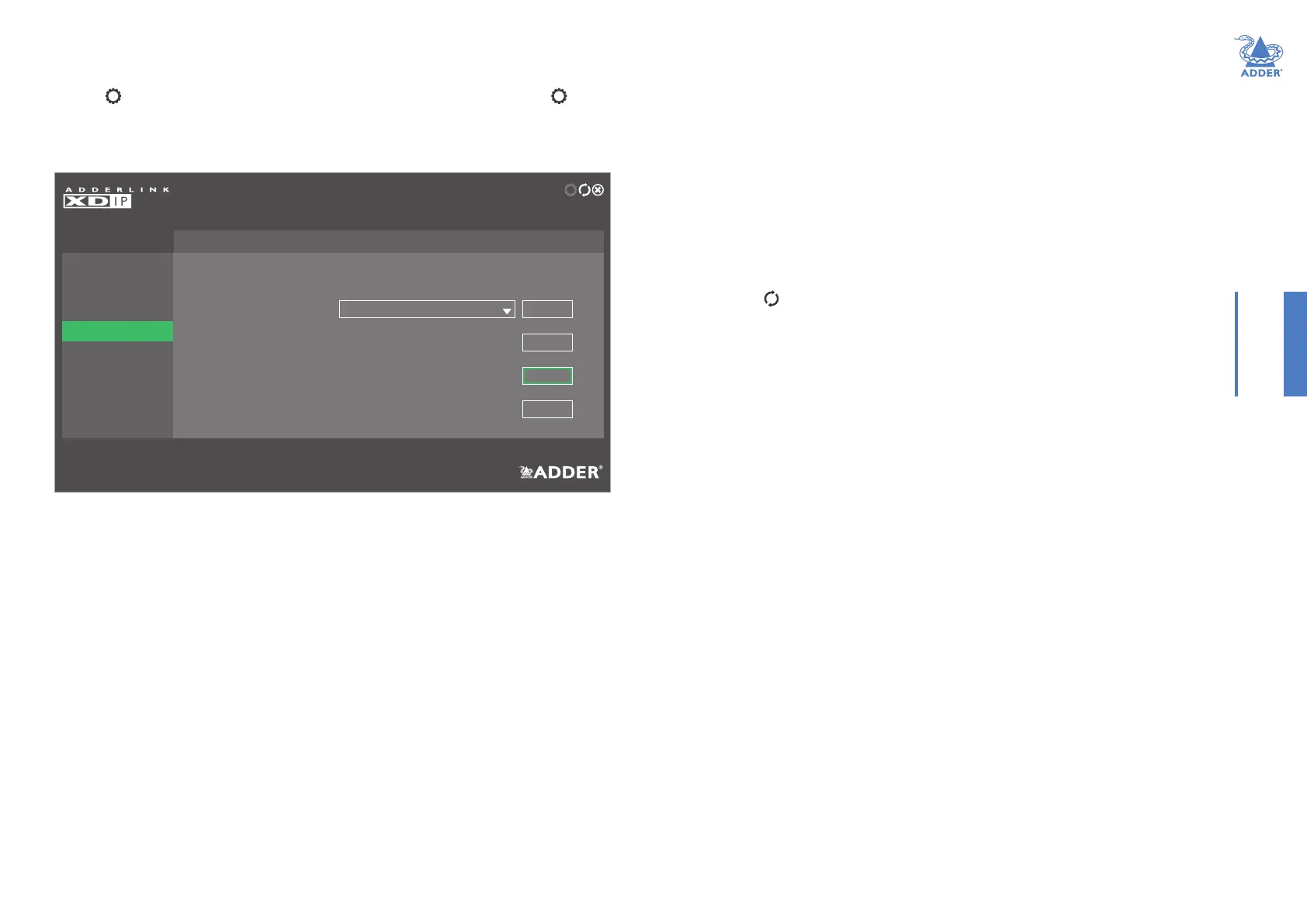

ADMIN - Software Settings and Upgrade
Transmitter 2
General
Manage Ports
Advanced
Software Upgrade
TRANSMITTER
Review the software versions present on this node. Upgrade,switch to the alternative software
version, restore or reboot this node.
Software Settings and Upgrade
Bootloader Recovery
Active Alternate
v1.00 - 18:15 30/07/17 v1.00 - 18:15 30/07/17
v1.00.0066 - 13:37 30/07/17 v1.0021 - 18:15 19/06/17
Select Upgrade File
Switch to AlternativeVersion
Restore Default Settings
Reboot Node
Upgrade
Switch
Restore
Reboot
Select File
Firmware details
Lists the current and recovery Bootloader versions plus the Active image that is currently
running as well as the Alternate (the previously active) image version details.
Select Upgrade File
Any valid rmware upgrade les held (only in the root menu) on a memory stick in one
of the USB sockets, of the receiver node being used for access, will be listed here (if
necessary click the icon to update after insertion). Select the required le name and
click the Upgrade button. The new rmware will be made current and the pre-existing
code moved to the recovery/alternate location.
Switch to Alternative Version
Allows you to change back to the previous rmware version that was running before the
last upgrade.
Restore Default Settings
Click to restore this receiver to its default Start of Life (SoL) condition.
Note:Arestoreoperationwillresetallcongurationsettingsandcannotbeundone.
Reboot Node
Click to reboot this transmitter node.
Supported le systems
When using USB memory sticks, the following le systems are supported:
• FAT
• NTFS
• Non-journaled HFS+

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
