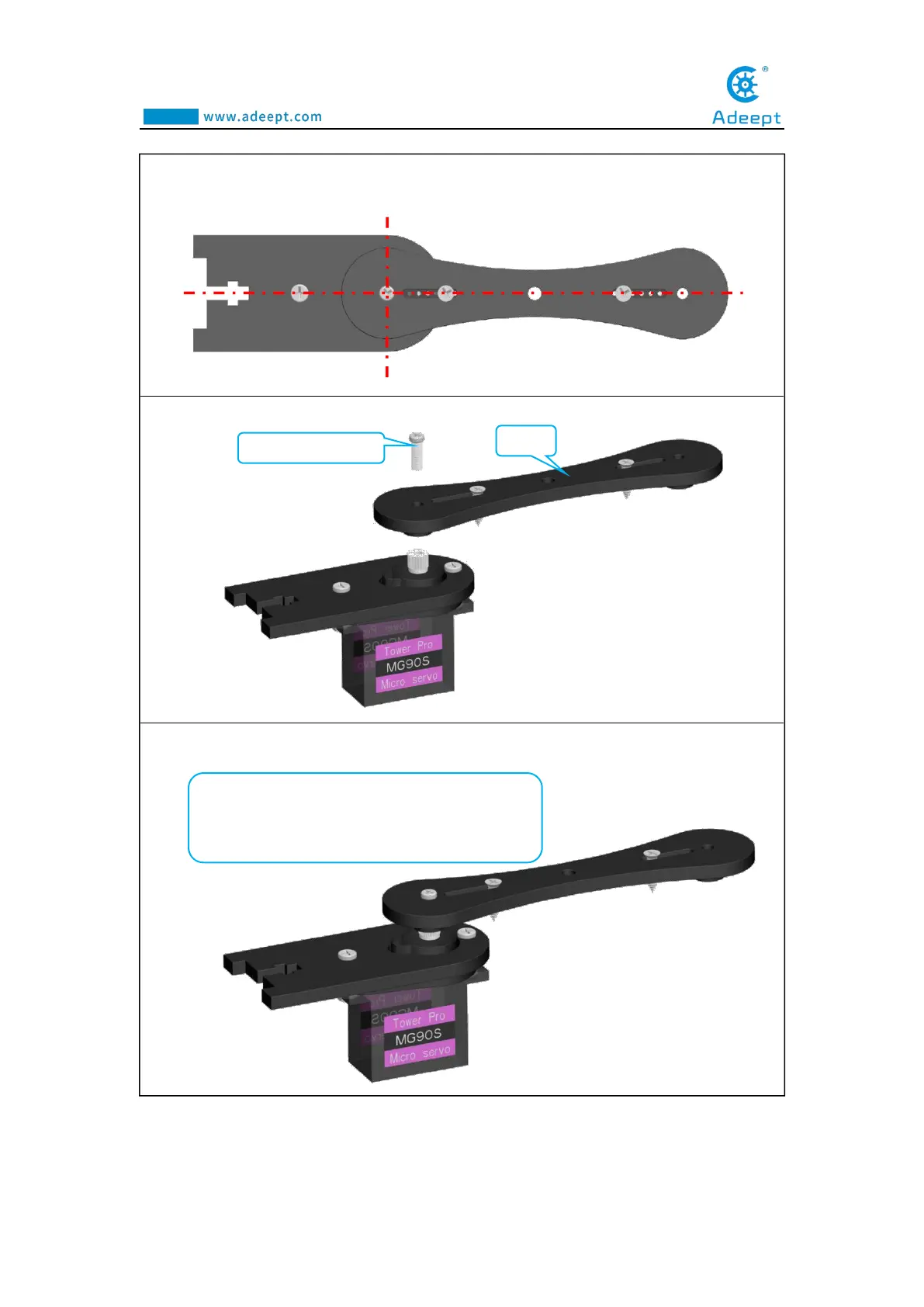

First install the rocker arm on the A07 into the servo. When installing, the mounting hole of
the rocker arm should be aligned with the round hole on the A07. Install it at the angle
shown below.
Assemble the following components
Effect diagram after assembling
8. Then fix one end of A07 to the servo on A06.
A07
M2.5*7 Screw x1
Please note that when installing the servo arm,
please connect the servo to the robot drive Hat.
Robot drive Hat will automatically check the
steering gear angle
