Advanced Flight Systems AF-5600 - Moving Map Display Features; Map Display Elements and Features

Version 15.0 AF-5000 Series Pilot Guide 80

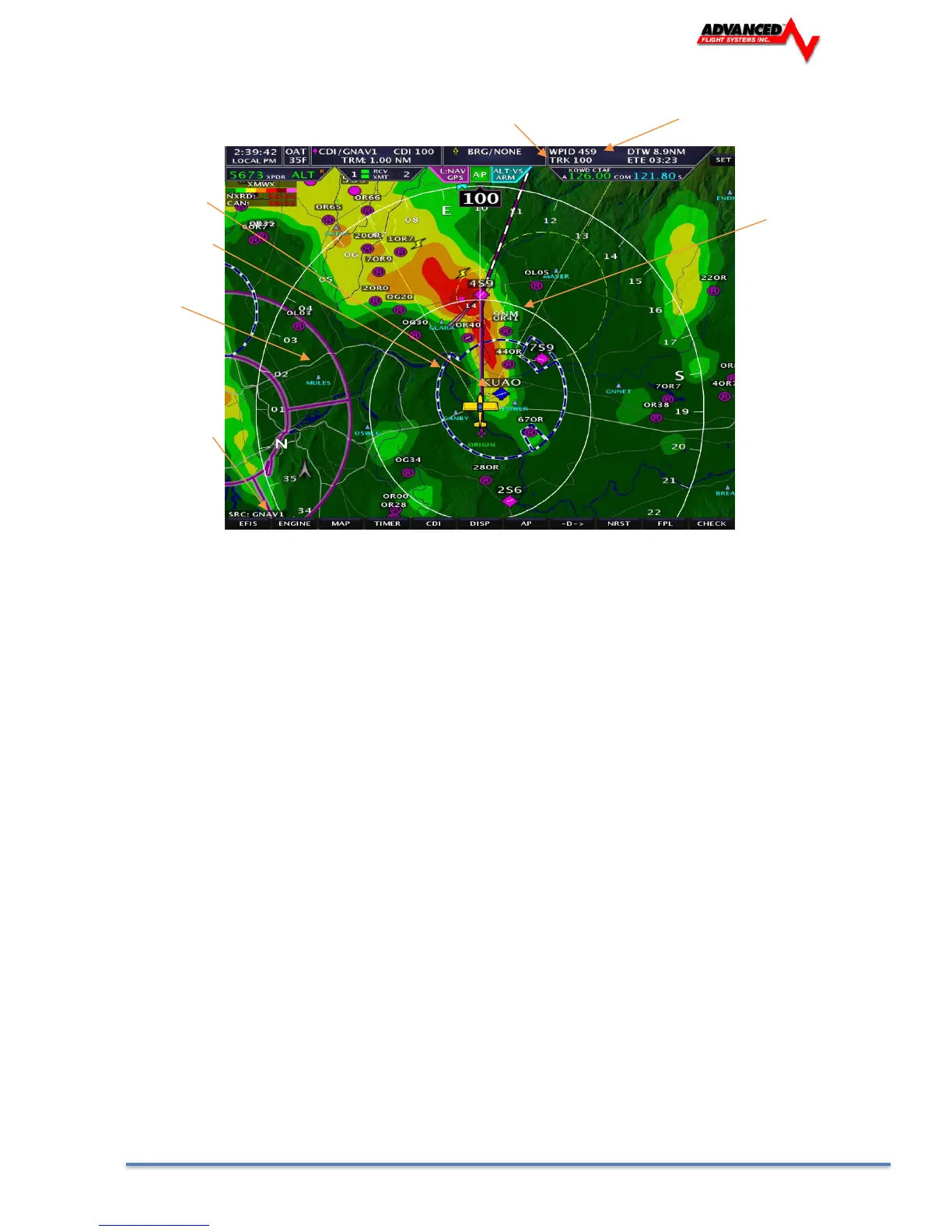

Moving Map Display
GPS Track
METAR Symbol
Class D Airspace
Major Road
Map GPS Source
Map Features
Currently the map will display the following features:
1. Public and Private airports
2. Airspace
3. Intersections, VOR’s
4. Obstructions
5. State Lines
6. Rivers
7. Major Roads
The MAP page can be displayed by swiping left on the PFD EFIS display or by double pressing the [MAP]
button.
