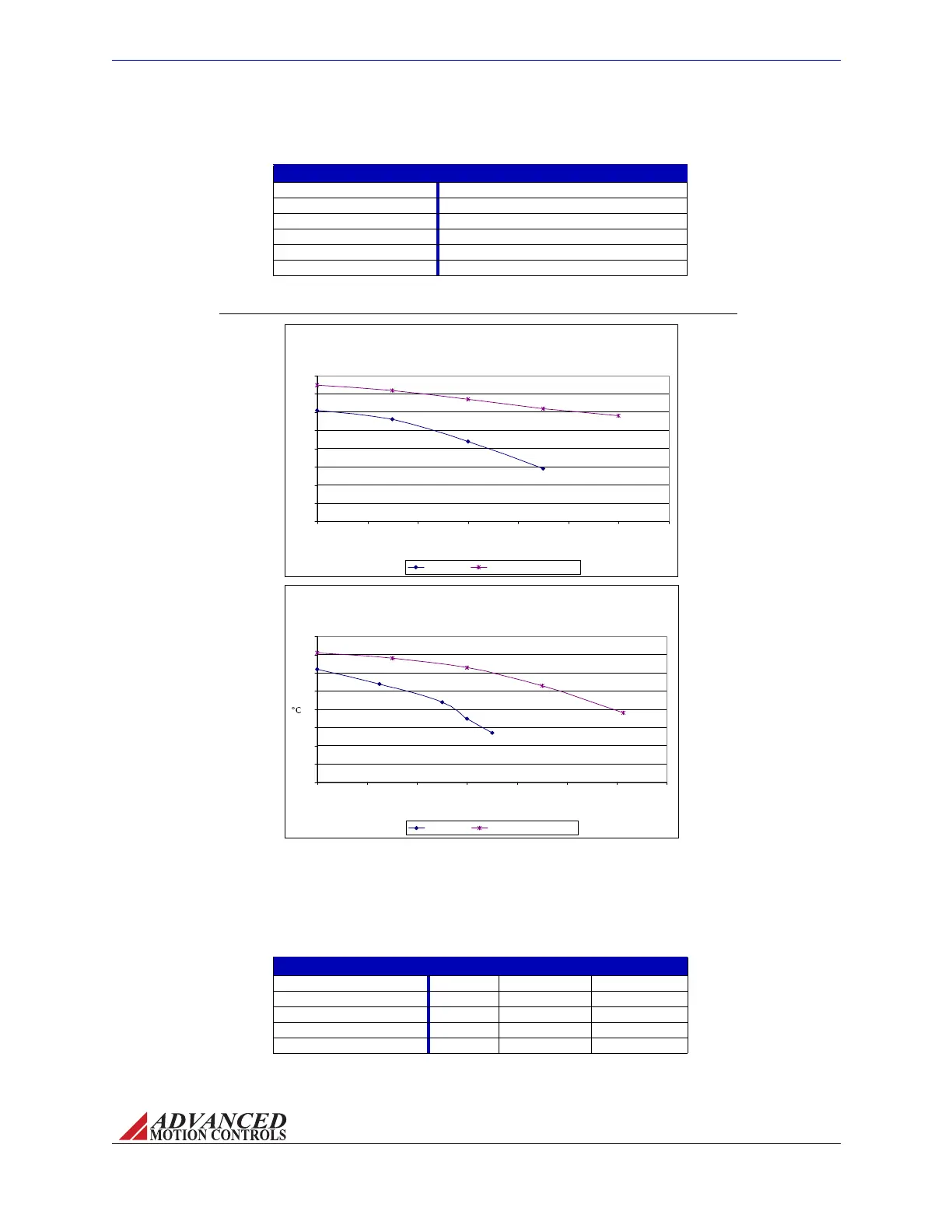

FIGURE A.1 AZ Ambient Temperature Ranges
Maximum Ambient °C
AZ6/AZ12 Drive Models
0
10
20
30
40
50
60
70
80
01234567
Output Current (Amps)
°C
No Heatsink W/ Heatsink (see note 1)*
Maximum Ambient °C
AZ20 Drive Models
0
10
20
30
40
50
60
70
80
0 2 4 6 8 10 12 14
Output Current (Amps)
No Heatsink W/ Heatsink (see note 1)
MNALAZIN-02 39
/ Specifications Tables
TABLE A.5
Parameter Description
Ambient Temperature Range See Figure A.1
Baseplate Temperature Range 0 - 75 C
Humidity 90%, non-condensing
Mechanical Shock 15g, 11ms, Half-sine
Vibration 2 - 2000 Hz @ 2.5g
Altitude 0-3000m
Environmental Specifications
1. The heatsink used in the above tests is a 15" x 22" x 0.65" aluminum plate.
TABLE A.6 Physical
Dimensions
Description Units AZ6/AZ12 AZ20
Height mm (in) 27.51 (1.08) 33.53 (1.32)
Length mm (in) 63.50 (2.50) 63.50 (2.50)
Depth mm (in) 50.80 (2.00) 50.80 (2.0)
Weight kg (oz) 84.9 (3.0) 94.5 (3.3)
Baseplate Thickness mm (in) 6.35 (0.25) 5.79 (0.228)
