9 ADAM-4000 Series User Manual
Chapter 2 Installation Guideline
2.2 Basic Configuration and Hook-up
Before placing a module in an existing network, the module should be configured.
Though all modules are initially configured at the factory, it is recommended to check
if the baud rate is set correctly beforehand.
Default Factory Settings
Baud rate: 9600 Bit/sec.
Address: 01 (hexadecimal)
The basic hook-up for module configuration is shown below.

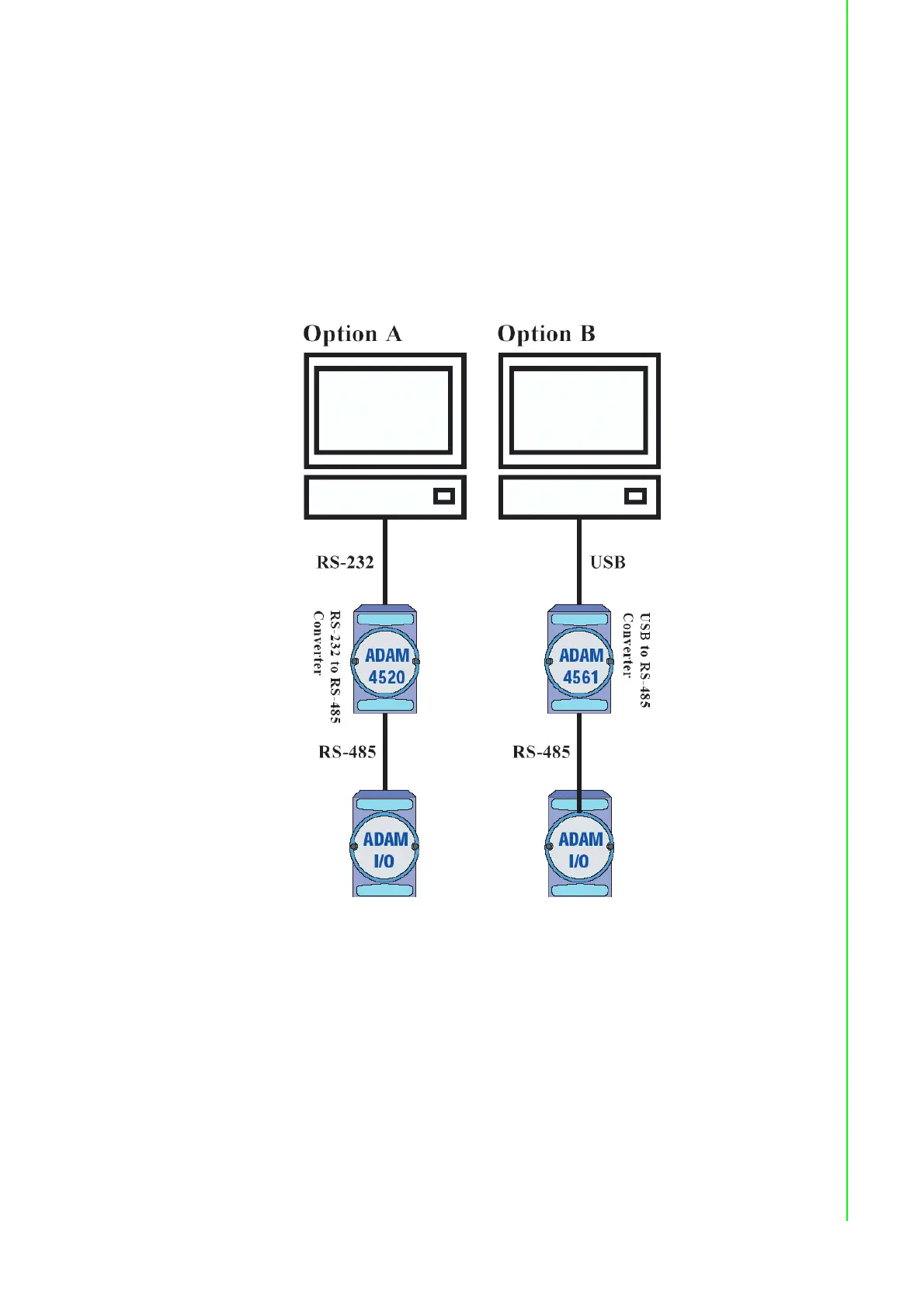

Figure 2.2 Basic Hook-up of ADAM Module to Host Switches
