49 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.8.9.1 Technical specification of ADAM-4018+
3.8.10 Application Wiring

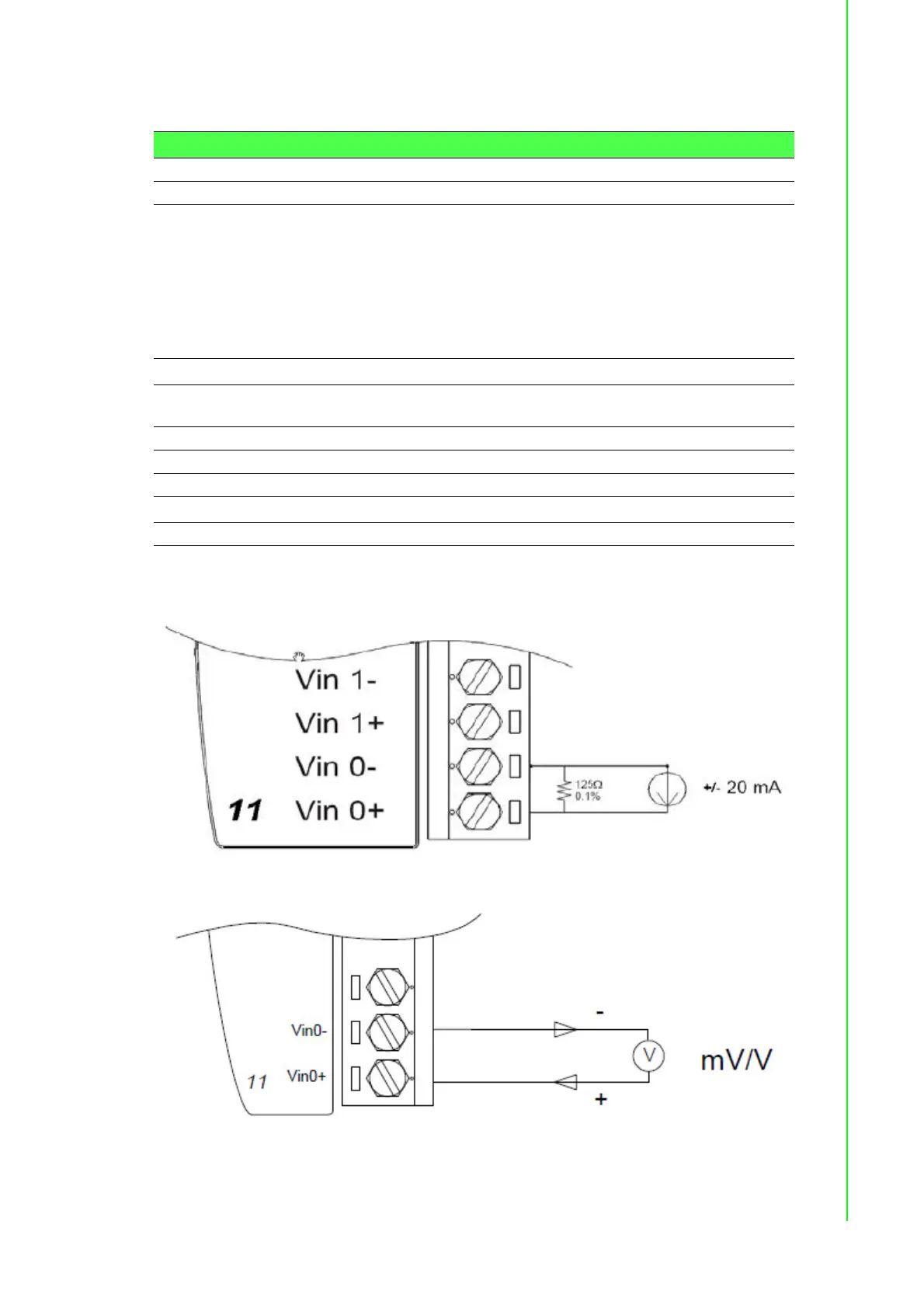

Figure 3.30 Current Input Wiring Diagram of ADAM-4017
Figure 3.31 ADAM-4017 Differential Input Wiring Diagram (Ch0 ~ Ch5)
Table 3.4: Technical specification of ADAM-4018+
Channel 8
Input Type T Thermocouple
Input range and
T/C type
±20 mA, 4~20 mA
J 0 ~ 760° C
K 0 ~ 1370° C
T -100 ~ 400° C
E 0 ~ 1000° C
R 500 ~ 1750° C
S 500 ~ 1750° C
B 500 ~ 1800° C
Isolation Voltage 3000 V
DC
Fault and over-voltage
protection
Withstands over voltage up to ±35 V
Sampling Rate 10 sample/sec (total)
Input Impedance Voltage: 20 M, Current: 120
Accuracy ±0.1% or better
Power Consumption 0.8 W @ 24V
DC
I/O Connector Type 10 pin plug-in terminal
