31 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.3.2 Application Wiring

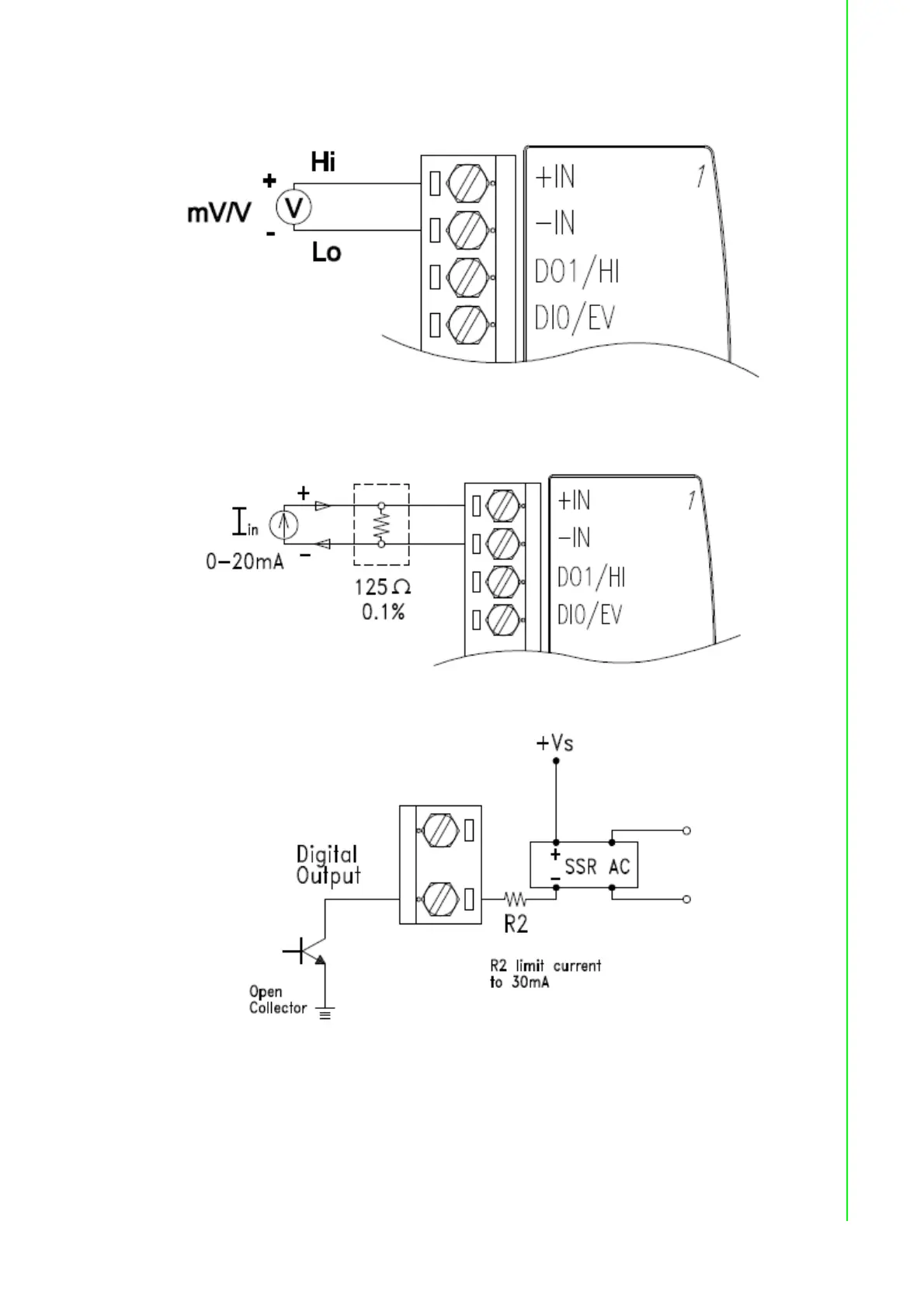

Figure 3.10 ADAM-4012 Millivolt and Volt Input Wiring Diagram
Figure 3.11 ADAM-4012 Process Current Input Wiring Diagram
Figure 3.12 ADAM-4012 Digital Output Wiring Diagram Used with SSR (HI-LO
alarm)
