35 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.5 ADAM-4015 6-channel RTD Input Module
A RTD module is popularly used for temperature measurement. Unlike the traditional
design, the ADAM-4015 RTD Input Module provides six RTD input channels for dif-
ferent types of RTD signal like as Pt, Ni, Balco. It is an effective solution in industrial
& building automation. Normally, broken external wires will lead to an inaccurate cur-
rent value; however, the ADAM-4015 provides a broken wire detection function. This
module can accept RTD sensors that have two or three wires. After the V2.04 of
ADAM-4015, ADAM-4015 can support the “BA1 -200~600°C”.
Please note that pin 26 is defined as GND and it is reserved.

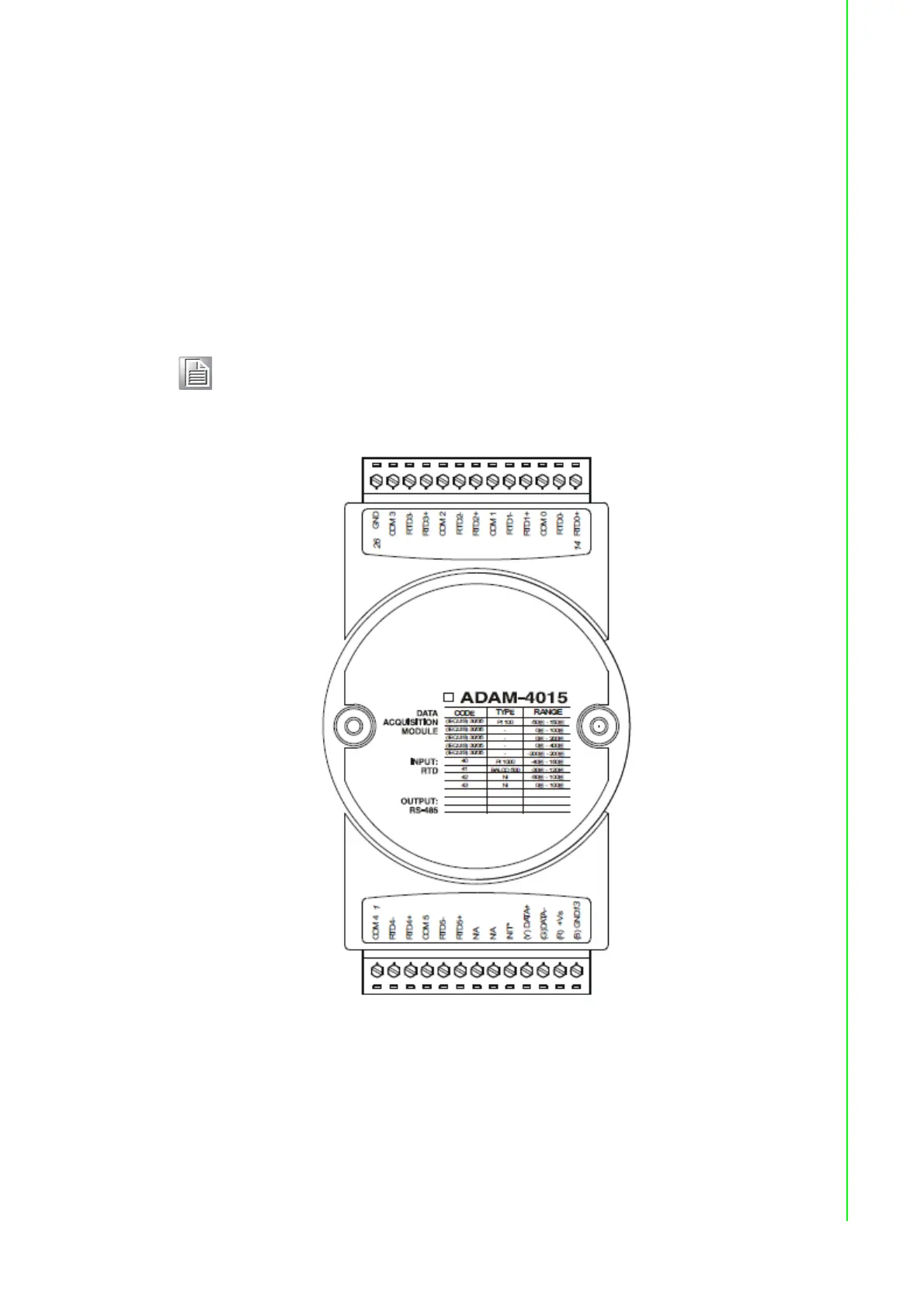

Figure 3.17 ADAM-4015 6-channel RTD Input Module
Note! Pin 26 is defined as GND and it is reserved.
