ADAM-4000 Series User Manual 346
D.2 The Procedure for ADAM-4000 Series
Installation Guide
When user first time gets ADAM-4000 modules, he can refer following procedure to
configure and operate. Especially note that new ADAM-4000 modules will have
default factory settings with Address setting 1, and data format 9600, N, 8, 1. Rede-
fine the address to avoid ID conflict if two or more new modules are used in the same
network.
Standard Installation Procedures
1. Prepare the install environment
Host computer
Isolated RS-232/RS-485 Converter
ADAM module
2. Install ADAM-4000-5000 utility in host computer
3.Wiring for ADAM-4000 module

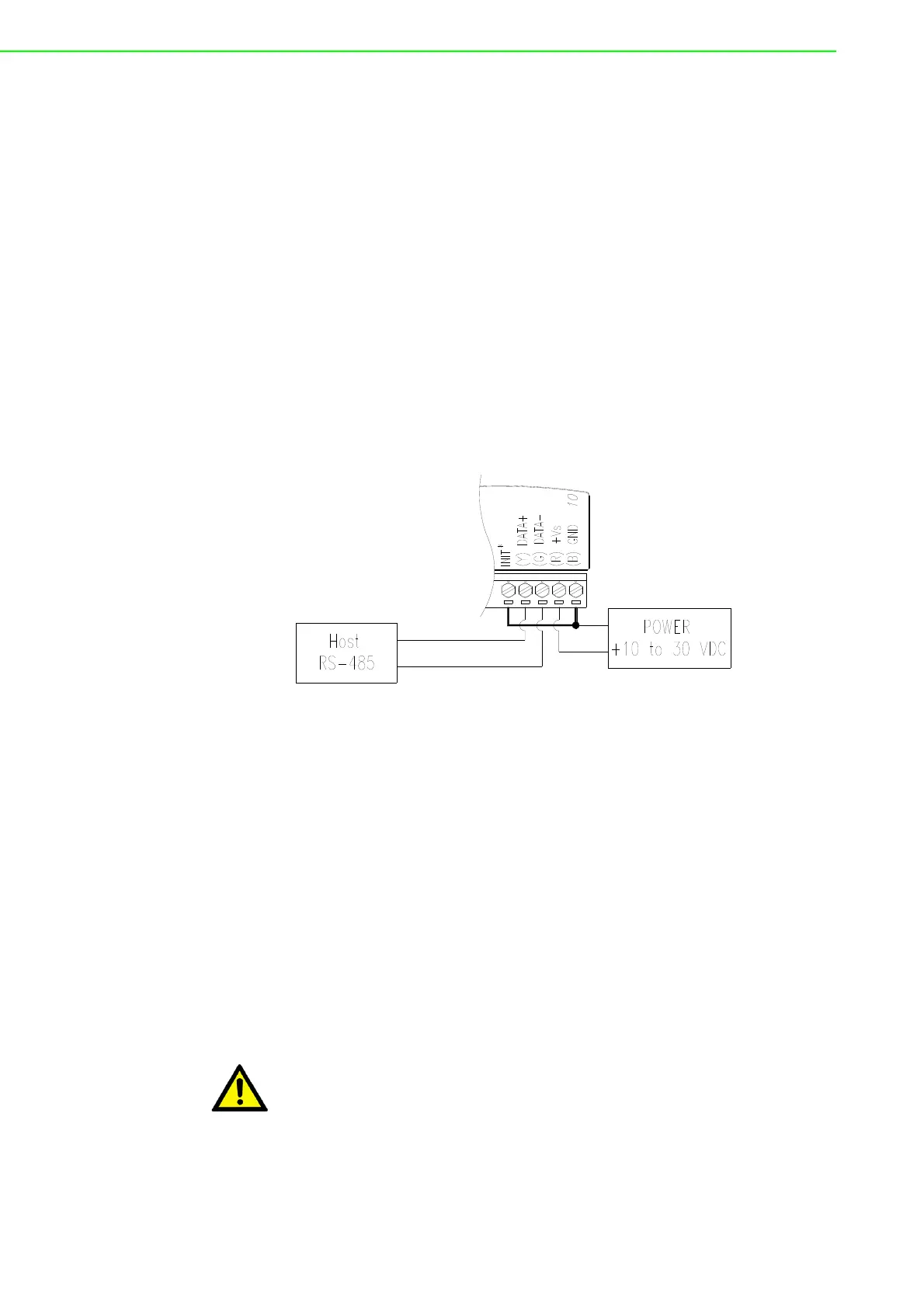

Power supply & Communication Wiring
Move hardware switch to Initial mode (For some older Adam models, use an exter-
nal wire to connect the INIT* terminal to the GND terminal. Booting the module
while connecting the INIT* terminal with the module’s GND terminal forces the config-
uration into a known state called the INIT* state.)
INIT* state defaults:
Baud rate: 9600
Address: 00h
Checksum: disabled
Forcing the module in INIT* state does not change any parameters in the module’s
EEPROM. When the module is in the INIT* state with its INIT* and GND terminals
shorted, all configuration settings can be changed, and the module will respond to all
other commands normally.
Caution! Init Mode
When the switch is set to the initial mode, the module will operate with
its factory settings. (Address 0 with data format 9600, N, 8, 1).
Normal Mode
When the switch is set to the normal mode, the module will operate
with user-defined settings. A power reset will not alter these settings.
