Advantech AIMB-276 - Universal Serial Bus Port 3.1 Gen2 #1; #2 (USB12); Rj45 #1(Lan1)

AIMB-276 User Manual 88

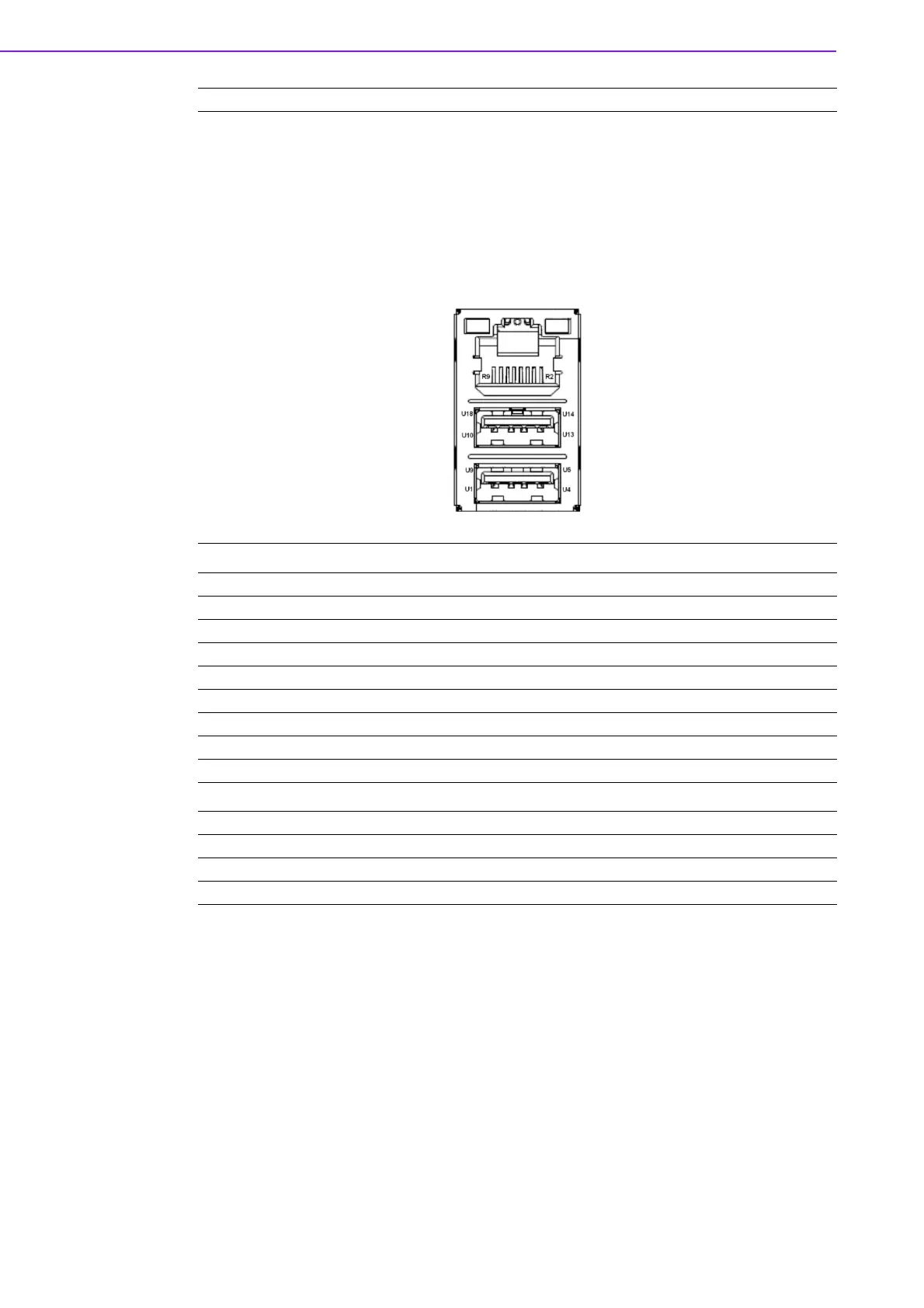

A.5 Universal Serial Bus Port 3.1 Gen2 #1/ #2
(USB12)
A.6 RJ45 #1(LAN1)
B19 USB3X7_z_TX+ B29 USB3X8_z_TX+
Pin Signal Pin Signal
U1 +USBV1 U10 +USBV1
U2 USB_D1- U11 USB_D2-
U3 USB_D1+ U12 USB_D2+
U4 GND U13 GND
U5 USB31X1_z_RX- U14 USB31X2_z_RX-
U6 USB31X1_z_RX+ U15 USB31X2_z_RX+
U7 GND U16 GND
U8 USB31X1_z_TX- U17 USB31X2_z_TX-
U9 USB31X1_z_TX+ U18 USB31X2_z_TX+
Pin Signal Pin Signal
R2 MDI_LAN1_DP0 R6 MDI_LAN1_DP2
R3 MDI_LAN1_DN0 R7 MDI_LAN1_DN2
R4 MDI_LAN1_DP1 R8 MDI_LAN1_DP3
R5 MDI_LAN1_DN1 R9 MDI_LAN1_DN3
