Advantech AIMB-276 - Direct Current Input Connector (DCIN1); Displayport1;2 (DP12)

AIMB-276 User Manual 86

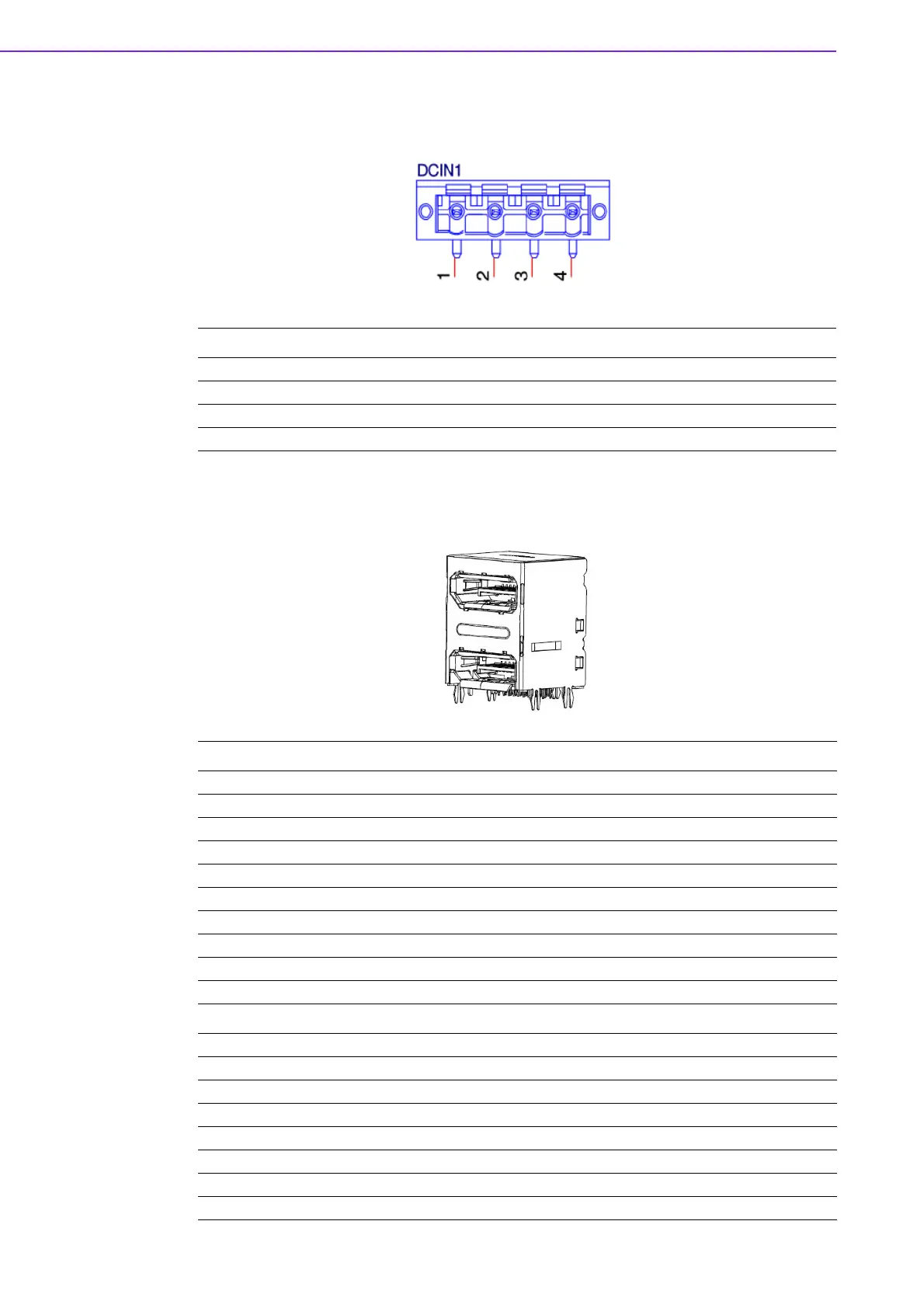

A.1 Direct Current input connector (DCIN1)
A.2 DisplayPort1/2 (DP12)
Pin Signal
1GND
2 +VDCIN_ADP_IN
3 +VDCIN_ADP_IN
4GND
Pin Signal Pin Signal
1 DP1_0+ 11 GND
2 GND 12 DP1_3-
3 DP1_0- 13 DP1_AUX_EN#
4 DP1_1+ 14 GND
5 GND 15 DP1_AUX+
6 DP1_1- 16 GND
7 GND 17 DP1_AUX-
8 GND 18 DP1_HPD
9 DP1_2- 19 GND
10 DP1_3+ 20 +V3.3_DP
Pin Signal Pin Signal
21 DP2_0+ 31 GND
22 GND 32 DP2_3-
23 DP2_0- 33 DP2_AUX_EN#
24 DP2_1+ 34 GND
25 GND 35 DP2_AUX+
26 DP2_1- 36 GND
27 DP2_2+ 37 DP2_AUX-
28 GND 38 DP2_HPD
