Advantech AIMB-276 - PCI Express X16 Slot (PCIEX16_1)

AIMB-276 User Manual 92

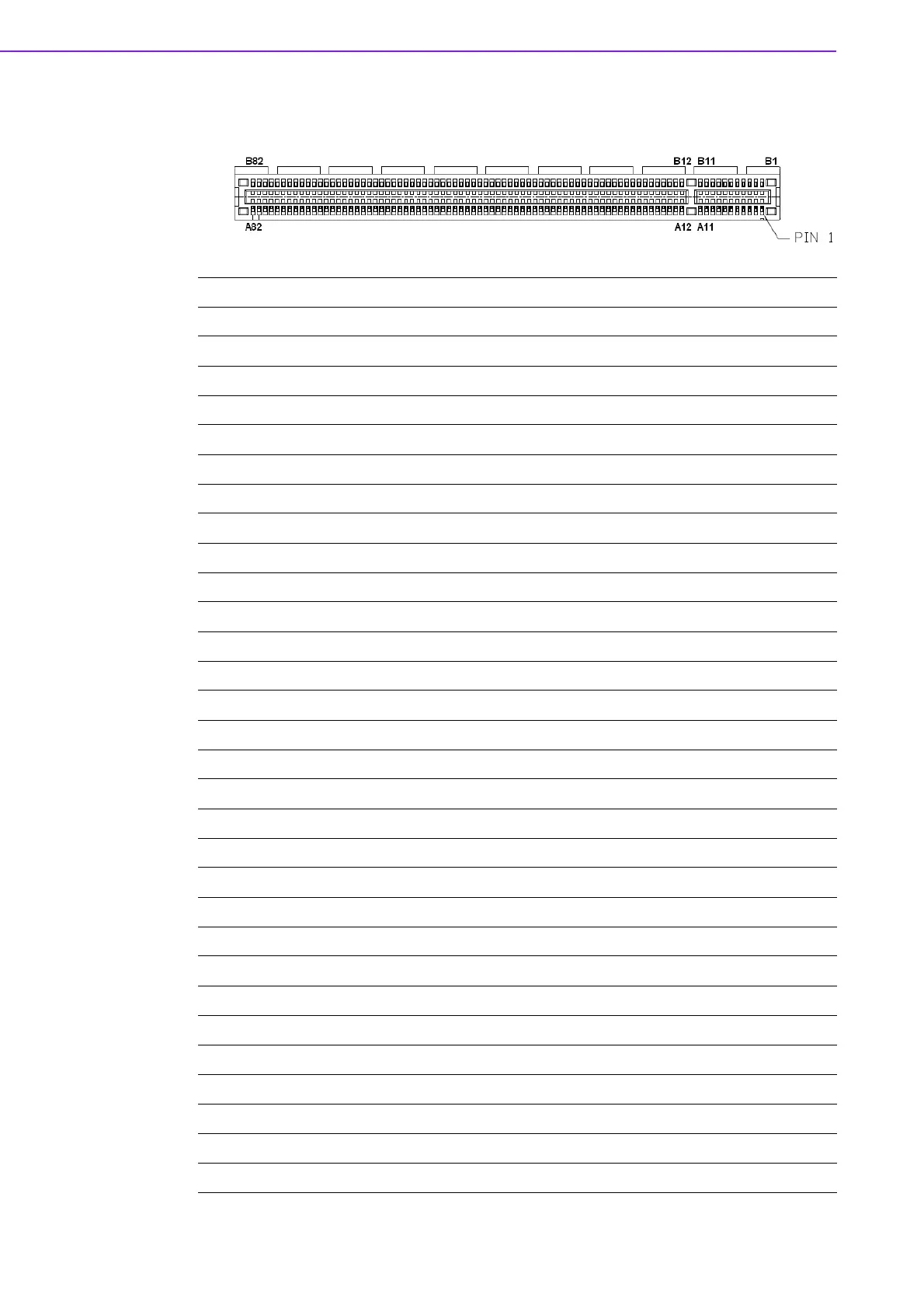

A.15 PCI Express x16 slot (PCIEX16_1)
Pin Signal Pin Signal
B1 +12V A1 PRSNT1#
B2 +12V A2 +12V
B3 +12V A3 +12V
B4 GND A4 GND
B5 SMB_CLK A5 Reserved
B6 SMB_DATA A6 Reserved
B7 GND A7 Reserved
B8 +3.3V A8 Reserved
B9 Reserved A9 +3.3V
B10 +3.3VAUX A10 +3.3V
B11 WAKE# A11 PWRGD
B12 Reserved A12 GND
B13 GND A13 REFCLK+
B14 TX0+ A14 REFCLK-
B15 TX0- A15 GND
B16 GND A16 RX0+
B17 Reserved A17 RX0-
B18 DETECT# A18 GND
B19 TX1+ A19 CONFIG1
B20 TX1- A20 GND
B21 GND A21 RX1+
B22 GND A22 RX1-
B23 TX2+ A23 GND
B24 TX2- A24 GND
B25 GND A25 RX2+
B26 GND A26 RX2-
B27 TX3+ A27 GND
B28 TX3- A28 GND
B29 GND A29 RX3+
B30 Reserved A30 RX3-
