29 AIMB-276 User Manual
Chapter 2 Connecting Peripherals

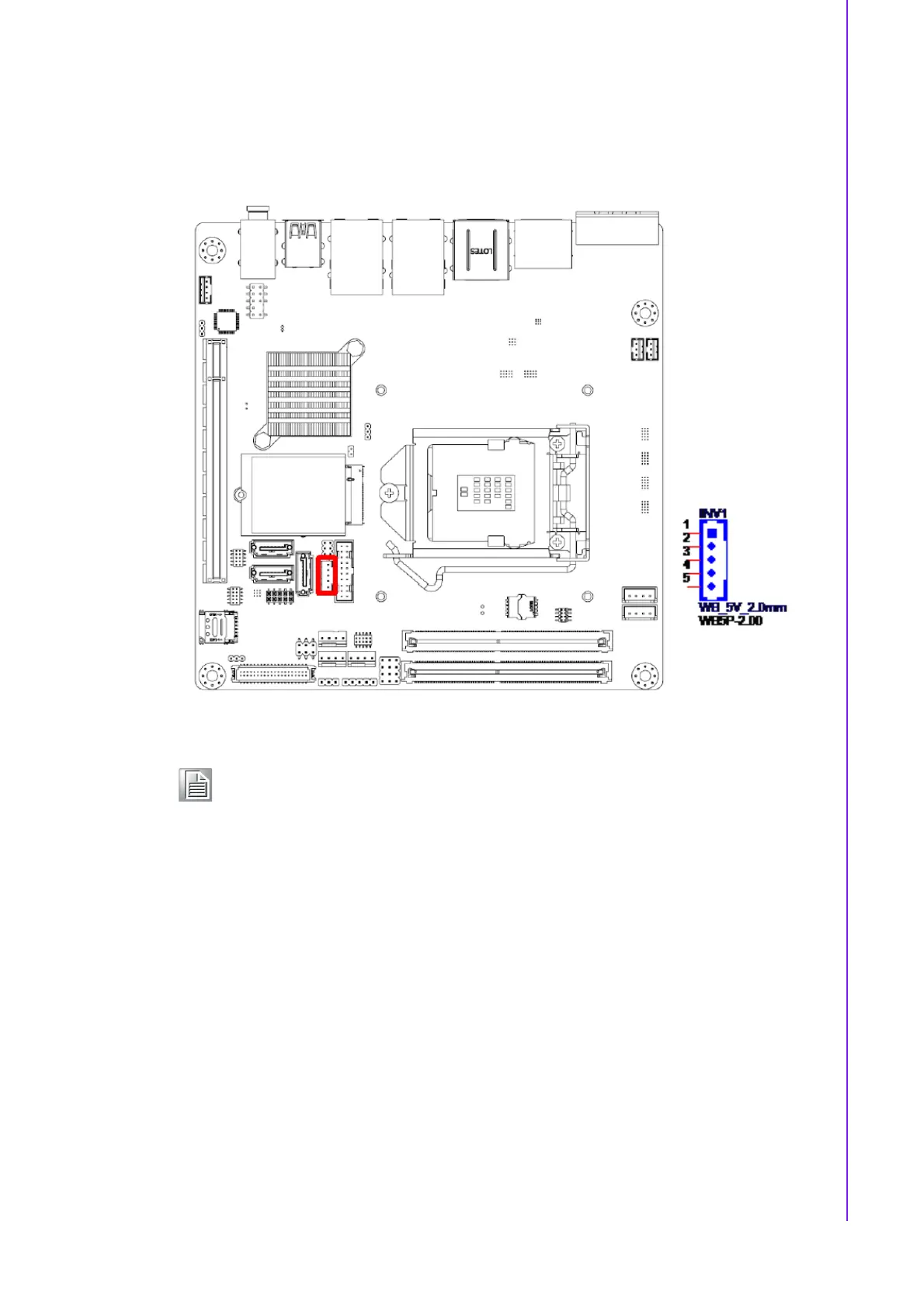

2.13 LVDS Backlight Inverter Power Connector
(INV1)
Note!
Signal Description
Signal Signal Description
VR Vadj=0.75 V
(Recommended:4.7 kΩ>1/16 W)
EN BKL LC D ba ckl ight ON/O FF c ont rol si gna l
