97 AIMB-276 User Manual
Appendix A I/O Pin Assignments

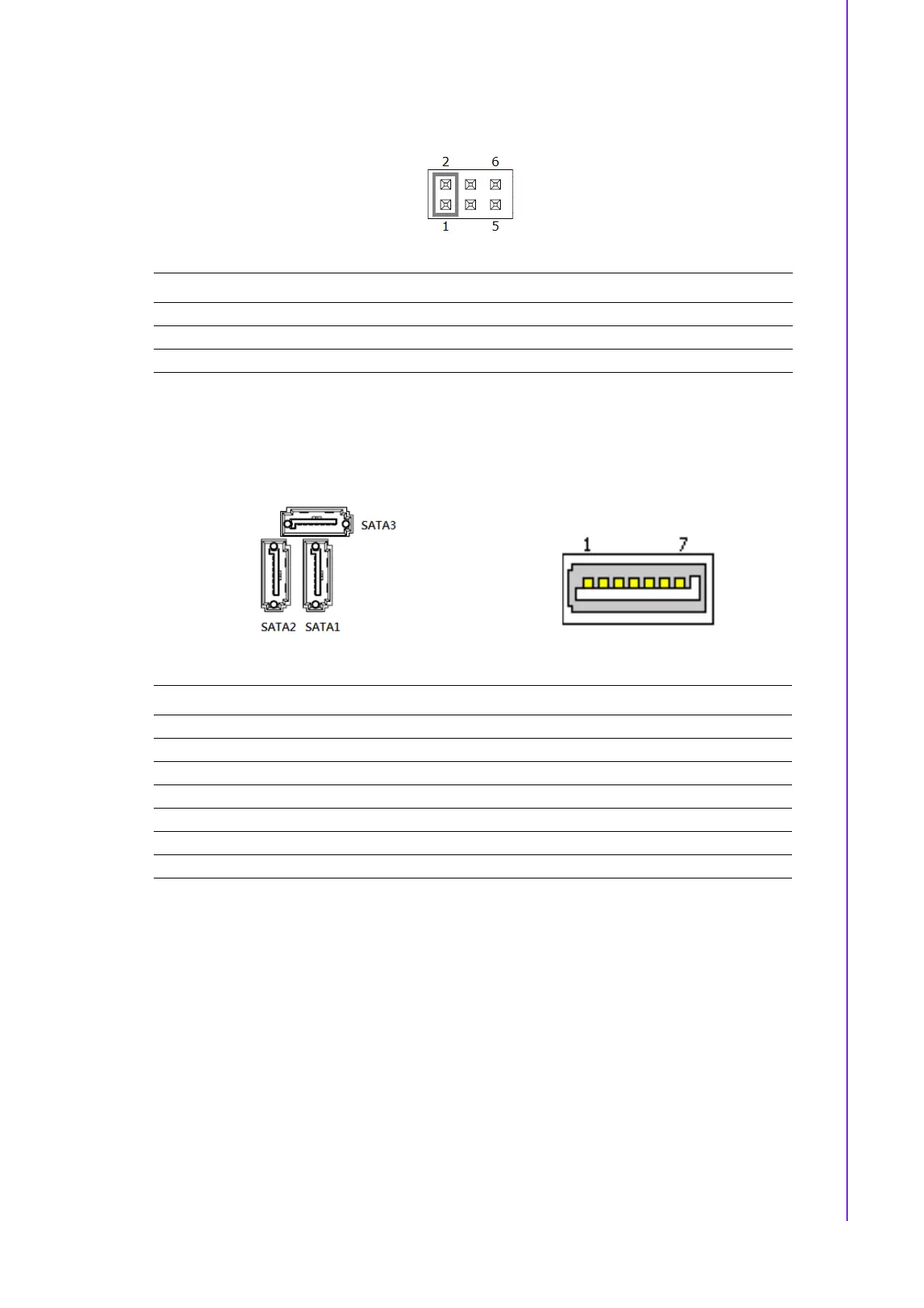

A.21 COM1 RI# selection pin header (JSETCOM1_V1)
A.22 Serial ATA interface connector #1~#3
(SATA1~SATA3)
Pin Signal Pin Signal
1 RI# [1] 2 Advantech define
3 Advantech define 4 +5V
5 +12V 6 Advantech define
Pin Signal
1GND
2TX+
3TX-
4GND
5RX-
6RX+
7GND
