AIMB-276 User Manual 100

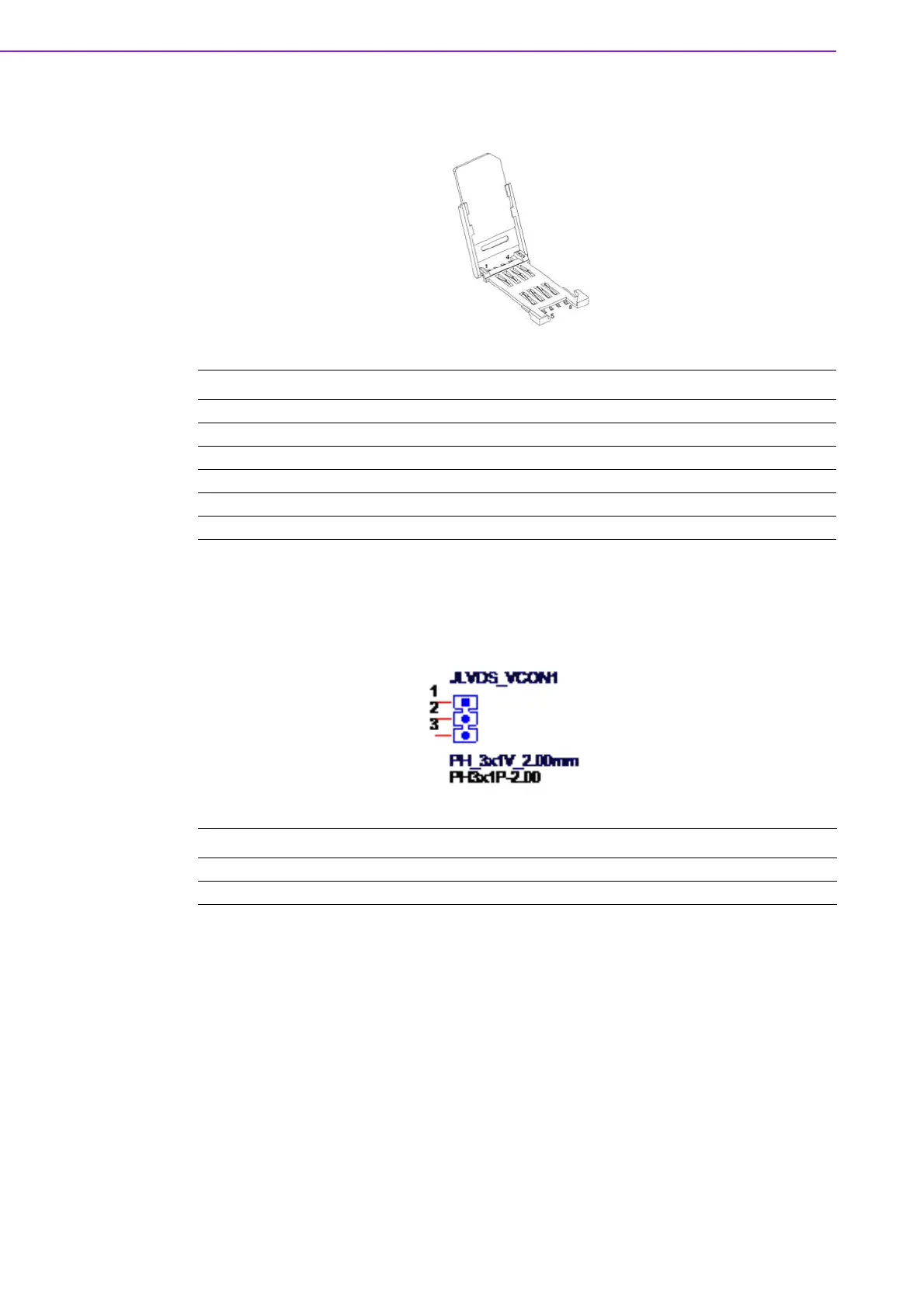

A.27 Subscriber Identity Module connector (SIM1)
A.28 LVDS VESA, JEIDA format selection pin header
(JLVDS_VCON1)
Pin Signal
C1 UIM-PWR
C2 UIM-RESET
C3 UIM-CLK
C5 GND
C6 NC
C7 UIM-DATA
Pin Signal Pin Signal
1 +V3.3 2 LVDS1_VCON
3GND
