105 AIMB-276 User Manual
Appendix A I/O Pin Assignments

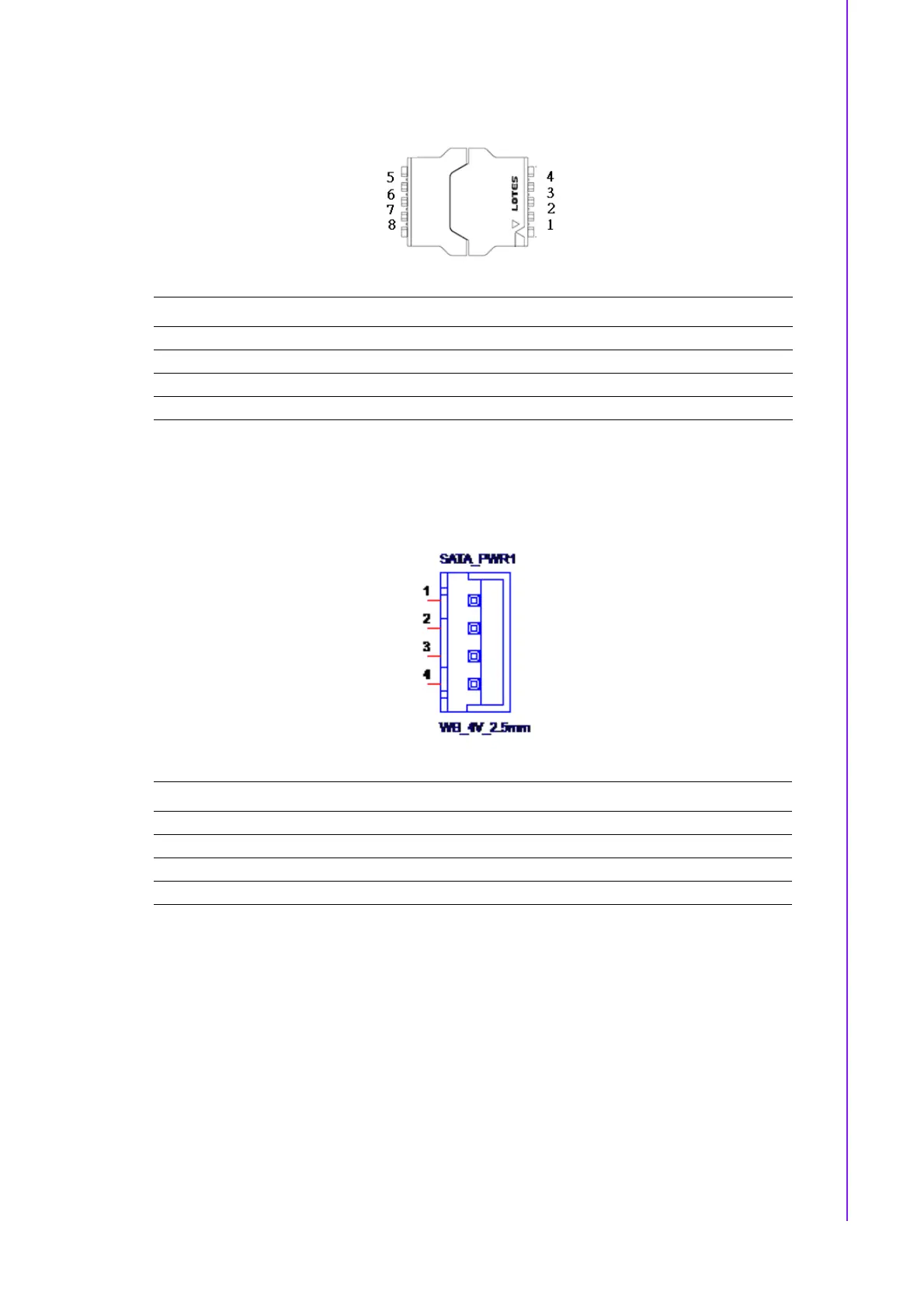

A.37 SPI BIOS flash socket (SPI1)
A.38 Serial ATA interface power connector
(SATA_PWR1/2)
Pin Signal Pin Signal
1CS#5MOSI
2MISO6SCLK
3 WP# / IO2 7 HOLD# / IO3
4 GND 8 +3.3V
Pin Signal
1+5V
2GND
3GND
4+12V
