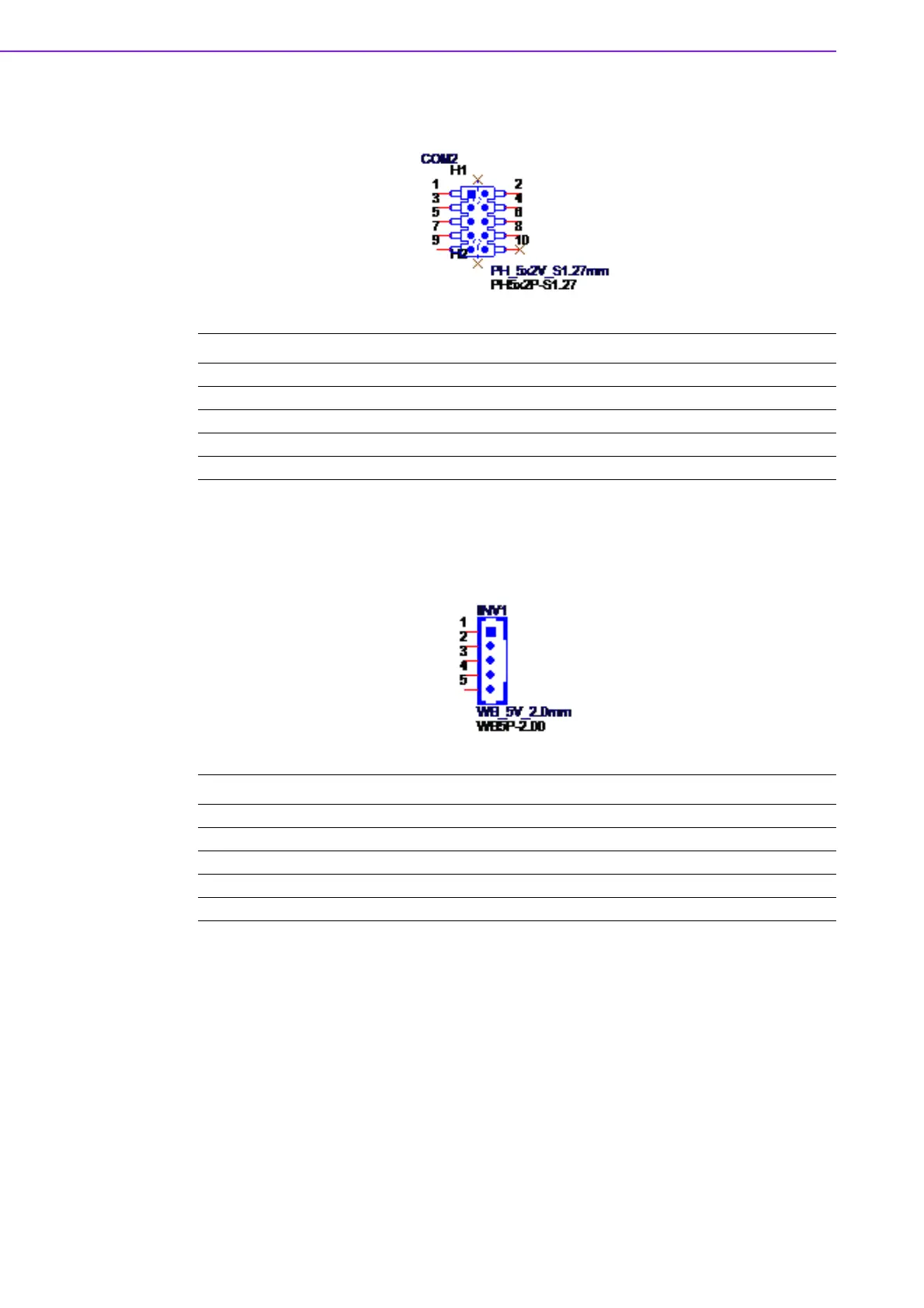

A.23 COM2 pin header ( S1.27MM) (COM2)
A.24 EDP/LVDS Backlight inverter power connector
(INV1)
Pin Signal Pin Signal
1 COM2_422_485_TX- 6 COM2_CTS#
2 COM2_DSR# 7 COM2_422_RX-
3 COM2_422_485_TX+ 8 COM2_RI#
4COM2_RTS# 9 GND
5 COM2_422_RX+ 10 NC
Pin Signal
1 +V12_INV1
2GND
3 INV1_ENBKL
4 INV1_VBR
5 +V5_INV1
