Advantech AIMB-276 - Universal Serial Bus Port 3.1 Gen1 #9; #10 Box Header (USB910)

AIMB-276 User Manual 96

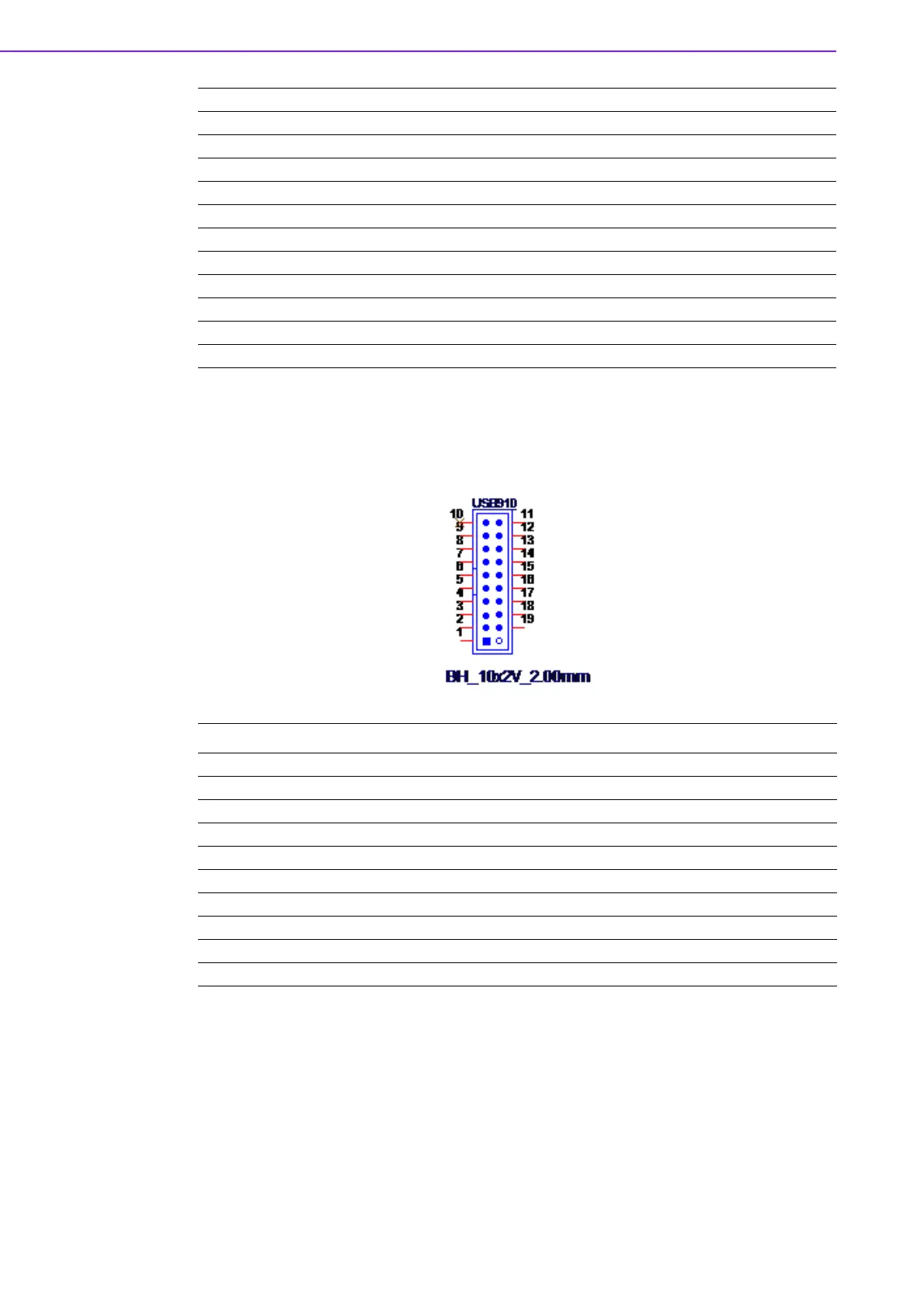

A.20 Universal Serial Bus Port 3.1 Gen1 #9/ #10 box
header (USB910)
27 GND 65 N/C
28 N/C 66 N/C
29 M.2_PCIE_RX12- 67 M.2_RESET#_R
30 UIM-RESET 68 PCH_SUSCLK
31 M.2_PCIE_RX12+ 69 M.2_CONFIG_1
32 UIM-CLK 70 +V3.3_M.2_B
33 GND 71 GND
34 UIM-DATA 72 +V3.3_M.2_B
35 M.2_PCIE_TX12- 73 GND
36 UIM-PWR 74 +V3.3_M.2_B
37 M.2_PCIE_TX12+ 75 M.2_CONFIG_2
38 N/C
Pin Signal Pin Signal
1 +USB2V910 11 USB_D10+
2 USB3X9_z_RX- 12 USB_D10-
3 USB3X9_z_RX+ 13 GND
4 GND 14 USB3X10_z_TX+
5 USB3X9_z_TX- 15 USB3X10_z_TX-
6 USB3X9_z_TX+ 16 GND
7 GND 17 USB3X10_z_RX+
8 USB_D9- 18 USB3X10_z_RX-
9 USB_D9+ 19 +USB2V910
10 NC
