Advantech AIMB-276 - COM1 Pin Header ( S1.27 MM) (COM1); Low Pin Count Interface Connector (LPC1)

99 AIMB-276 User Manual
Appendix A I/O Pin Assignments

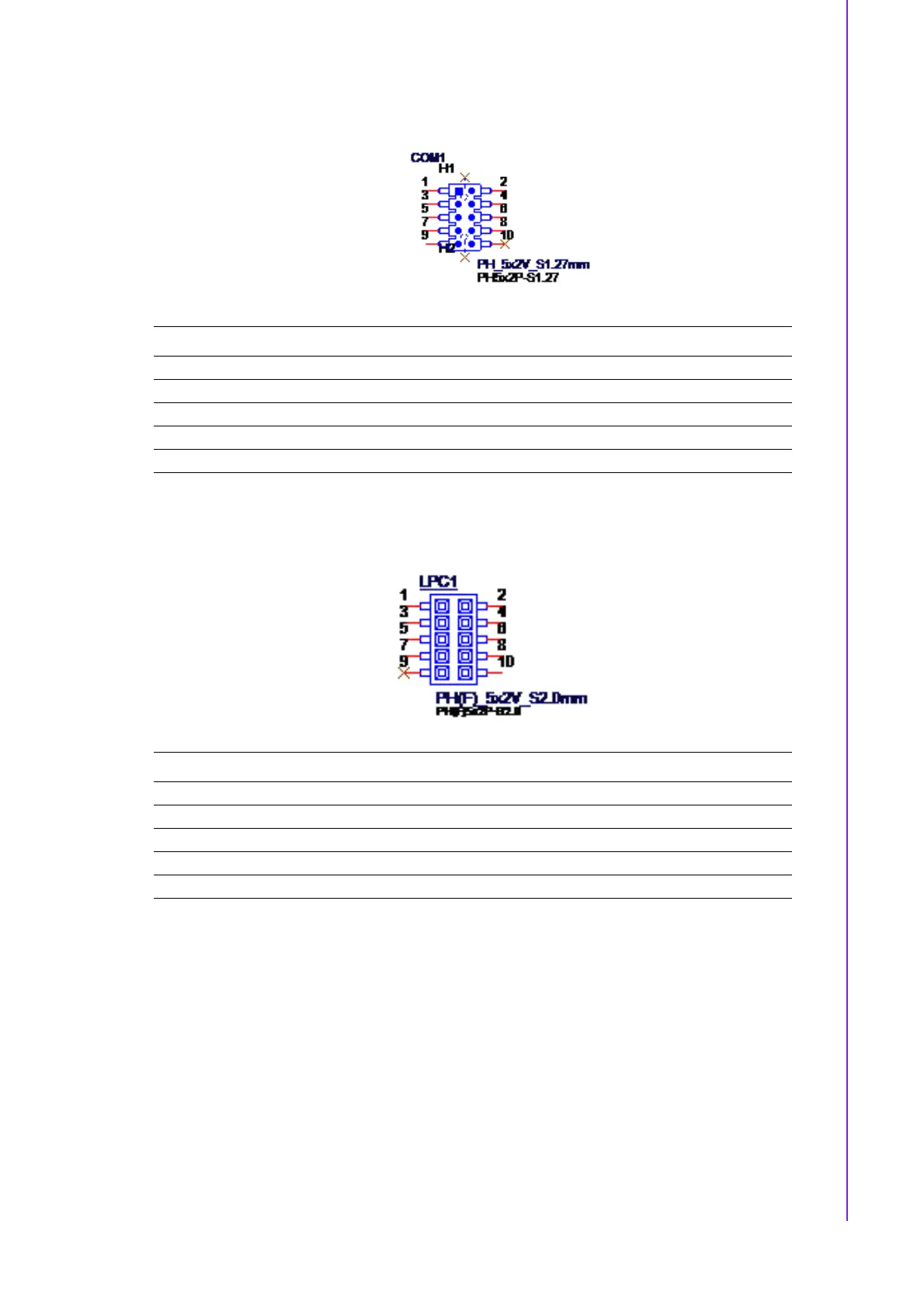

A.25 COM1 pin header ( S1.27MM) (COM1)
A.26 Low pin count interface connector (LPC1)
Pin Signal Pin Signal
1 COM1_DCD# 6 COM1_CTS#
2 COM1_DSR# 7 COM1_DTR#
3 COM1_SIN 8 COM1_RI_V#
4 COM1_RTS# 9 GND
5 COM1_SOUT 10 NC
Pin Signal Pin Signal
1 LPC_PCH_AD1 2 CLK24M_PCH_eSPI_LPC1
3 LPC_PCH_AD0 4 PLTRST_eSPI_LPC#
5 +V3.3 6 LPC_PCH_FRAME#
7 GND 8 LPC_PCH_AD3
11 NC 12 LPC_PCH_AD2
