103 AIMB-276 User Manual
Appendix A I/O Pin Assignments

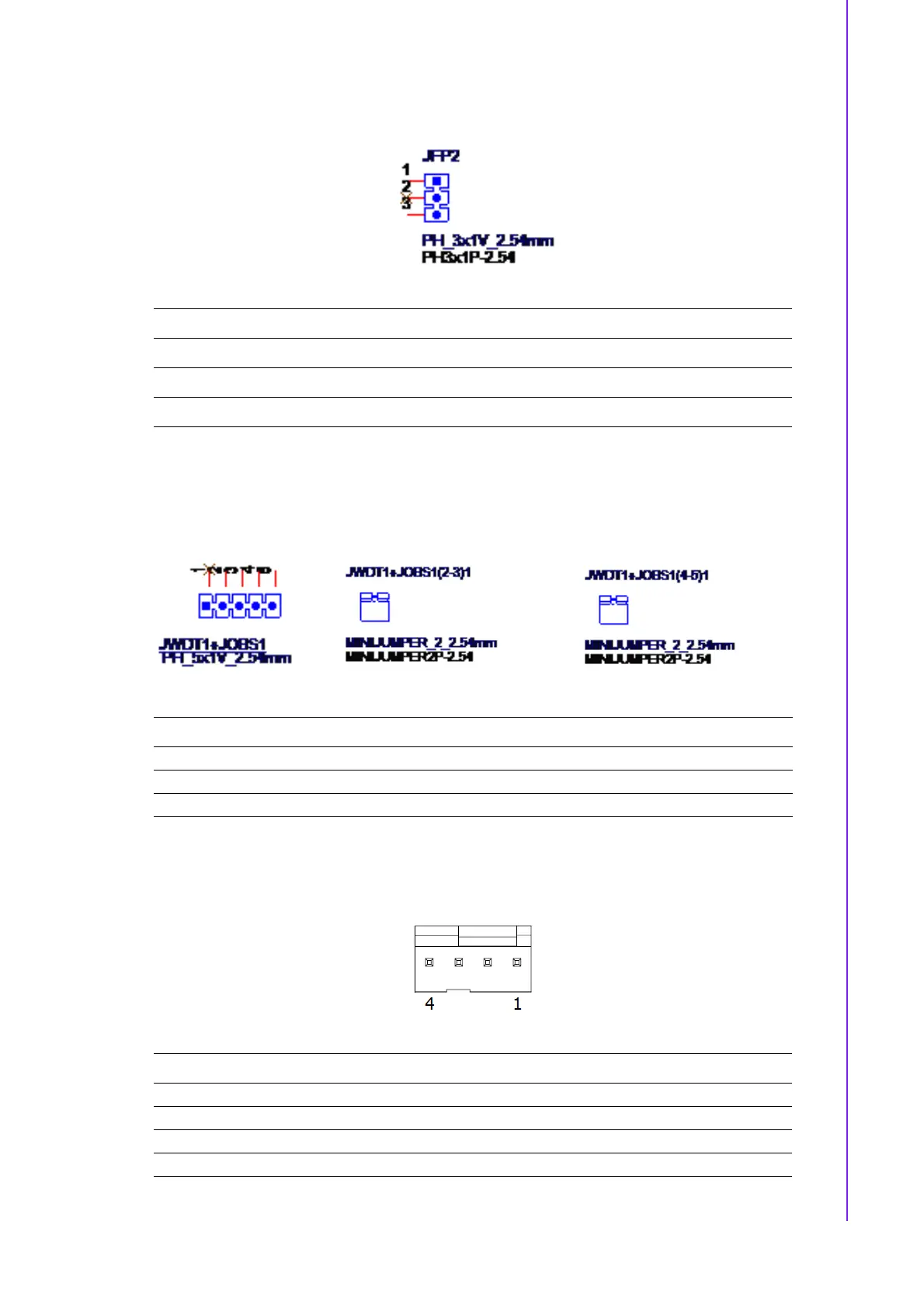

A.32 Power LED and keyboard lock pin header (JFP2)
A.33 Watchdog timer output and OBS beep
(JWDT1+JOBS1)
A.34 CPU FAN connector (CPUFAN1)
Pin Signal
1 SIO_SUSLED_R
2NC
3 SIO_SUSLED
Pin Signal Pin Signal
1NC2SIO_WG#
3 FP_SYS_RESET# 4 SIO_ERR_BEEP
5 SIO_OBS_BEEP
Pin Signal
1GND
2 CPU FAN VCC
3 CPU FAN SPEED
4 CPU FAN PWM
