19 AIMB-276 User Manual
Chapter 2 Connecting Peripherals

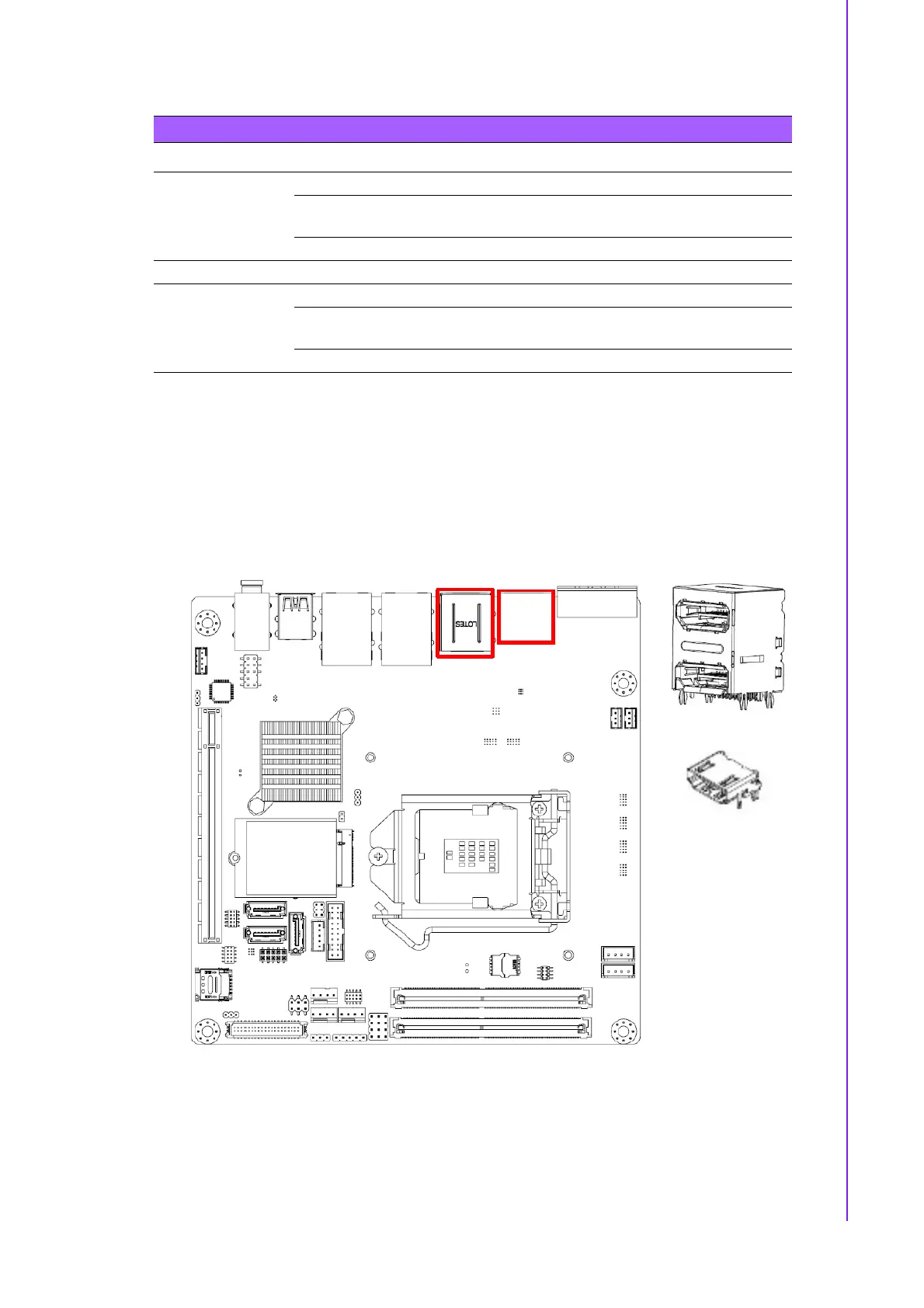

2.3 DisplayPort1/2 (DP12) / High-Definition
Multimedia Interface connector (HDMI1)
The AIMB-276 includes two DP and one HDMI connector, which can support DP and
HDMI outputs. Pin assignments for DP & HDMI are detailed in Appendix B.
Table 2.1: LAN LED Indicator
LAN Mode LAN Indicator
LAN1 indicator
LED1 (Right) off for mal-link; Link (On) / Active (Flash)
LED2 (Left)
100 Mbps (On) / 10 Mbps (Off);
Color: Orange (10/100 Mbps)
LED2 (Left) 1000 Mbps (On); Color: Green (1000 Mbps)
LAN2 indicator
LED1 (Right) off for mal-link; Link (On) / Active (Flash)
LED2 (Left)
100 Mbps (On) / 10 Mbps (Off);
Color: Orange (10/100 Mbps)
LED2 (Left) 1000 Mbps (On); Color: Green (1000 Mbps)
