AIMB-276 User Manual 90

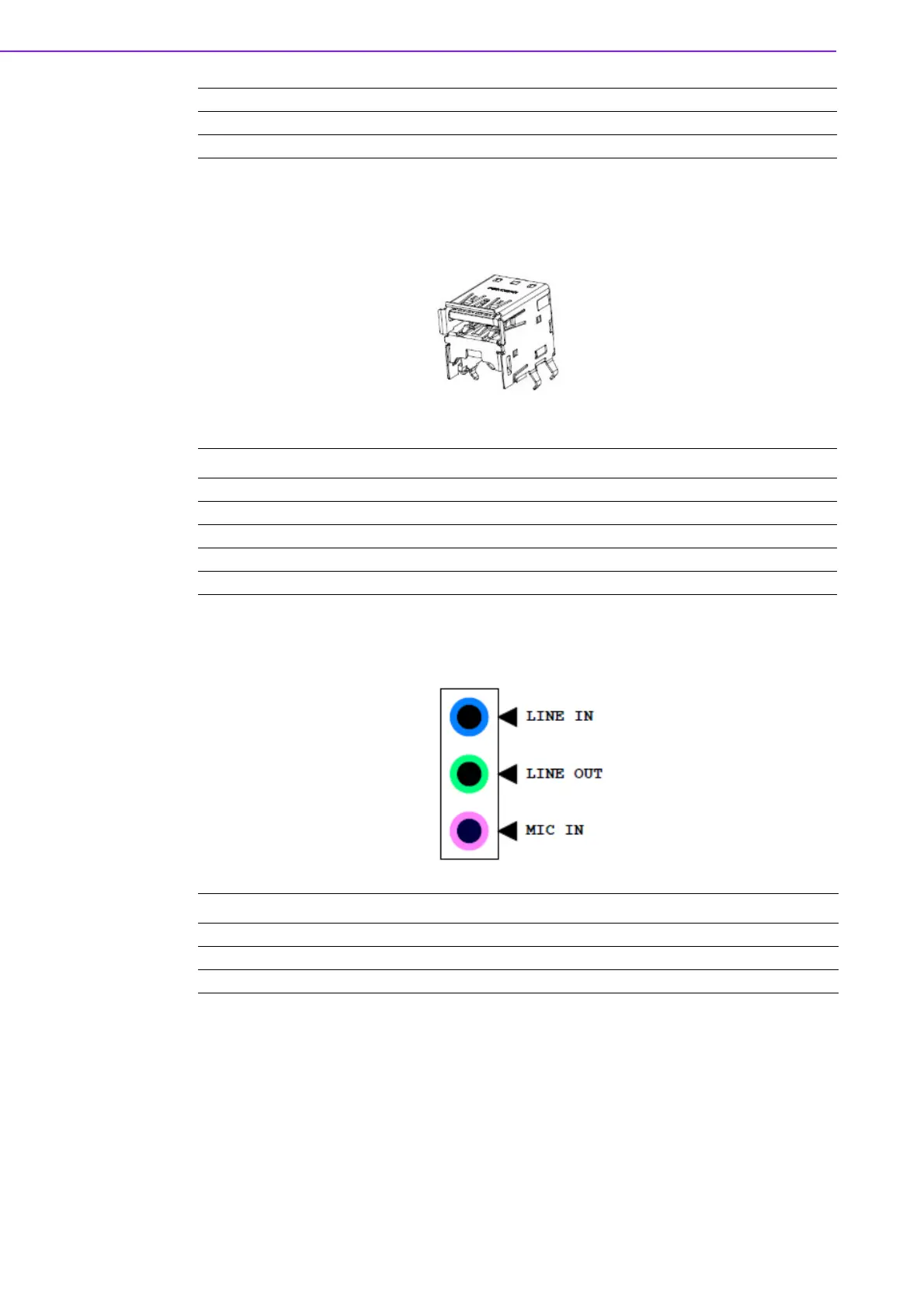

A.10 Universal Serial Bus Port 3.1 Gen2 #5 (USB5)
A.11 HD Audio Interface (Analog) (AUDIO1)
A10 USB31X6_z_RX2- B10 USB31X6_z_RX1-
A11 USB31X6_z_RX2+ B11 USB31X6_z_RX1+
A12 GND B12 GND
Pin Signal Pin Signal
1 +USBV5 6 USB31X5_z_RX+
2 USB_D5- 7 GND
3 USB_D5+ 8 USB31X5_z_TX-
4 GND 9 USB31X5_z_TX+
5 USB31X5_z_RX-
Pin Signal
1 MIC IN
2 LINE OUT
3 LINE IN
