23 AIMB-276 User Manual
Chapter 2 Connecting Peripherals

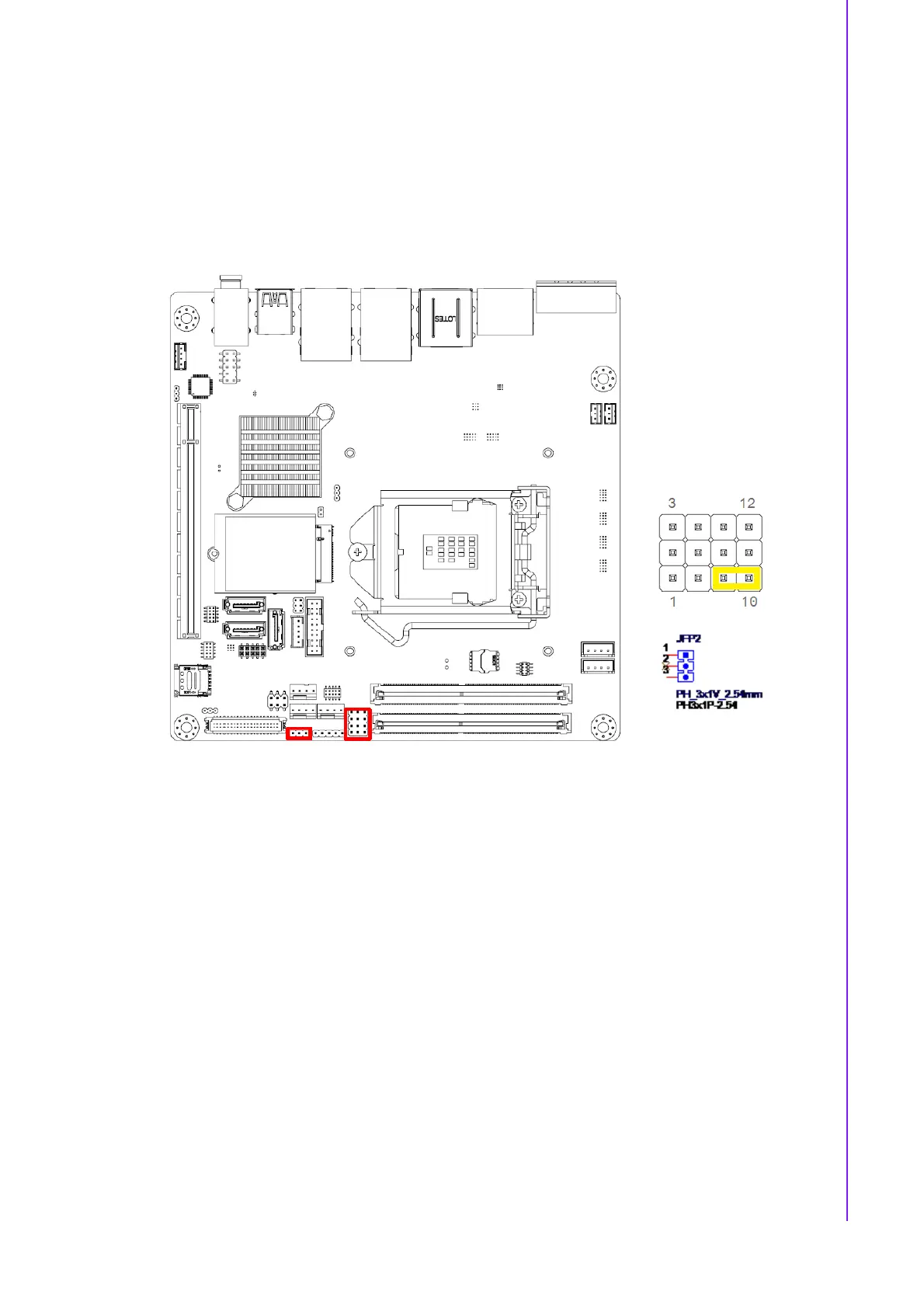

2.7 Power Switch/HDD LED/SMBUS/Speaker Pin
Header (JFP1) & Power LED and Keyboard Lock
Pin Header (JFP2)
There are several headers for monitoring and controlling the AIMB-276.
2.7.1 ATX soft power switch (JFP1/PWR_SW)
If your computer case is equipped with an ATX power supply, you should connect the
power on/off button on your computer case to (JFP1/ PWR_SW), for convenient
power on and off.
2.7.2 Reset (JFP1/RESET)
Many computer cases offer the convenience of a reset button. Connect the wire for
the reset button.
2.7.3 HDD LED (JFP1/HDDLED)
You can connect an LED to connector (JFP1/HDDLED) to indicate when the HDD is
active.
2.7.4 External speaker (JFP1/SPEAKER)
JFP1/SPEAKER is a 4-pin connector for an external speaker. If there is no external
speaker, the AIMB-276 provides an onboard buzzer as an alternative. To enable the
buzzer, set pins 7 & 10 as closed.
