Advantech AIMB-276 - Universal Serial Bus Port 3.1 Gen2 #3; #4 (USB34); Rj45 #2(Lan2); Universal Serial Bus Port 3.1 Gen2 #6 (Type-C) (USB6)

89 AIMB-276 User Manual
Appendix A I/O Pin Assignments

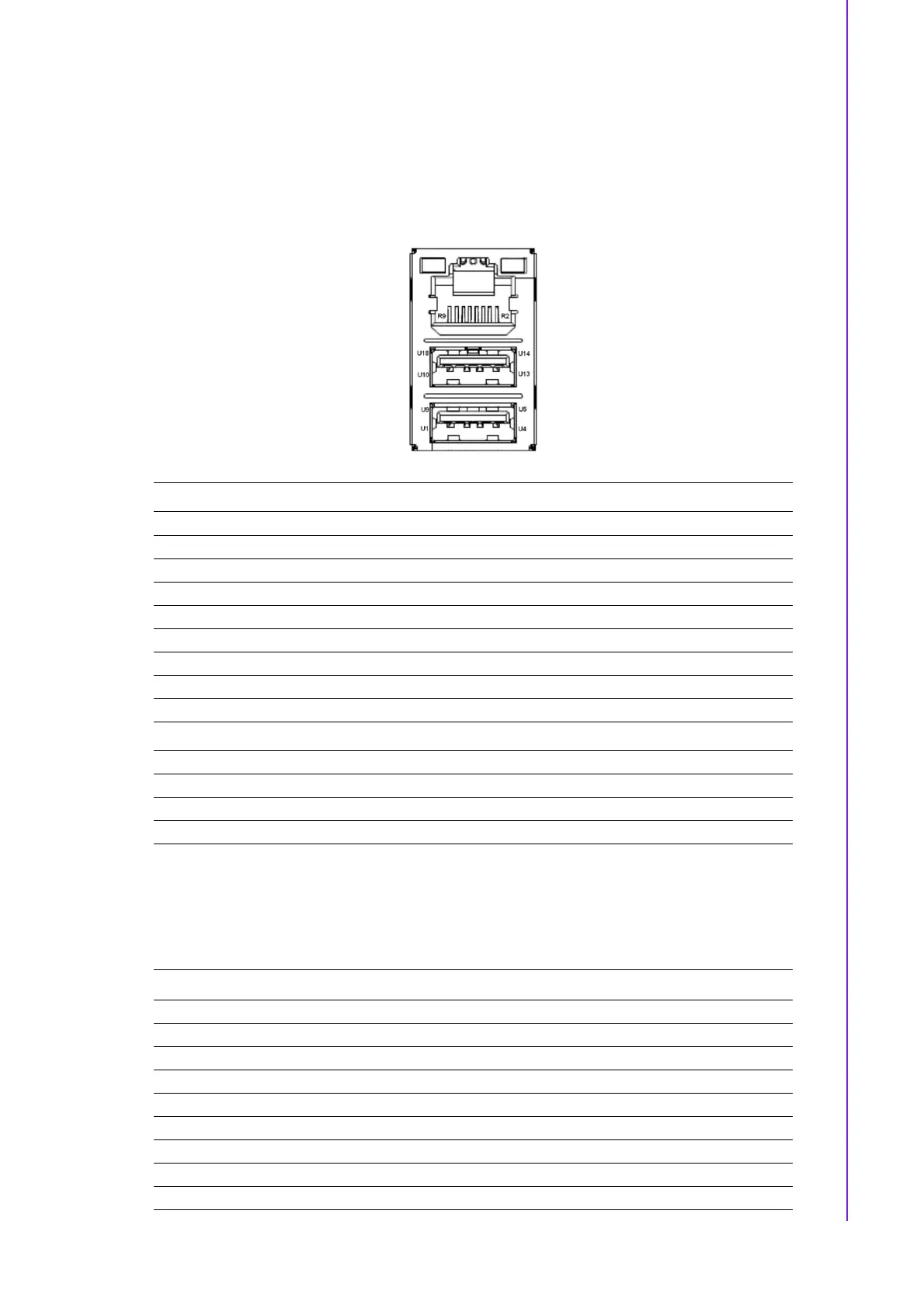

A.7 Universal Serial Bus Port 3.1 Gen2 #3/ #4
(USB34)
A.8 RJ45 #2(LAN2)
A.9 Universal Serial Bus Port 3.1 Gen2 #6 (Type-C)
(USB6)
Pin Signal Pin Signal
U1 +USBV2 U10 +USBV2
U2 USB_D3- U11 USB_D4-
U3 USB_D3+ U12 USB_D4+
U4 GND U13 GND
U5 USB31X3_z_RX- - U14 USB31X4_z_RX-
U6 USB31X3_z_RX+ U15 USB31X4_z_RX+
U7 GND U16 GND
U8 USB31X3_z_TX- U17 USB31X4_z_TX-
U9 USB31X3_z_TX+ U18 USB31X4_z_TX+
Pin Signal Pin Signal
R2 LAN2_MDI0+ R6 LAN2_MDI2+
R3 LAN2_MDI0- R7 LAN2_MDI2-
R4 LAN2_MDI1+ R8 LAN2_MDI3+
R5 LAN2_MDI1- R9 LAN2_MDI3-
Pin Signal Pin Signal
A1 GND B1 GND
A2 USB31X6_z_TX1+ B2 USB31X6_z_TX2+
A3 USB31X6_z_TX1- B3 USB31X6_z_TX2-
A4 +USBV6 B4 +USBV6
A5 PI5USB31213_CC1 B5 PI5USB31213_CC2
A6 USB_D6+ B6 USB_D6+
A7 USB_D6- B7 USB_D6-
A8 NC B8 NC
A9 +USBV6 B9 +USBV6
